Our three-phase/three-wire EMI filters can also be used with single-phase input.
The attenuation characteristics for both three-phase and single-phase operation (example: TAC-30‑683) are shown below, and there is no significant difference between them.
The rated input voltage of a three-phase EMI filter is AC 500 V, it can also be used with AC 100 V or AC 200 V input.

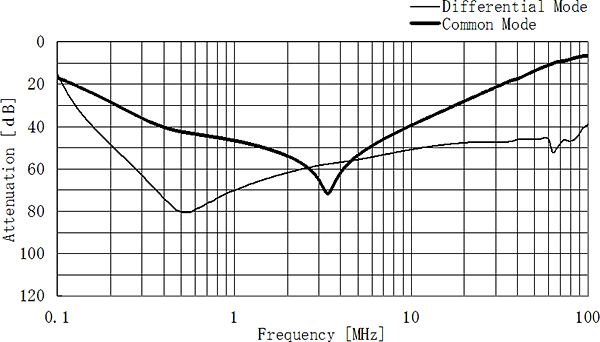

Three-phase input Attenuation Characteristics (Measurement diagram: See Fig.1 and Fig.2)

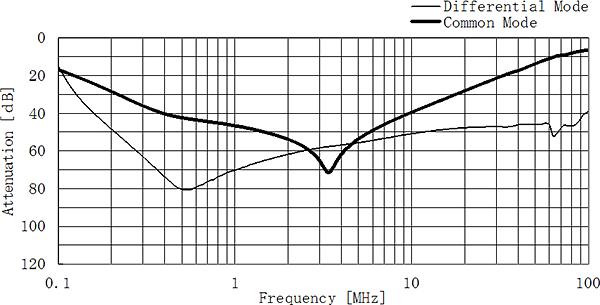

Single-phase input Attenuation Characteristics (Measurement diagram: See Fig.3 and Fig.4)

Please conduct sufficient testing in your equipment before use.

Three-phase input attenuation measurement diagram

Single-phase input attenuation measurement diagram
