AEA Series Switched Mode Power Supply

What Customers Want to Achieve

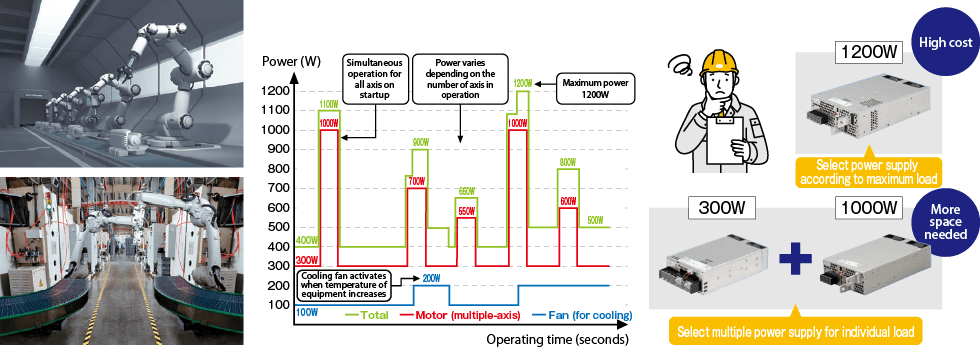

1.I want to select the optimal power supply for the maximum load

Should I select a 1200W-rated power supply, or use multiple power supplies to cover individual loads?


2.I want to design quieter medical equipment

High-wattage power supplies have a cooling fan, which causes noise issues.
Using multiple convection‑cooled power supplies would exceed the allowable leakage current.


Features of AEA Series

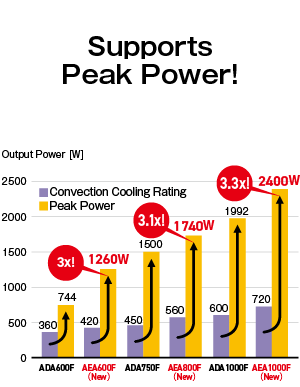

1. 3 Times Peak Output

2. Certified for Medical Safety Standard

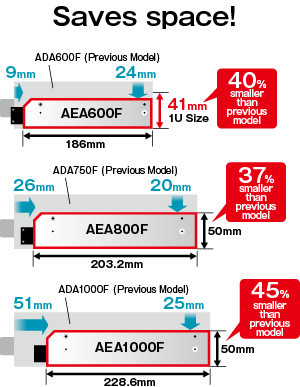

3. Compact Size

The AEA Series significantly increases peak output: 3 times the rated power. A fanless design eliminates fan noise and extends the product’s lifetime. Contributes to reduction of design workload and costs for the customer.

Other Uses

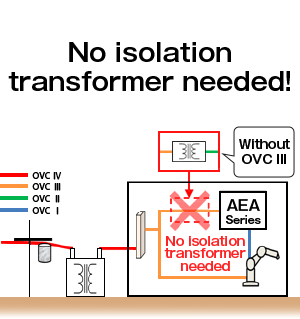

1. Supports Overvoltage Category III

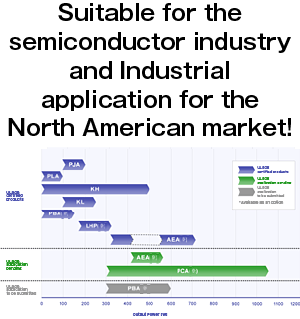

2. UL508 Certified *T5 option only

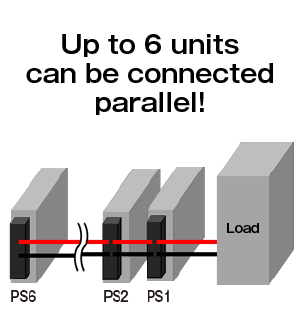

3. For Higher power

AEA Series Lineup

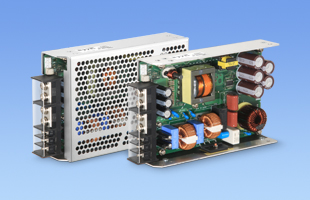

AEA600F

Model Output Power Output Voltage・Current
AEA600F-24 420W（peak:1260W）
ACIN230V natural air cooling
600W（peak:1260W）
ACIN230V forced ventilation 		24V 17.5A（peak:52.5A）
ACIN230V natural air cooling
24V 25.0A（peak:52.5A）
ACIN230V forced ventilation
AEA600F-32 422W（peak:1260W）
ACIN230V natural air cooling
601W（peak:1260W）
ACIN230V forced ventilation 		32V 13.2A（peak:39.4A）
ACIN230V natural air cooling
32V 18.8A（peak:39.4A）
ACIN230V forced ventilation
AEA600F-36 421.2W（peak:1260W）
ACIN230V natural air cooling
601W（peak:1260W）
ACIN230V forced ventilation 		36V 11.7A（peak:35.0A）
ACIN230V natural air cooling
36V 16.7A（peak:35.0A）
ACIN230V forced ventilation
AEA600F-48 422.4W（peak:1262W）
ACIN230V natural air cooling
600W（peak:1262W）
ACIN230V forced ventilation 		48V 8.8A（peak:26.3A）
ACIN230V natural air cooling
48V 12.5A（peak:26.3A）
ACIN230V forced ventilation

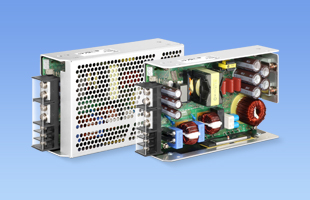

AEA800F

Model Output Power Output Voltage・Current
AEA800F-24 564W（peak:1740W）
ACIN230V natural air cooling
816W（peak:1740W）
ACIN230V forced ventilation 		24V 23.5A（peak:72.5A）
ACIN230V natural air cooling
24V 34.0A（peak:72.5A）
ACIN230V forced ventilation
AEA800F-30 564W（peak:1740W）
ACIN230V natural air cooling
816W（peak:1740W）
ACIN230V forced ventilation 		30V 18.8A（peak:58.0A）
ACIN230V natural air cooling
30V 27.2A（peak:58.0A）
ACIN230V forced ventilation
AEA800F-36 565.2W（peak:1742W）
ACIN230V natural air cooling
817W（peak:1742W）
ACIN230V forced ventilation 		36V 15.7A（peak:48.4A）
ACIN230V natural air cooling
36V 22.7A（peak:48.4A）
ACIN230V forced ventilation
AEA800F-48 566.4W（peak:1742W）
ACIN230V natural air cooling
816W（peak:1742W）
ACIN230V forced ventilation 		48V 11.8A（peak:36.3A）
ACIN230V natural air cooling
48V 17.0A（peak:36.3A）
ACIN230V forced ventilation

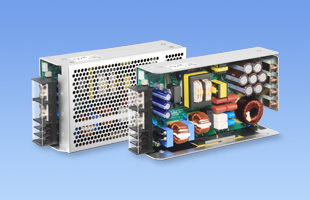

AEA1000F

Model Output Power Output Voltage・Current
AEA1000F-24 720W（peak:2400W）
ACIN230V natural air cooling
1008W（peak:2400W）
ACIN230V forced ventilation 		24V 30.0A（peak:100A）
ACIN230V natural air cooling
24V 42.0A（peak:100A）
ACIN230V forced ventilation
AEA1000F-36 720W（peak:2401W）
ACIN230V natural air cooling
1008W（peak:2401W）
ACIN230V forced ventilation 		36V 20.0A（peak:66.7A）
ACIN230V natural air cooling
36V 28.0A（peak:66.7A）
ACIN230V forced ventilation
AEA1000F-48 720W（peak:2400W）
ACIN230V natural air cooling
1008W（peak:2400W）
ACIN230V forced ventilation 		48V 15.0A（peak:50.0A）
ACIN230V natural air cooling
48V 21.0A（peak:50.0A）
ACIN230V forced ventilation
