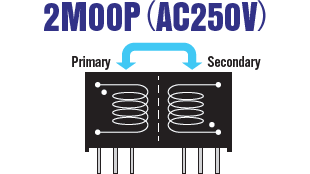

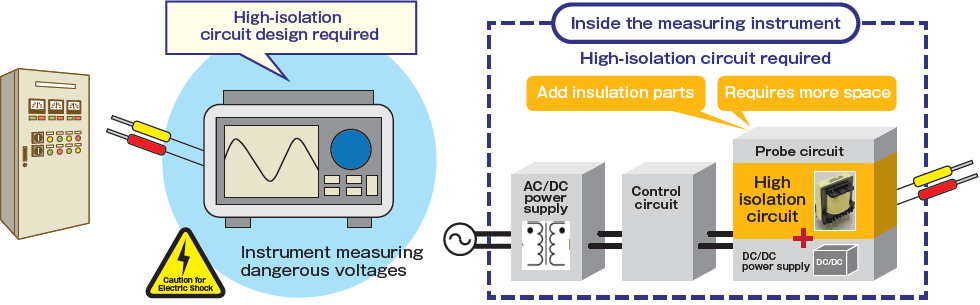

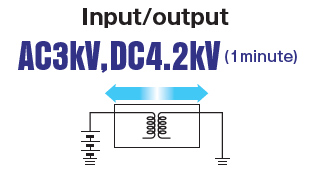

A high level of isolation is required to prevent electric shock in measuring instruments that handle dangerous voltages, such as those found in distribution panel.

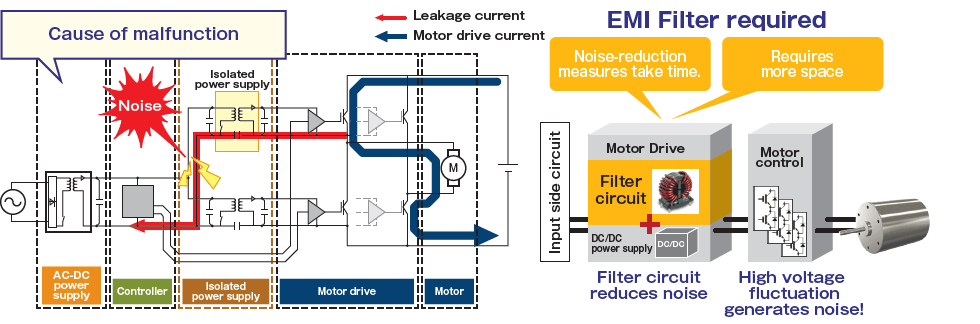

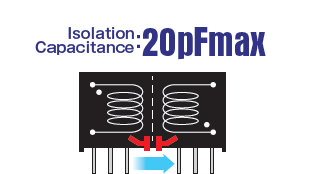

Noise current through the coupling capacitance of the isolated power supply must be suppressed.

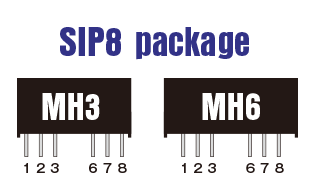

MH Series Lineup
MHFS3
| Model | Power Output | Output Voltage・Current |
|---|---|---|
| MHFS3123R3 | 2.64W | 3.3V 0.8A |
| MHFS31205 | 3W | 5V 0.6A |
| MHFS31209 | 2.97W | 9V 0.33A |
| MHFS31212 | 3W | 12V 0.25A |
| MHFS31215 | 3W | 15V 0.2A |
| MHFS3243R3 | 2.64W | 3.3V 0.8A |

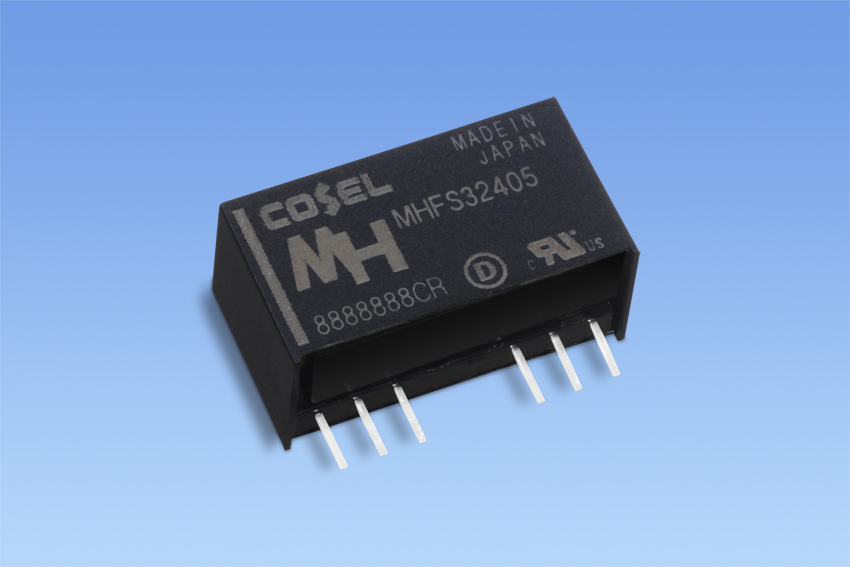

| MHFS32405 | 3W | 5V 0.6A |
| MHFS32409 | 2.97W | 9V 0.33A |
| MHFS32412 | 3W | 12V 0.25A |
| MHFS32415 | 3W | 15V 0.2A |
| MHFS3483R3 | 2.64W | 3.3V 0.8A |
| MHFS34805 | 3W | 5V 0.6A |
| MHFS34809 | 2.97W | 9V 0.33A |
| MHFS34812 | 3W | 12V 0.25A |
| MHFS34815 | 3W | 15V 0.2A |

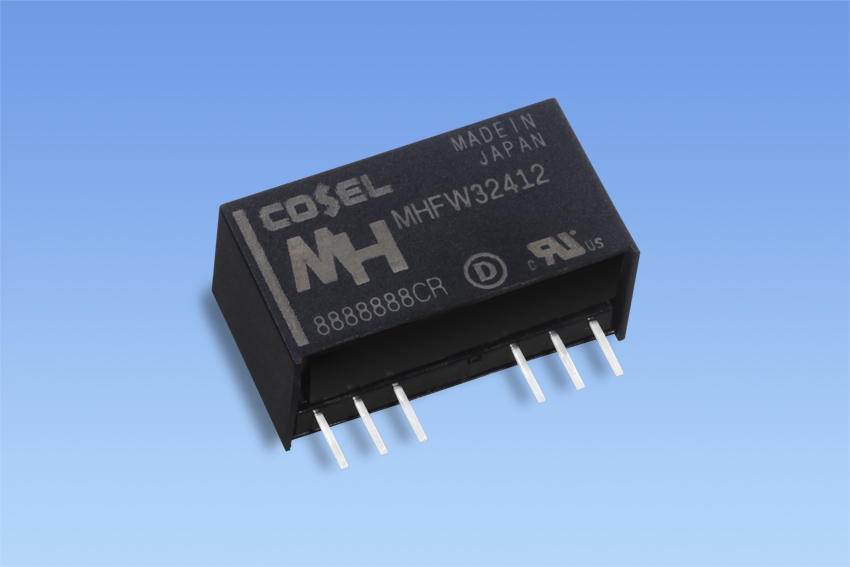

MHFW3
| Model | Power Output | Output Voltage・Current |
|---|---|---|
| MHFW31212 | 3.12W | ±12V（+24V） 0.13A |
| MHFW31215 | 3W | ±15V（+30V） 0.1A |
| MHFW32412 | 3.12W | ±12V（+24V） 0.13A |
| MHFW32415 | 3W | ±15V（+30V） 0.1A |
| MHFW34812 | 3.12W | ±12V（+24V） 0.13A |
| MHFW34815 | 3W | ±15V（+30V） 0.1A |

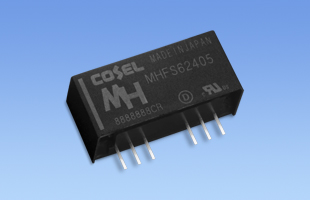

MHFS6
| Model | Power Output | Output Voltage・Current |
|---|---|---|
| MHFS6123R3 | 5.28W | 3.3V 1.6A |
| MHFS61205 | 6W | 5V 1.2A |
| MHFS61209 | 5.94W | 9V 0.66A |
| MHFS61212 | 6W | 12V 0.5A |
| MHFS61215 | 6W | 15V 0.4A |
| MHFS6243R3 | 5.28W | 3.3V 1.6A |
| MHFS62405 | 6W | 5V 1.2A |
| MHFS62409 | 5.94W | 9V 0.66A |
| MHFS62412 | 6W | 12V 0.5A |
| MHFS62415 | 6W | 15V 0.4A |
| MHFS6483R3 | 5.28W | 3.3V 1.6A |
| MHFS64805 | 6W | 5V 1.2A |
| MHFS64809 | 5.94W | 9V 0.66A |
| MHFS64812 | 6W | 12V 0.5A |
| MHFS64815 | 6W | 15V 0.4A |

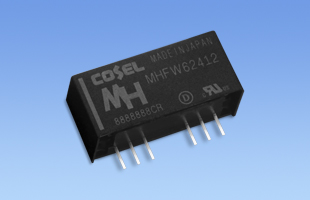

MHFW6
| Model | Power Output | Output Voltage・Current |
|---|---|---|
| MHFW61212 | 6W | ±12V（+24V） 0.25A |
| MHFW61215 | 6W | ±15V（+30V） 0.2A |
| MHFW62412 | 6W | ±12V（+24V） 0.25A |
| MHFW62415 | 6W | ±15V（+30V） 0.2A |
| MHFW64812 | 6W | ±12V（+24V） 0.25A |
| MHFW64815 | 6W | ±15V（+30V） 0.2A |
