Q&A(FAQ) Show DC-DC converter application circuit.
1.Input Voltage for DC/DC converter
(1) When using AC/DC power supply
(2) When using AC voltage source
(3) When using a Battery-operated Device
2.Using DC/DC converter
(1) When a Floating Mechanism is Required for Output Circuit
(2) To obtain a reverse‑polarity output
(3) To provide a negative voltage to -Vin by using +Vin side of the converter as GND potential (0V)
(4) To obtain the sum of the input voltage and positive output voltage
3.Using a Dual Output Type
1. Input Voltage for DC/DC converter
(1) When using AC/DC power supply

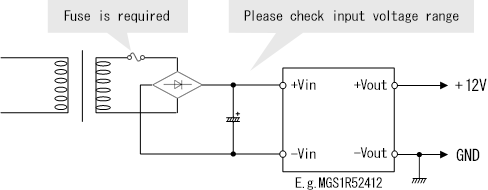

(2) When using AC voltage source

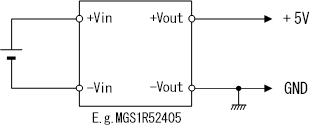

(3) When using a Battery-operated Device
2. Using DC/DC converter

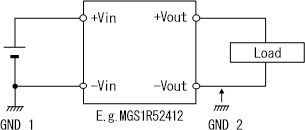

(1) When a Floating Mechanism is Required for Output Circuit

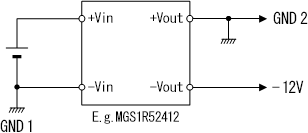

(2) To obtain a reverse‑polarity output

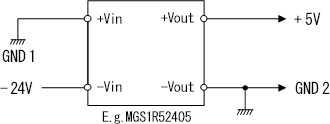

(3) To provide a negative voltage to -Vin by using +Vin side of the converter as GND potential (0V)

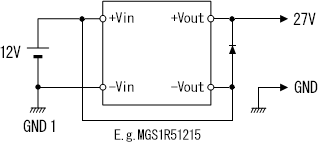

(4) To obtain the sum of the input voltage and positive output voltage
- The output current must be lower than the rated current.
- Total Output voltage regulation is sum of input voltage regulation and output voltage regulation.
- If the output voltage is shorted, a large current may flow depending on the input voltage source.
3. Using Dual Output Type

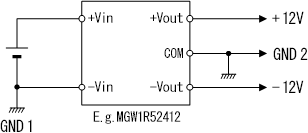

(1) Using dual output type

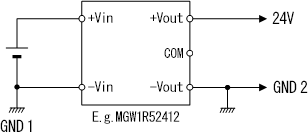

(2) Using ±12V as 24V output

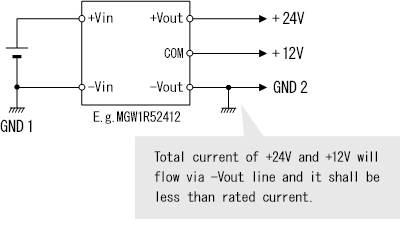

(3) Using ±12 V as multiple outputs: +12 V and +24 V

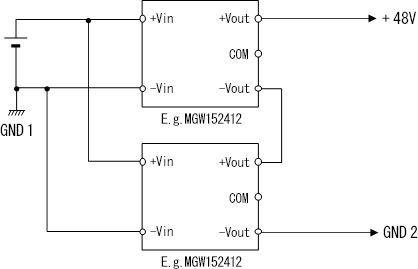

(4) Using as 48V output
