Single phase 250VAC 10A
Compact size
Low leakage current type
1-stage filter
• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
*Obtained in combination with the breaker
• Push down type terminal block
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
EAM(1) - 10(2) - 000(3) - □(4)
(1) Model Name
(2) Rated Current

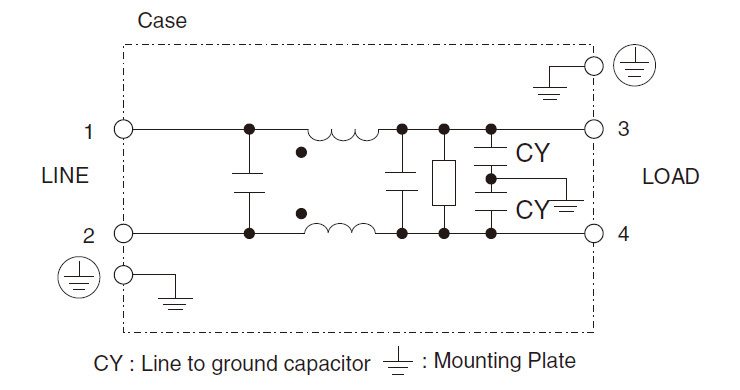

(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Options

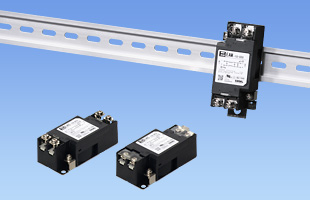

D:DIN rail installation type
* The dimensions change when the option is set. Refer to External view.
