EAP series

EAP-10

  • Active
  • UL1283
  • CSA C22.2 No.8 (C-UL)
  • DIN EN60939 VDE0565 Teil 3-1
  • ENEC (AC input only)
  • RoHS
    UL・C-UL
    VDE
    ENEC

Single phase 250VAC 10A
Compact size
Outside impulse attenuation type
1-stage filter

• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
   *Obtained in combination with the breaker

• Push down type terminal block

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data DXF Standard Model
3D CAD data STEP Standard Model
IGES Standard Model

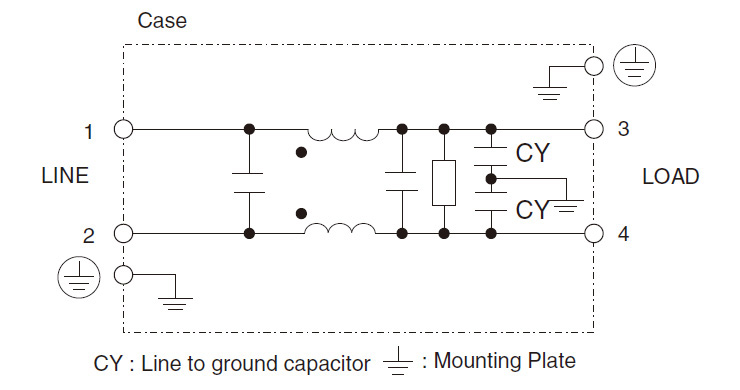

Circuit diagram

/tool/tag/fig/e_cir_eap-10.jpg

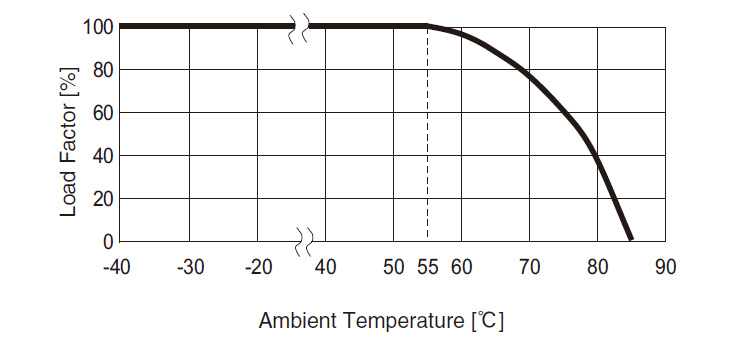

Derating characteristics

/tool/tag/fig/e_der_eap-10.jpg

EAP(1)  -  10(2)  -  472(3)  -  □(4)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

Catalog download

EAP-10 specifications (overview)

Product EAP-10-000 EAP-10-101 EAP-10-221 EAP-10-331 EAP-10-471 EAP-10-681 EAP-10-102 EAP-10-222 EAP-10-332 EAP-10-472
leakage current※ 5μA/10μA max 12.5μA/25μA max 25μA/50μA max 37.5μA/75μA max 50μA/100μA max 75.5μA/150μA max 0.13mA/0.25mA max 0.25mA/0.5mA max 0.38mA/0.75mA max 0.5mA/1.0mA max
Capacitor capacity (nominal value) Not Provided 100pF 220pF 330pF 470pF 680pF 1,000pF 2,200pF 3,300pF 4,700pF
Rated voltage

AC 1 φ 250V/DC250V
Rated current

10A
Safety Certifications

UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (AC input only)
External dimensions
(W×H×D)

39x30x85 mm [1.54x1.18x3.35 inches] (Option: -D refer to external view)
Technical data Characteristic data
Safety Standards Certification
Reliability
MTBF

* Input 125/250VAC 60Hz
