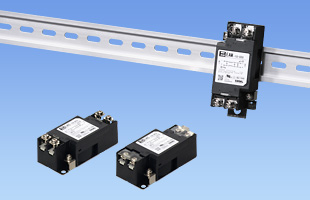

EAP-20

EAP series

Active
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC (AC input only)

Single phase 250VAC 20A
Compact size
Outside impulse attenuation type
1-stage filter

• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
*Obtained in combination with the breaker

• Push down type terminal block

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

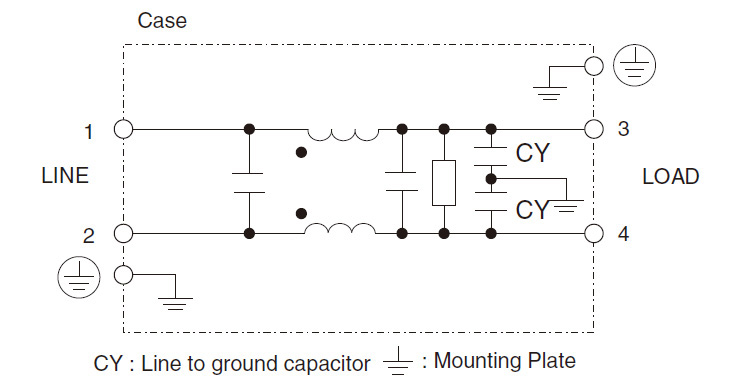

Circuit diagram

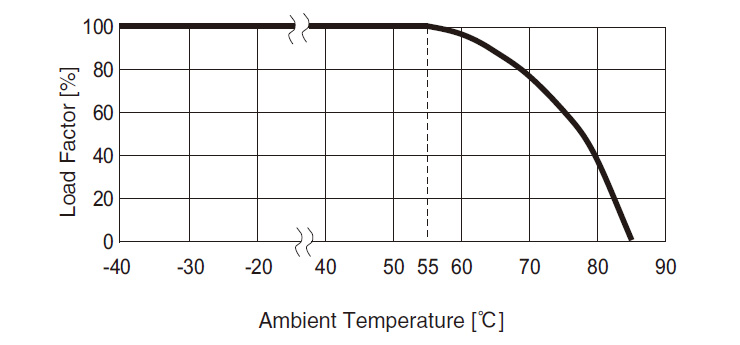

Derating characteristics

EAP⁽¹⁾ - 20⁽²⁾ - 472⁽³⁾ - □⁽⁴⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

Catalog download

EAP-20 specifications (overview)

Product		EAP-20-000	EAP-20-101	EAP-20-221	EAP-20-331	EAP-20-471	EAP-20-681	EAP-20-102	EAP-20-222	EAP-20-332	EAP-20-472
leakage current^※		5μA/10μA max	12.5μA/25μA max	25μA/50μA max	37.5μA/75μA max	50μA/100μA max	75.5μA/150μA max	0.13mA/0.25mA max	0.25mA/0.5mA max	0.38mA/0.75mA max	0.5mA/1.0mA max
Capacitor capacity (nominal value)		Not Provided	100pF	220pF	330pF	470pF	680pF	1,000pF	2,200pF	3,300pF	4,700pF
Rated voltage		AC 1 φ 250V/DC250V
Rated current		20A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (AC input only)
External dimensions (W×H×D)		39x30x85 mm [1.54x1.18x3.35 inches] (Option: -D refer to external view)
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 125/250VAC 60Hz
