ESM series

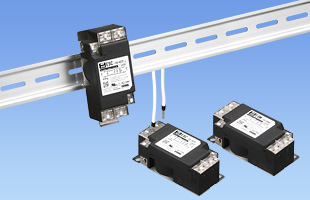

ESM-16

  • Active
  • UL1283
  • CSA C22.2 No.8 (C-UL)
  • DIN EN60939 VDE0565 Teil 3-1
  • ENEC (AC input only)
  • RoHS
    UL・C-UL
    VDE
    ENEC

Single phase 250VAC　16A
Compact size
Low leakage current type
Screwless terminal type
1-stage filter

• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
   *Obtained in combination with the breaker

• Torque management is unnecessary with screwless

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data DXF Standard Model
3D CAD data STEP Standard Model
IGES Standard Model

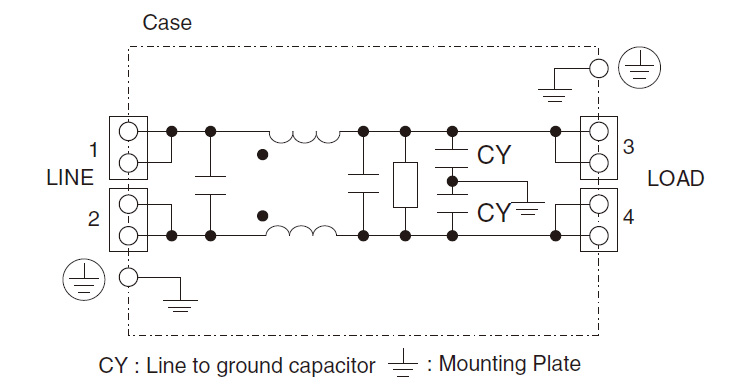

Circuit diagram

/tool/tag/fig/e_cir_esm-16.jpg

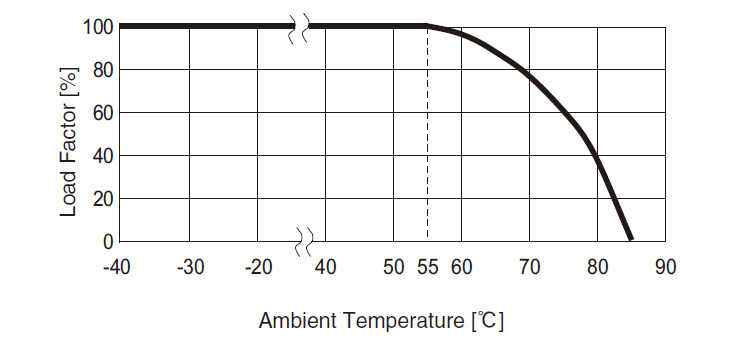

Derating characteristics

/tool/tag/fig/e_der_esm-16.jpg

ESM(1)  -  16(2)  -  000(3)  -  □(4)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

Catalog download

ESM-16 specifications (overview)

Product ESM-16-000 ESM-16-101 ESM-16-221 ESM-16-331 ESM-16-471
leakage current※ 5μA/10μA max 12.5μA/25μA max 25μA/50μA max 37.5μA/75μA max 50μA/100μA max
Capacitor capacity (nominal value) Not Provided 100pF 220pF 330pF 470pF
Rated voltage

AC 1 φ 250V/DC250V
Rated current

16A
Safety Certifications

UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (AC input only)
External dimensions
(W×H×D)

39x30x85 mm [1.54x1.18x3.35 inches] (Option: -D refer to external view)
Technical data Characteristic data
Safety Standards Certification
Reliability
MTBF

* Input 125/250VAC 60Hz
