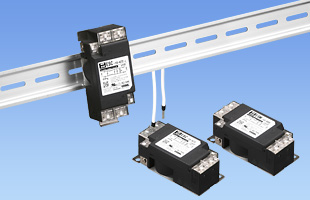

ESP-03

ESP series

ESP-03
ESP-06
ESP-10
ESP-16

Active
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC (AC input only)

Single phase 250VAC 3A
Compact size
Outside impulse attenuation type
Screwless terminal type　
1-stage filter

• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
*Obtained in combination with the breaker

• Torque management is unnecessary with screwless

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

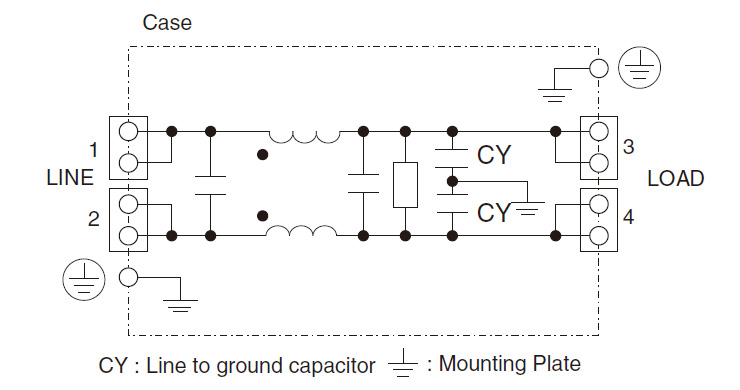

Circuit diagram

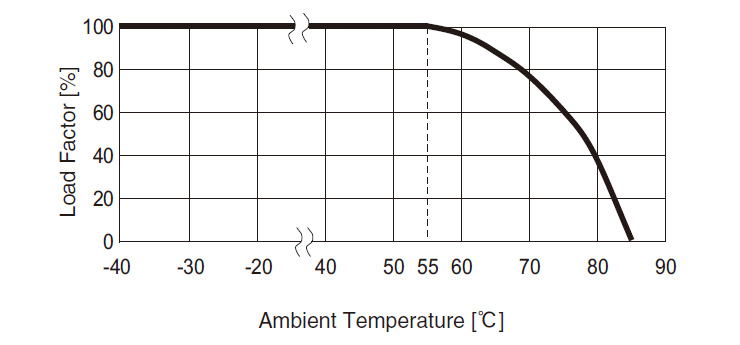

Derating characteristics

ESP⁽¹⁾ - 03⁽²⁾ - 472⁽³⁾ - □⁽⁴⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

Catalog download

ESP-03 specifications (overview)

Product		ESP-03-000	ESP-03-101	ESP-03-221	ESP-03-331	ESP-03-471	ESP-03-681	ESP-03-102	ESP-03-222	ESP-03-332	ESP-03-472
leakage current^※		5μA/10μA max	12.5μA/25μA max	25μA/50μA max	37.5μA/75μA max	50μA/100μA max	75.5μA/150μA max	0.13mA/0.25mA max	0.25mA/0.5mA max	0.38mA/0.75mA max	0.5mA/1.0mA max
Capacitor capacity (nominal value)		Not Provided	100pF	220pF	330pF	470pF	680pF	1,000pF	2,200pF	3,300pF	4,700pF
Rated voltage		AC 1 φ 250V/DC250V
Rated current		3A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (AC input only)
External dimensions (W×H×D)		39x30x85 mm [1.54x1.18x3.35 inches] (Option: -D refer to external view)
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 125/250VAC 60Hz
