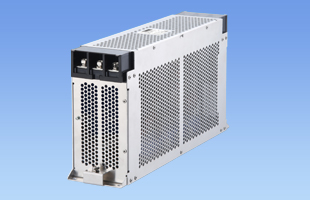

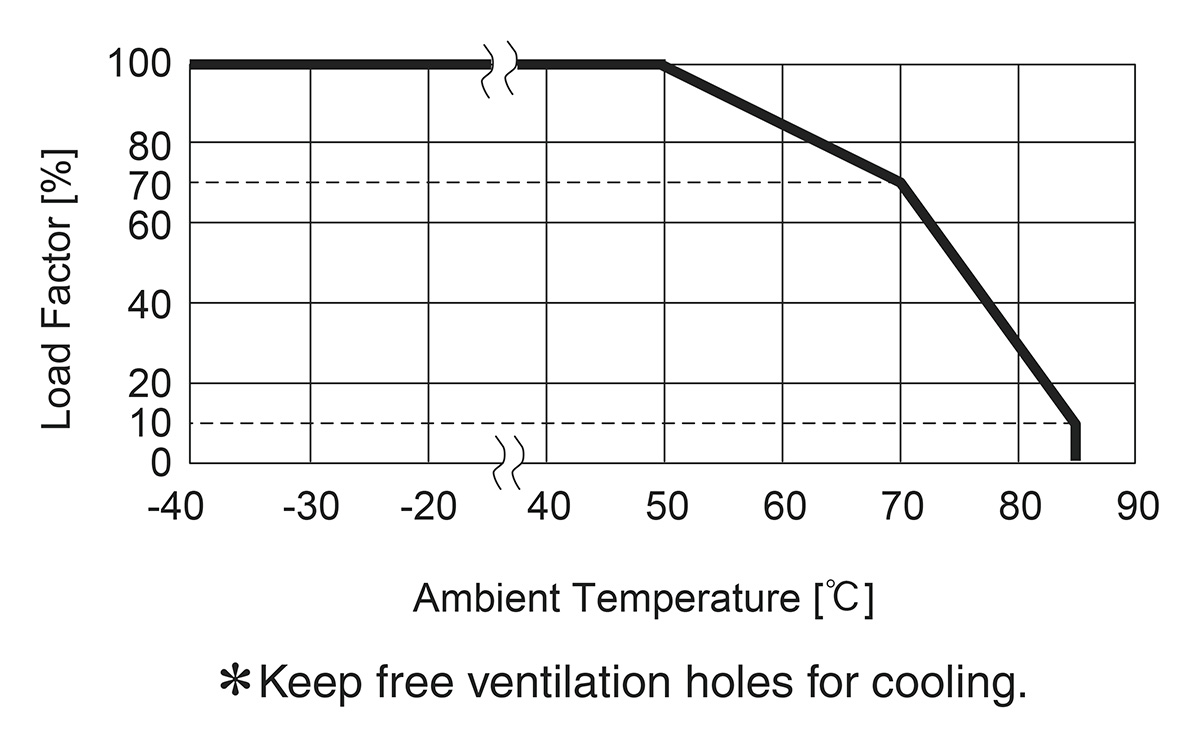

Three-phase 500VAC 150A
Book type
EMI/EMC Filter for motor drive system
2-stage filter
• Products meeting SCCR
10-60A rated SCCR: 14kA (UL 508 compliant)
80-150A rated SCCR: 25kA (UL 508 compliant)
*Obtained in combination with the breaker
• Push down type terminal block (10-30A rated)
♦Ideal options for various noise‑reduction requirements♦
H: Ultra low-frequency and ultra high attenuation (with a high‑permeability choke coil)
U: lmprove differential mode attenuation (Rated voltage 250V)
♦Recommended options for improved workability♦
S: Hexagon socket head cap screw (80-150A rated)
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
FSB(1) - 150(2) - 324(3) - □(4)
(1) Model Name
(2) Rated Current

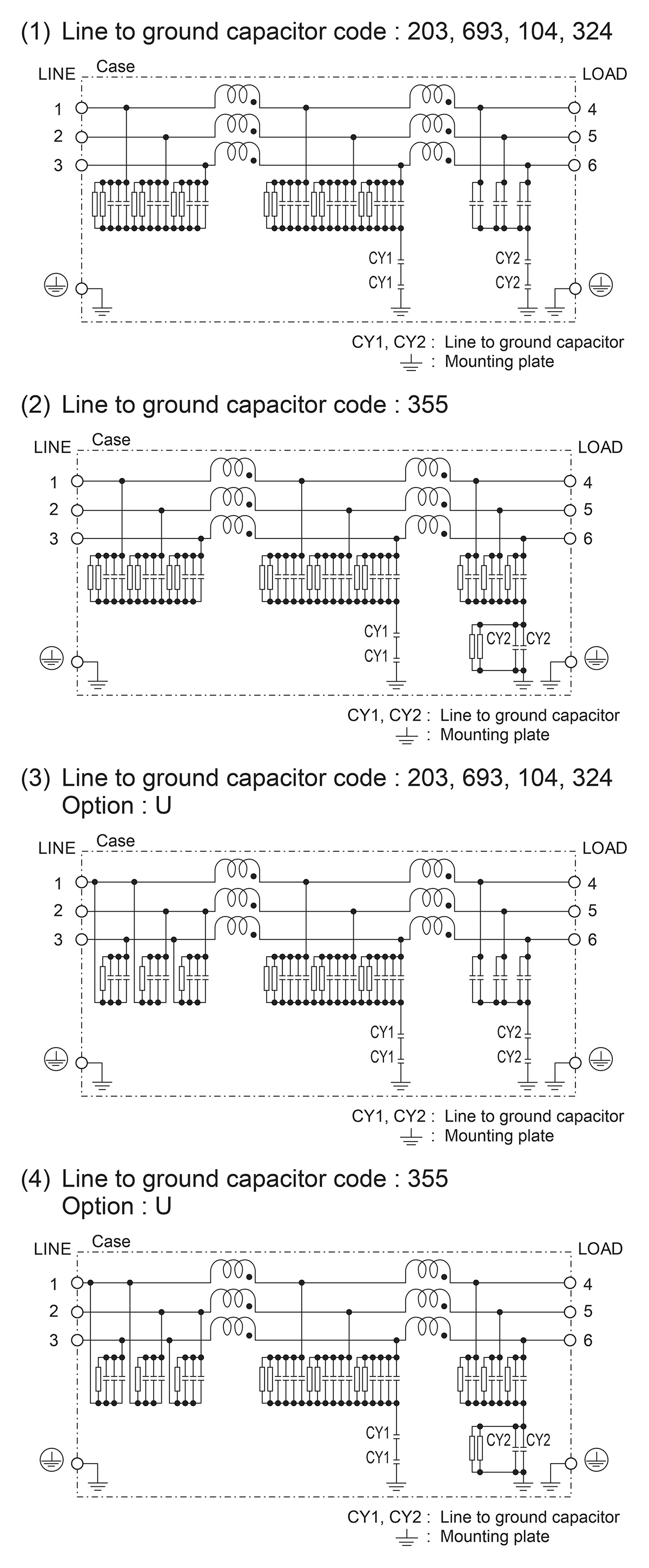

(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Option
H:Ultra high-attenuation type
355 is not applied.
S:Hexagon socket head cap screw (Standard type is Hexagon head screw)
U:Improve differential mode attenuation (Rated voltage 250V)
* Input 250/500VAC 60Hz ( input Δ-connection 250/400VAC 60Hz in case of 355)
Upper row: Δ-connection, Lower row: Y-connection
