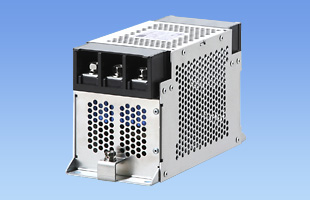

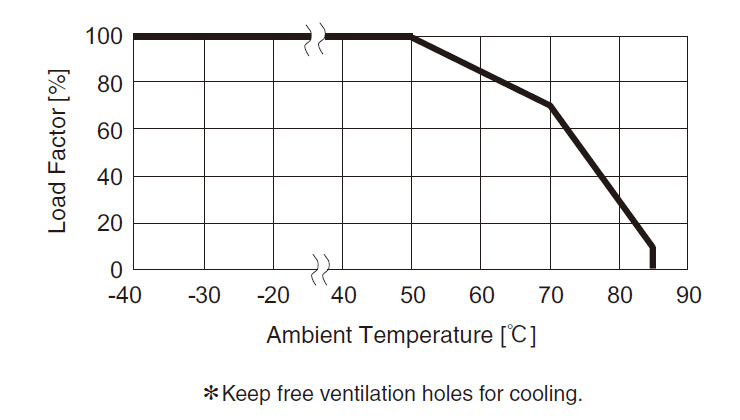

Three-phase 500VAC 100A
General-purpose Book type
High-attenuation from 150kHz to 1MHz
1-stage filter
• Products meeting SCCR
40-125A rated SCCR: 10kA (UL 508 compliant)
*Obtained in combination with the breaker
150A rated SCCR: 10kA (Deemed value of UL508A)
♦Ideal options for various noise‑reduction requirements♦
H: Ultra low-frequency and ultra high attenuation (with a high‑permeability choke coil)
U: lmprove differential mode attenuation (Rated voltage 250V)
♦Recommended options for improved workability♦
S: Hexagon socket head cap screw (80-150A rated)
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
FTA(1) - 100(2) - 683(3) - □(4)
(1) Model Name
(2) Rated Current

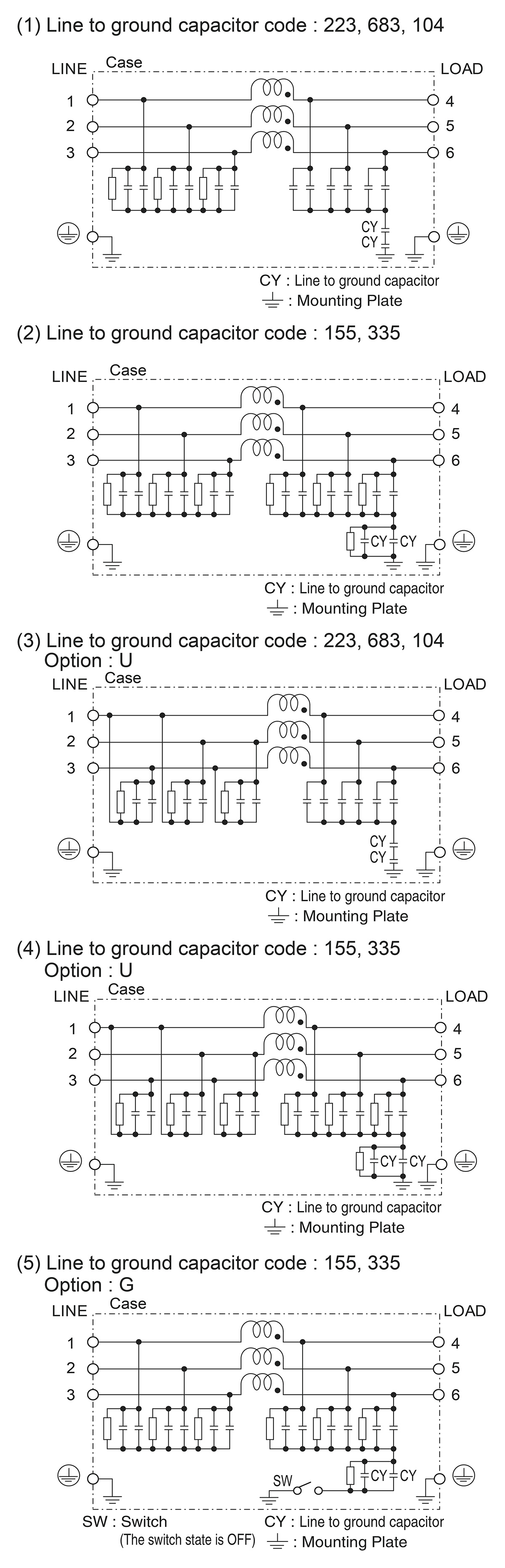

(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Option
H:Ultra high attenuation type
155, 335 is not applied.
S:Hexagon socket head cap screw (Standard type is Hexagon head screw)
U:lmprove differential mode attenuation (Rated voltage 250V)
G:With switch of line to ground capacitor
Only 155, 335 is applied.
* Leakage current
155 : Switch state is ON (switched to “｜”) 160mA/250mA max
Switch state is OFF (switched to “○”) 50μA/80μA max
335 : Switch state is ON (switched to “｜”) 320mA/500mA max
Switch state is OFF (switched to “○”) 50μA/80μA max
* Input 250/500VAC 60Hz ( input 250/400VAC 60Hz in case of 155 and 335)
