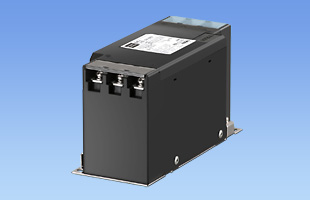

FTA-40

FTA series

Recommended products
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC

Three-phase 500VAC 40A
General-purpose Book type
High-attenuation from 150kHz to 1MHz
1-stage filter

• Products meeting SCCR
40-125A rated SCCR: 10kA (UL 508 compliant)
*Obtained in combination with the breaker
150A rated SCCR: 10kA (Deemed value of UL508A)

♦Ideal options for various noise‑reduction requirements♦
H: Ultra low-frequency and ultra high attenuation (with a high‑permeability choke coil)
U: lmprove differential mode attenuation (Rated voltage 250V)

♦Recommended options for improved workability♦
S: Hexagon socket head cap screw (80-150A rated)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

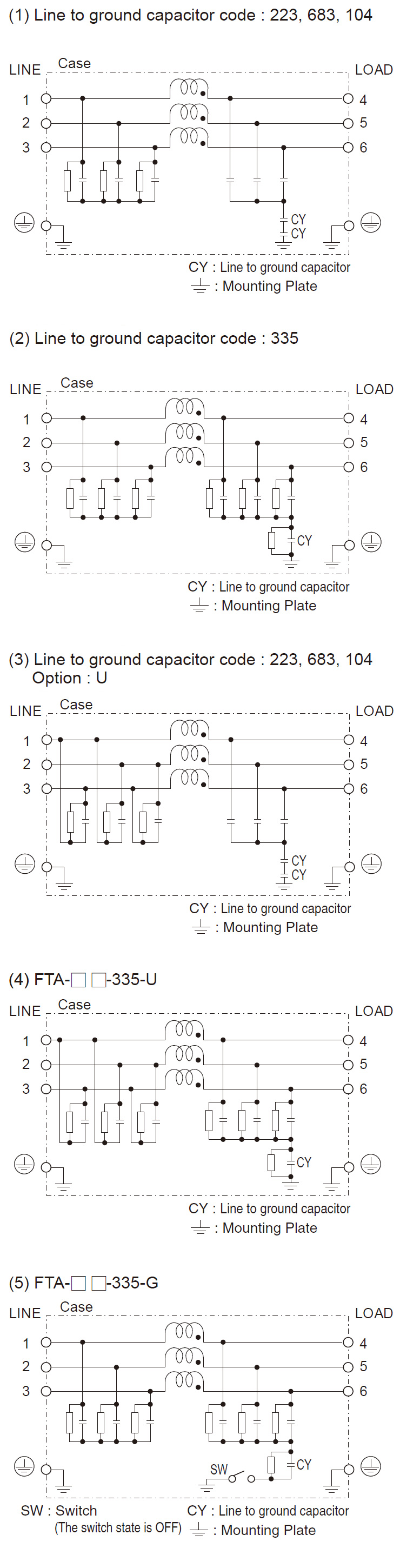

Circuit diagram

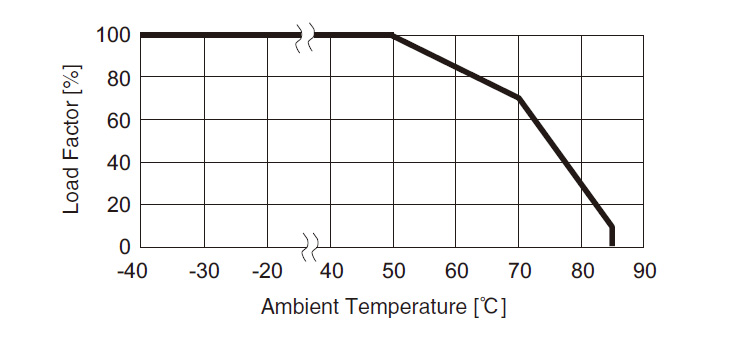

Derating characteristics

FTA⁽¹⁾ - 40⁽²⁾ - 683⁽³⁾ - □⁽⁴⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Option
  H:Ultra high attenuation type
    335 is not applied.
  U:lmprove differential mode attenuation (Rated voltage 250V)
  G:With switch of line to ground capacitor
    Only 335 is applied.
    * Leakage current
        Switch state is ON (switched to “｜”) 160mA/250mA max
        Switch state is OFF (switched to “○”) 10μA/16μA max

Catalog download

FTA-40 specifications (overview)

Product		FTA-40-223	FTA-40-683	FTA-40-104	FTA-40-335
leakage current^※		1.0mA/2.0mA max	2.5mA/5.0mA max	3.5mA/7.0mA max	160mA/250mA max
Capacitor capacity (nominal value)		22,000pF	68,000pF	100,000pF	3.3μF
Rated voltage		Three-phase Three-wire 500V 50/60Hz
Rated current		40A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions (W×H×D)		65x84x153 mm [2.56x3.31x6.02 inches] (Option: -G refer to external view)
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF
