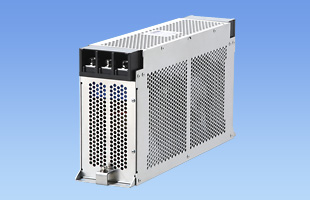

Three-phase 500VAC 150A Book type
High-attenuation from 150kHz to 1MHz
2-stage filter
• Products meeting SCCR SCCR: 25kA (UL 508 compliant)
*Obtained in combination with the breaker
♦Ideal options for various noise‑reduction requirements♦
H: Ultra low-frequency and ultra high attenuation (with a high‑permeability choke coil)
♦Recommended options for improved workability♦
S: Hexagon socket head cap screw
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
FTB(1) - 150(2) - 663(3) - □(4)
(1) Model Name
(2) Rated Current

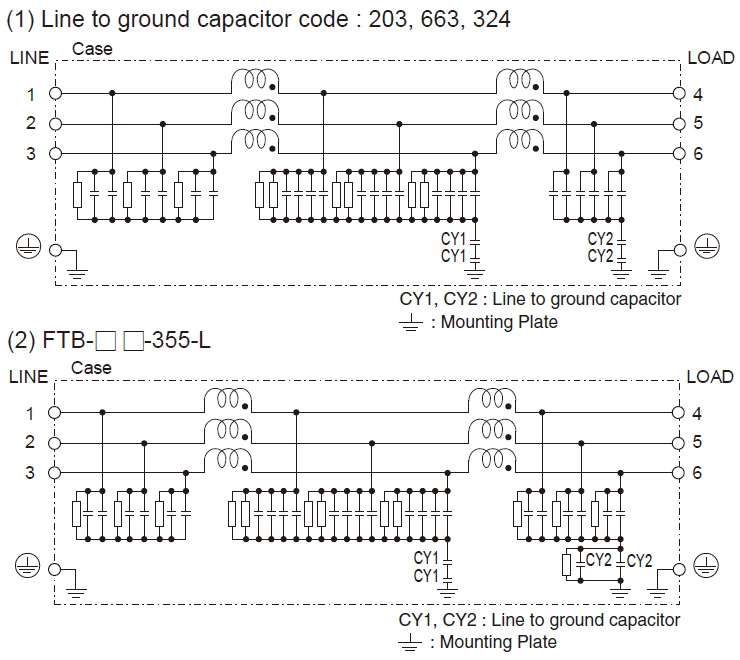

(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Option
H:Ultra high-attenuation type
355 is not applied.
S:Hexagon socket head cap screw (Standard type is Hexagon head screw)
L:Ultra high-attenuation type for EU

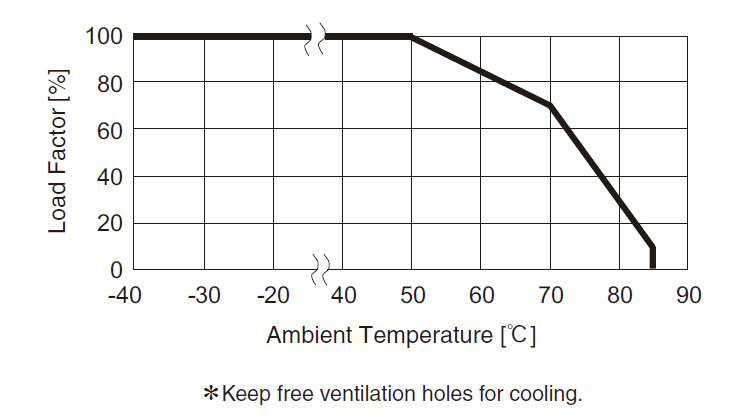

* Input 250/500VAC 60Hz ( input Δ-connection 250/400VAC 60Hz in case of 355)
Upper row: Δ-connection, Lower row: Y-connection
