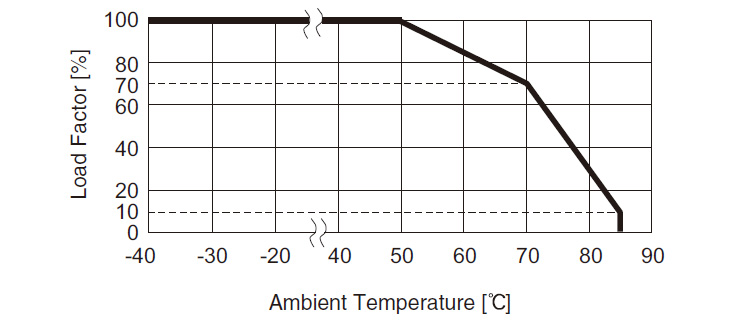

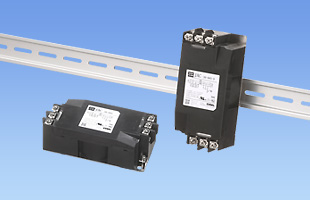

Three-phase 500VAC 30A
Compact and low profile
High-attenuation from 150kHz to 1MHz
1-stage filter
• Products meeting SCCR
6-30A rated SCCR: 10kA (UL 508 compliant)
40-60A rated SCCR: 14kA (UL 508 compliant)
*Obtained in combination with the breaker
• Push down type terminal block (6-30A rated)
♦Ideal options for various noise‑reduction requirements♦
H: Ultra low-frequency and ultra high attenuation (with a high‑permeability choke coil)
U: lmprove differential mode attenuation (Rated voltage 250V)
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
JAC(1) - 30(2) - 683(3) - □(4)
(1) Model Name
(2) Rated Current

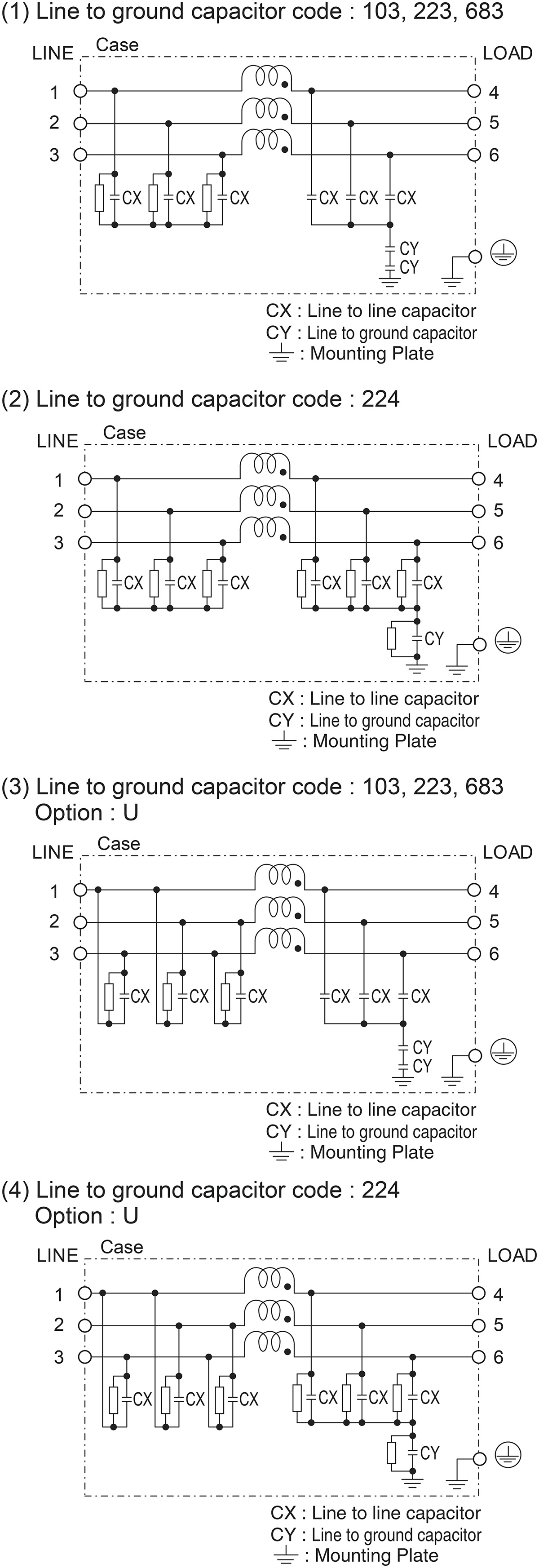

(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Options
D:DIN rail installation type
* The dimensions change when the option is set. Refer to External view.
H:Ultra high-attenuation type
"103" , "223" , "683" is applied.
U:lmprove differential mode attenuation (Rated voltage 250V)
* Input 250/500VAC 60Hz ( input 250/400VAC 60Hz in case of 224)
