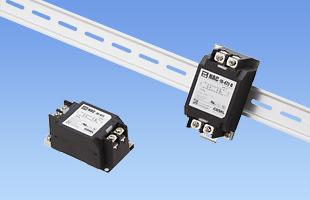

NAH-30

NAH series

Active
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC (AC input only)

Single phase 250VAC　30A　
Ultra high-attenuation type from 9kHz to 1MHz
1-stage filter

• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
*Obtained in combination with the breaker

• Push down type terminal block (4-30A)
• Withstand voltage 4,000 VAC (Line to ground capacitor code -000 to -472 of 40-60A)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model DIN rail installation type(-D)
3D CAD data	IGES	Standard Model DIN rail installation type(-D)

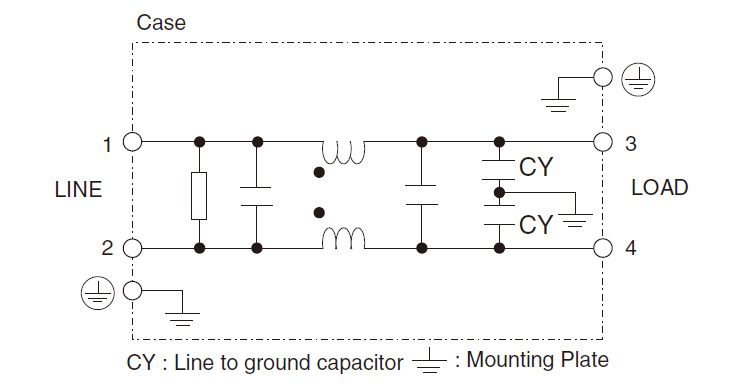

Circuit diagram

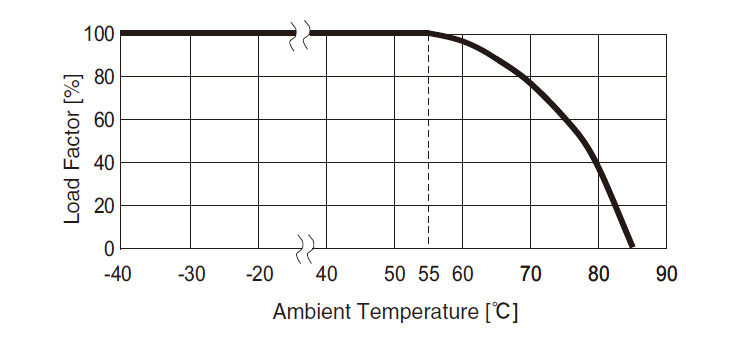

Derating characteristics

NAH⁽¹⁾ - 30⁽²⁾ - 472⁽³⁾ - □⁽⁴⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

Catalog download

NAH-30 specifications (overview)

Product		NAH-30-000	NAH-30-101	NAH-30-221	NAH-30-331	NAH-30-471	NAH-30-681	NAH-30-102	NAH-30-222	NAH-30-332	NAH-30-472
leakage current^※		5μA/10μA max	12.5μA/25μA max	25μA/50μA max	37.5μA/75μA max	50μA/100μA max	75.5μA/150μA max	0.13mA/0.25mA max	0.25mA/0.5mA max	0.38mA/0.75mA max	0.5mA/1.0mA max
Capacitor capacity (nominal value)		Not Provided	100pF	220pF	330pF	470pF	680pF	1,000pF	2,200pF	3,300pF	4,700pF
Rated voltage		AC 1 φ 250V/DC250V
Rated current		30A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (AC input only)
External dimensions (W×H×D)		53x41x92 mm [2.09x1.61x3.62 inches] , (Option: -D refer to external view)
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 125/250VAC 60Hz
