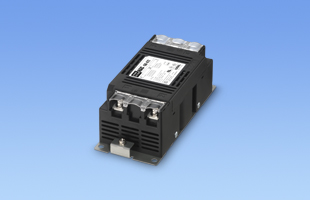

Single phase 277VAC / 300VDC 40A
Low leakage current type
1-stage filter
• Products meeting SCCR SCCR: 14 kA (UL 508 compliant)
*Obtained in combination with the breaker
• Push down type terminal block (4-30A)
• Withstand voltage 4,000 VAC (40-60A)
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
NAM(1) - 40(2) - 000(3)
(1) Series Name
(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
* Input 125/250VAC 60Hz
