For switch mode power supplies (DC)
Input voltage: ±50VDC 3A
Ripple noise attenuation type for DC lines
Best filter for the output line of a switching power supply
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
SNA(1) - 03(2) - 223(3) - □(4)
(1) Model Name
(2) Rated Current

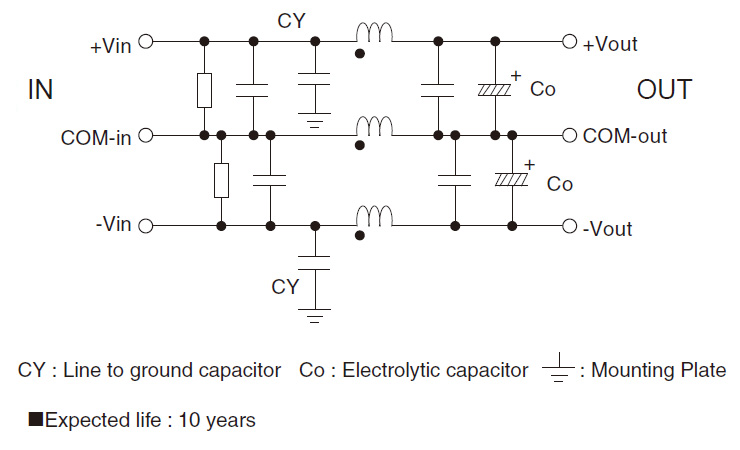

(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Options

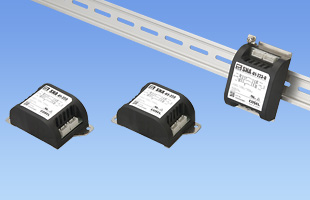

D:DIN rail installation type
* The dimensions change when the option is set. Refer to External view.
* This model has no specifications of the leakage current
