TAC-300

TAC series

Recommended products
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC

Three phase 500VAC　300A
General purpose
Low profile
High-attenuation type from 150kHz to 1MHz
1-stage filter

• Products meeting SCCR
4-60A rated SCCR: 14kA (UL 508 compliant)
80-150A rated SCCR: 25kA (UL 508 compliant)
200-300A rated SCCR: 50kA (UL 508 compliant)
*Obtained in combination with the breaker

• Push down type terminal block(4-30A rated)

♦Ideal options for various noise‑reduction requirements♦
U: Improve differential mode attenuation type(50-300A rated)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

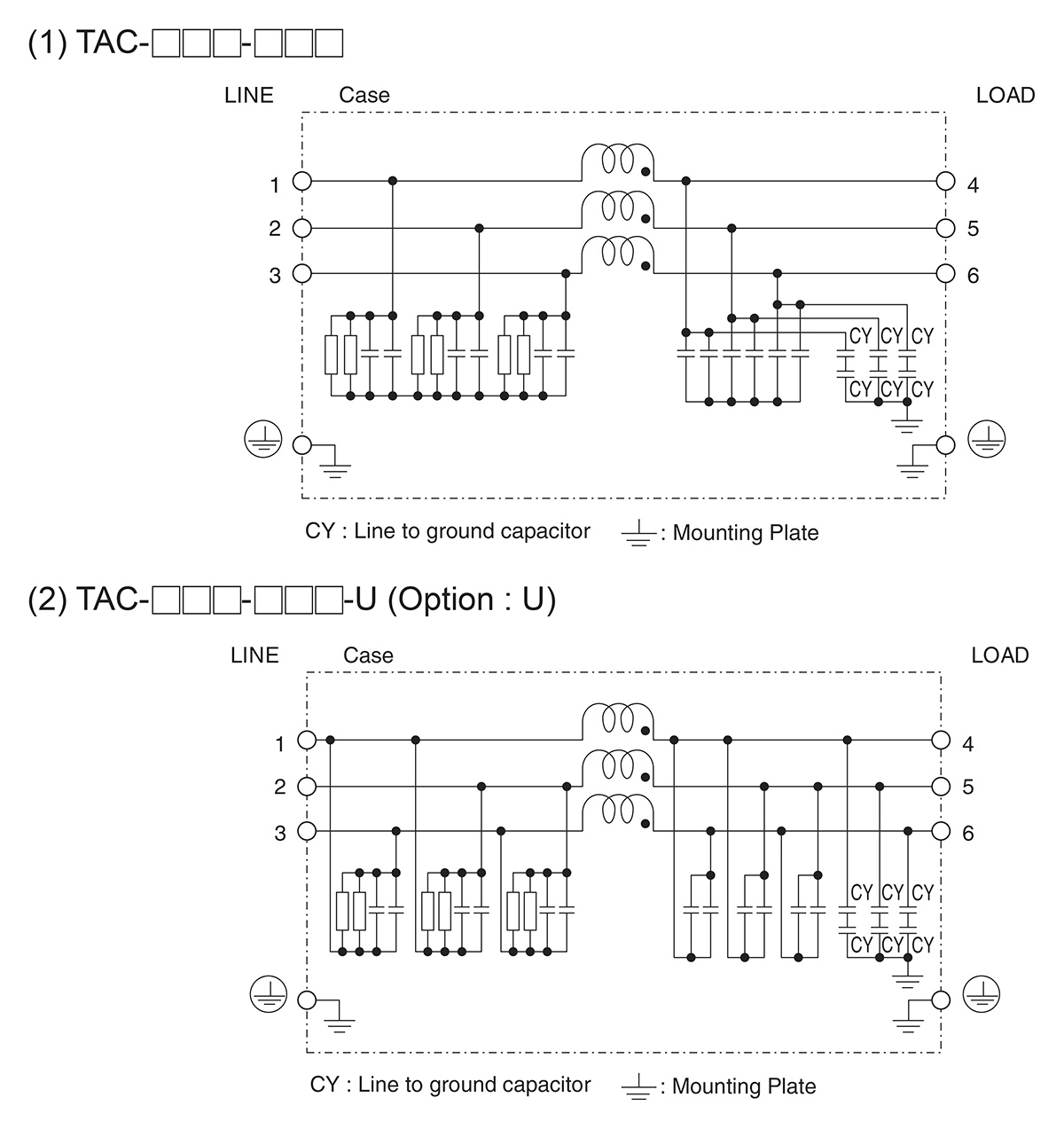

Circuit diagram

Derating characteristics

TAC⁽¹⁾ - 300⁽²⁾ - 223⁽³⁾ - □⁽⁴⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  U:Improve differential mode attenuation (Rated voltage 250V)

Catalog download

TAC-300 specifications (overview)

Product		TAC-300-103	TAC-300-223	TAC-300-333
leakage current^※		1.0mA / 2.0mA max	2.5mA / 5.0mA max	3.5mA / 7.0mA max
Capacitor capacity (nominal value)		10,000pF	22,000pF	33,000pF
Rated voltage		Three phase Three-wire 500V 50/60Hz
Rated current		300A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions (W×H×D)		190x110x360 mm [7.48x4.33x14.17 inches]
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 250/500VAC 60Hz
