TAH series

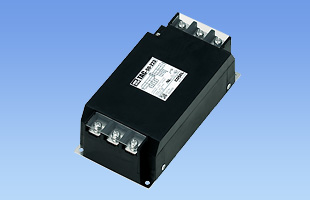

TAH-50

  • Recommended products
  • UL1283
  • CSA C22.2 No.8 (C-UL)
  • DIN EN60939 VDE0565 Teil 3-1
  • ENEC
  • RoHS
    UL・C-UL
    VDE
    ENEC
Three phase 500VAC　50A
General purpose
Low profile
Ultra high-attenuation type from 9kHz to 1MHz
1-stage filter

• Products meeting SCCR
4-60A rated SCCR: 14kA (UL 508 compliant)
80-150A rated SCCR: 25kA (UL 508 compliant)
   *Obtained in combination with the breaker

• Push down type terminal block (4-30A rated)

♦Ideal options for various noise‑reduction requirements♦
   U: Improve differential mode attenuation type (50-150A rated)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data DXF Standard Model
3D CAD data STEP Standard Model
IGES Standard Model

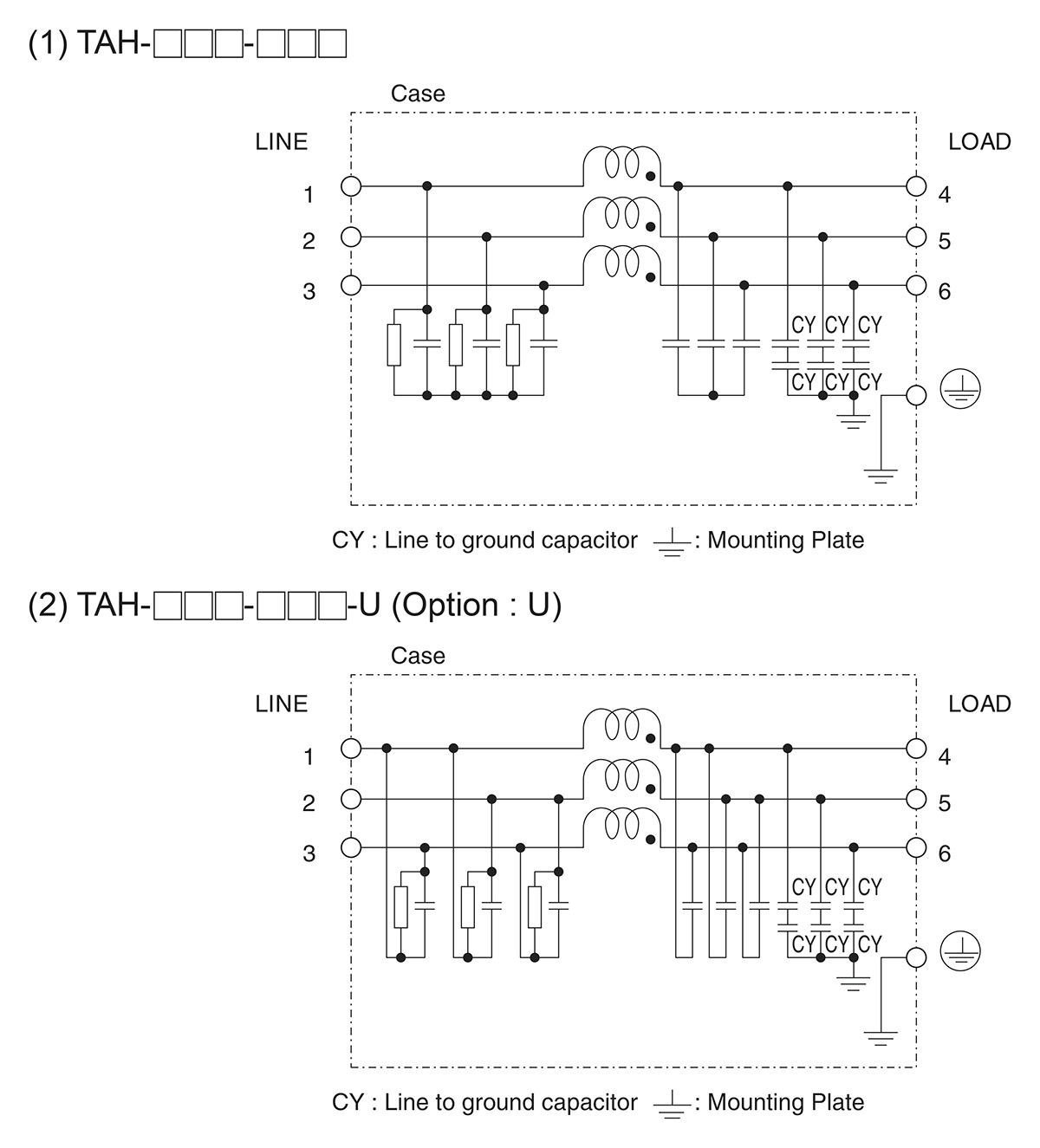

Circuit diagram

/tool/tag/fig/e_cir_tah-50.jpg

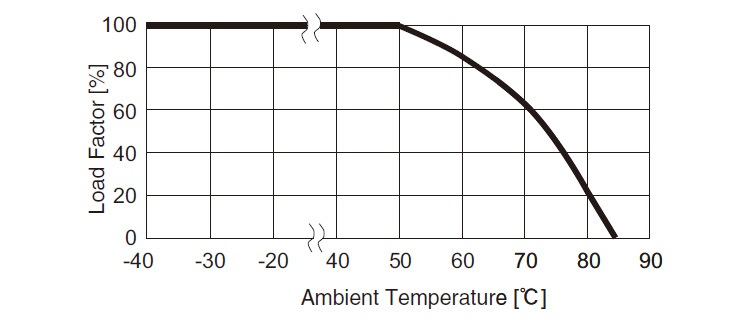

Derating characteristics

/tool/tag/fig/e_der_tah-50.jpg

TAH(1)  -  50(2)  -  223(3)  -  □(4)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Option
  U:Improvedifferential mode attenuation (Rated voltage 250V)
Catalog download

TAH-50 specifications (overview)

Product TAH-50-103 TAH-50-223 TAH-50-333
leakage current※ 1.0mA / 2.0mA max 2.5mA / 5.0mA max 3.5mA / 7.0mA max
Capacitor capacity (nominal value) 10,000pF 22,000pF 33,000pF
Rated voltage Three phase Three-wire 500V　50/60Hz
Rated current 50A
Safety Certifications

UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions
(W×H×D)		 90x54x179 mm [3.54x2.13x7.05 inches]
Technical data Characteristic data
Safety Standards Certification
Reliability
MTBF
* Input 250/500VAC 60Hz
