TBC series

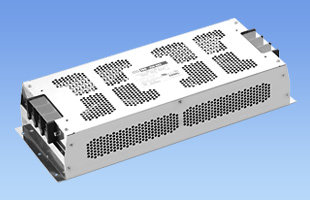

TBC-150

  • Recommended products
  • UL1283
  • CSA C22.2 No.8 (C-UL)
  • DIN EN60939 VDE0565 Teil 3-1
  • ENEC
  • RoHS
    UL・C-UL
    VDE
    ENEC
Three-phase 500VAC　150A
Low-profile
High-attenuation from 150kHz to 1MHz
2-stage filter

• Products meeting SCCR
50-100A rated SCCR: 10kA (UL 508 compliant)
150A rated SCCR: 25kA (UL 508 compliant)
200-300A rated SCCR: 50kA (UL 508 compliant)
   *Obtained in combination with the breaker

• Selectable leakage current value

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data DXF Standard Model
3D CAD data STEP Standard Model
IGES Standard Model

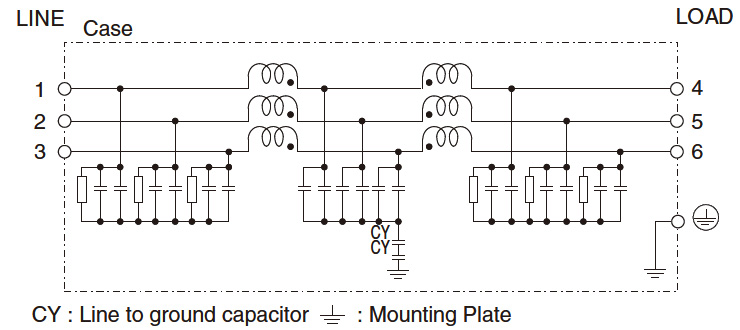

Circuit diagram

/tool/tag/fig/e_cir_tbc-150.jpg

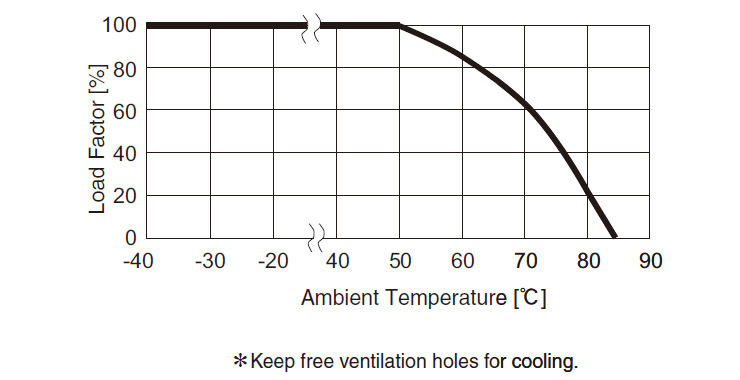

Derating characteristics

/tool/tag/fig/e_der_tbc-150.jpg

TBC(1)  -  150(2)  -  683(3)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
Catalog download

TBC-150 specifications (overview)

Product TBC-150-223 TBC-150-683 TBC-150-104
leakage current※ 1.0mA/2.0mA max 2.5mA/5.0mA max 3.5mA/7.0mA max
Capacitor capacity (nominal value) 22,000pF 68,000pF 100,000pF
Rated voltage Three-phase Three-wire 500V 50/60Hz
Rated current 150A
Safety Certifications

UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions
(W×H×D)		 190x92x482 mm [7.48x3.62x18.98 inches]
Technical data Characteristic data
Safety Standards Certification
Reliability
MTBF
* Input 250/500VAC 60Hz
