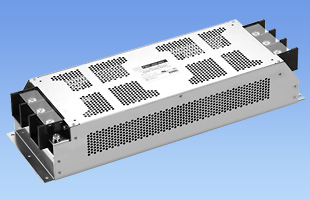

TBC-300

TBC series

Recommended products
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC

Three-phase 500VAC　300A
Low-profile
High-attenuation from 150kHz to 1MHz
2-stage filter

• Products meeting SCCR
50-100A rated SCCR: 10kA (UL 508 compliant)
150A rated SCCR: 25kA (UL 508 compliant)
200-300A rated SCCR: 50kA (UL 508 compliant)
*Obtained in combination with the breaker

• Selectable leakage current value

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

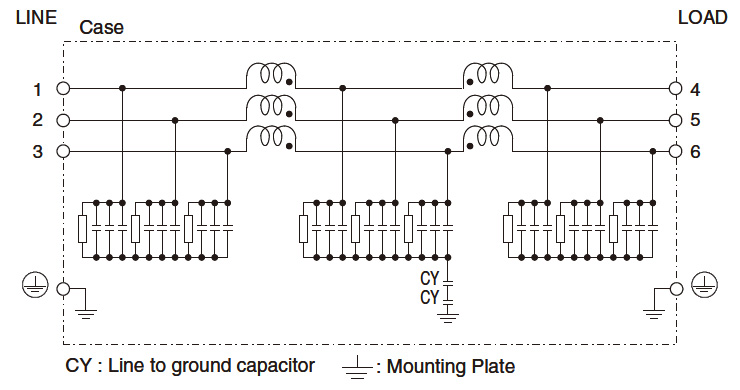

Circuit diagram

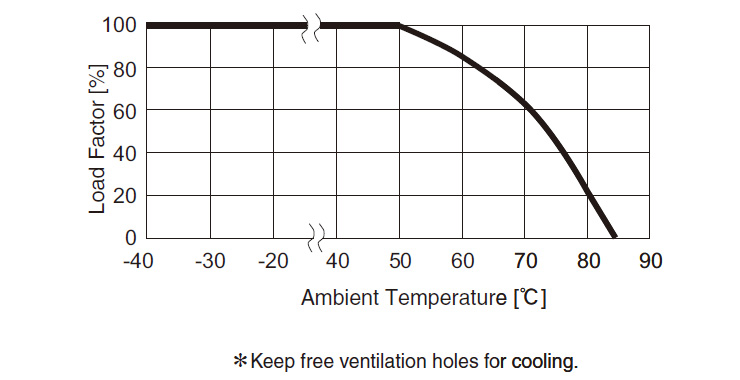

Derating characteristics

TBC⁽¹⁾ - 300⁽²⁾ - 683⁽³⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.

Catalog download

TBC-300 specifications (overview)

Product		TBC-300-223	TBC-300-683	TBC-300-104
leakage current^※		1.0mA/2.0mA max	2.5mA/5.0mA max	3.5mA/7.0mA max
Capacitor capacity (nominal value)		22,000pF	68,000pF	100,000pF
Rated voltage		Three-phase Three-wire 500V 50/60Hz
Rated current		300A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions (W×H×D)		190x110x580 mm [7.48x4.33x22.83 inches]
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 250/500VAC 60Hz
