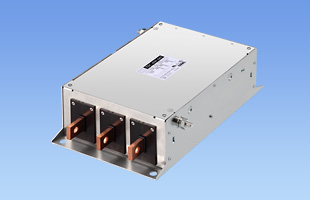

TSC-400

TSC series

TSC-400
TSC-600

Recommended products
UL1283
CSA C22.2 No.8 (C-UL)
DIN EN60939 VDE0565 Teil 3-1
ENEC

Three-phase 500VAC 400A
Low-profile
Ultra high-attenuation type of common mode noise from 150kHz to 1MHz
Multi-stage filter

• Products meeting SCCR
SCCR: 35kA (UL 508 compliant)
*Obtained in combination with the breaker

SCCR: 50kA (UL 508 compliant)
*Breaker rating used in combination is equal to the rated current of the EMI filter.

♦Ideal options for various noise‑reduction requirements♦
H: Ultra low-frequency and ultra high attenuation(with a high‑permeability choke coil)

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

Circuit diagram

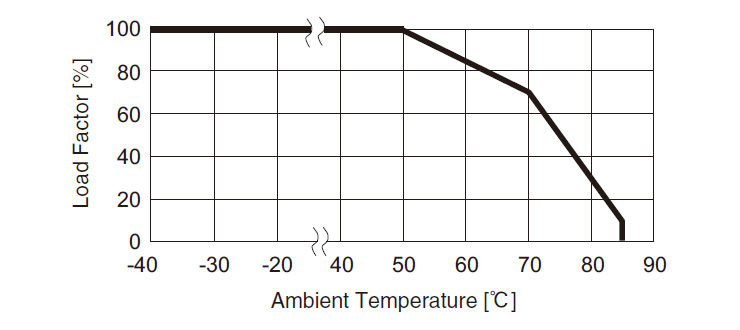

Derating characteristics

TSC⁽¹⁾ - 400⁽²⁾ - 665⁽³⁾　-　□⁽⁴⁾　

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
different.
  * Please contact us about low leakage current type (Change to low grounding
    capacitor).
(4) Option
H:Ultra high-attenuation type

Catalog download

TSC-400 specifications (overview)

Product		TSC-400-000	TSC-400-304	TSC-400-664	TSC-400-665
leakage current^※		50μA / 80μA max　 50μA / 100μA max	10.5mA / 21.0mA max 1.5mA / 3.0mA max	23mA / 46mA max 3.5mA / 7.0mA max	220mA / 350mA max 20mA / 40mA max
Capacitor capacity (nominal value)		CY1：Not Provided CY2：Not Provided CY3：Not Provided	CY1：0.1μF CY2：0.1μF CY3：0.1μF	CY1：0.22μF CY2：0.22μF CY3：0.22μF	CY1：2.2μF CY2：2.2μF CY3：2.2μF
Rated voltage		Three-phase Three-wire 500V 50/60Hz
Rated current		400A
Safety Certifications		UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
External dimensions (W×H×D)		210x100x360 mm [8.27x3.94x14.17 inches]
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF

* Input 250/500VAC 60Hz ( input Δ-connection 250/400VAC 60Hz in case of 665)
Upper row: Δ-connection, Lower row: Y-connection
