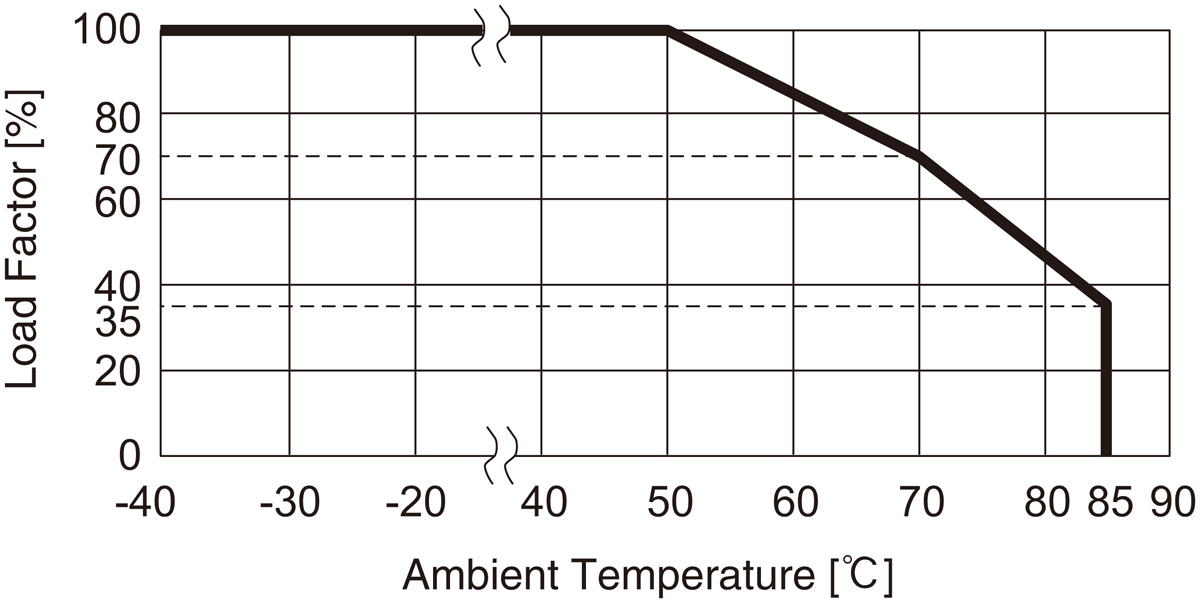

Three-Phase 500VAC 1000A
Low-Profile
Ultra High-Attenuation Type for Motor Drive System(Multi-Functional Regenerative Converter)
Improved Saturation Resistance
Multi-Stage Filter
• Products meeting SCCR SCCR: 10 kA (Deemed value of UL508A)
• Input and Output Terminals: Busbar Type
• Selectable Leakage Current Value
Warranty period 5-year
*Some documents are not listed. Please contact us for details.
| CAD data | DXF |
Standard Model
|
|---|---|---|
| 3D CAD data | STEP |
Standard Model
|
| IGES |
Standard Model
|
TSD(1) - 1000(2) - 356(3)
(1) Model Name
(2) Rated Current

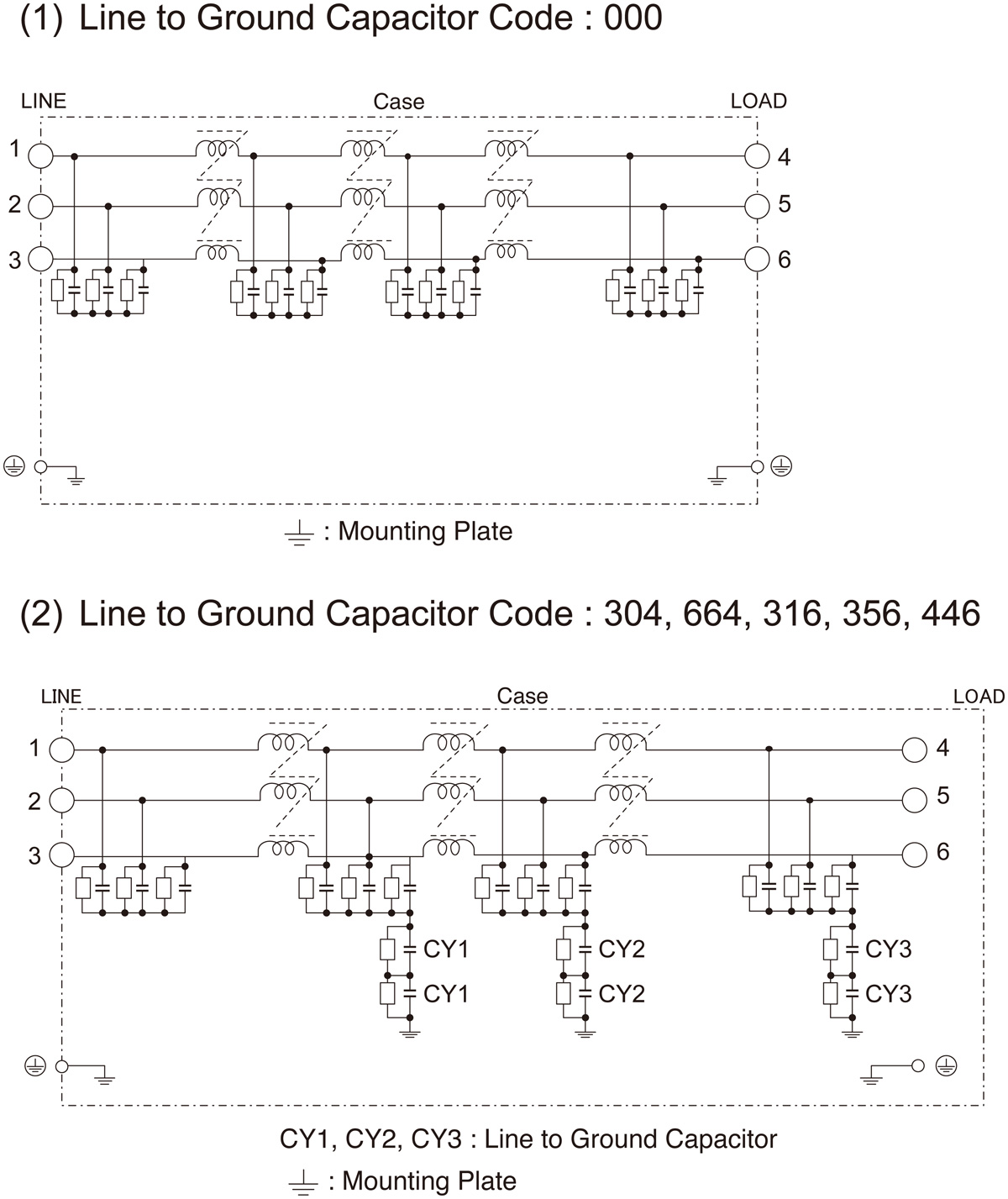

(3) Line to Ground Capacitor Code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
* Please contact us about low leakage current type (Change to low grounding
capacitor).
