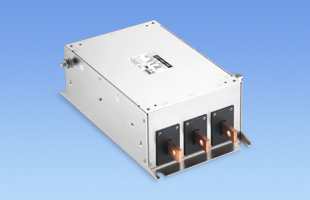

TSD-400

TSD series

New Product
Recommended products
UL60939
CSA C22.2 No.8 (C-UL)
EN60939 (DEMKO)
ENEC

Three-Phase 500VAC 400A
Low-Profile
Ultra High-Attenuation Type for Motor Drive System(Multi-Functional Regenerative Converter)
Improved Saturation Resistance
Multi-Stage Filter

• Products meeting SCCR SCCR: 10 kA (Deemed value of UL508A)

• Input and Output Terminals: Busbar Type
• Selectable Leakage Current Value

Warranty period 5-year

Technical features

Instruction manual
Technical document
Attenuation characteristics

*Some documents are not listed. Please contact us for details.

CAD data download

CAD data	DXF	Standard Model
3D CAD data	STEP	Standard Model
3D CAD data	IGES	Standard Model

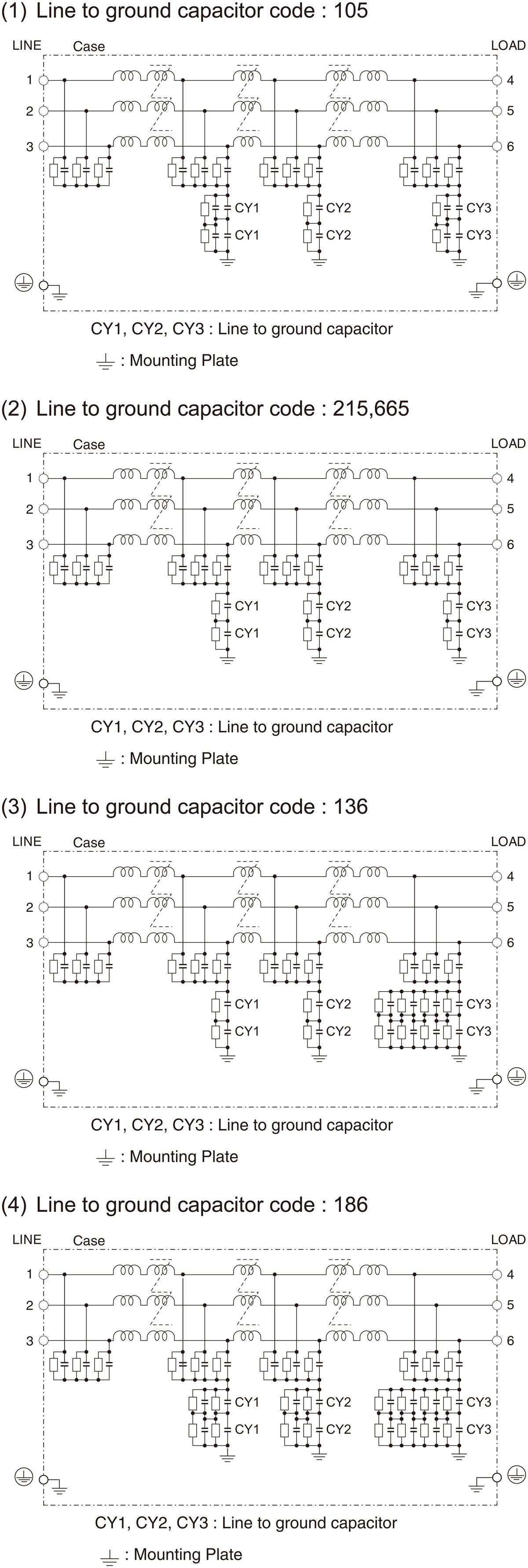

Circuit diagram

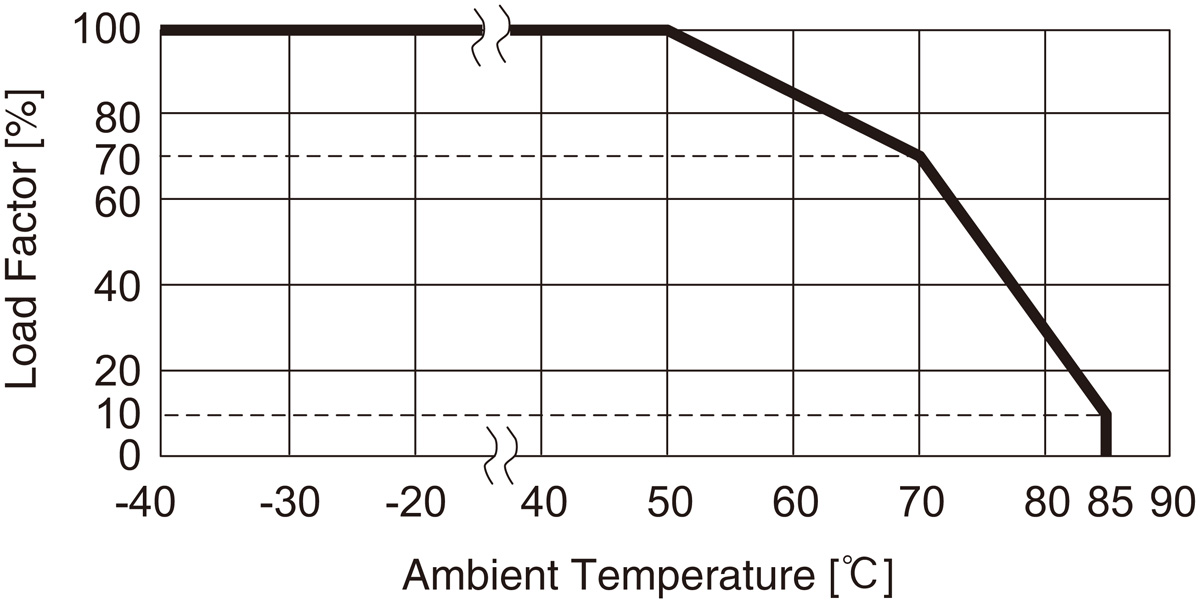

Derating characteristics

TSD⁽¹⁾ - 400⁽²⁾ - 186⁽³⁾

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
different.
  * Please contact us about low leakage current type (Change to low grounding
    capacitor).

Catalog download

TSD-400 specifications (overview)

Product		TSD-400-105	TSD-400-215	TSD-400-665	TSD-400-136	TSD-400-186
leakage current^※		45mA / 70mA max 3.5mA / 7.0mA max	80mA / 130mA max 7.5mA / 15mA max	220mA / 350mA max 20mA / 40mA max	420mA / 660mA max 40mA / 80mA max	540mA / 850mA max 50mA / 100mA max
Capacitor capacity (nominal value)		CY1：0.22μF CY2：0.1μF CY3：0.22μF	CY1：1.0μF CY2：0.1μF CY3：1.0μF	CY1：2.2μF CY2：2.2μF CY3：2.2μF	CY1：2.2μF CY2：2.2μF CY3：2.2μF	CY1：2.2μF CY2：2.2μF CY3：2.2μF
Rated voltage		Three-Phase Three-Wire 500V 50/60Hz
Rated current		400A
Safety Certifications		UL60939[Overvoltage Category: Ⅲ Altitude: 3000m], CSA C22.2 No.8 (C-UL), EN60939 (DEMKO)[Overvoltage Category: Ⅲ Altitude: 3000m], ENEC
External dimensions (W×H×D)		210x125x360 mm [8.27x4.92x14.17 inches]
Technical data	Characteristic data
	Safety Standards Certification
	Reliability
	MTBF
