ACEseries

ACE650F

  • Production discontinued (October 17, 2025)
  • UL60950-1
  • C-UL (CSA60950-1)
  • EN62368-1 Complies with DEN-AN UL60601-1
  • EN60601-1 (H option)
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 650W
Slots: 5
Rated Output Voltage: 2V,3.3V,5V,7.5V,12V,15V,18V,24V,34V,48V,±5,±12,±15,±24,5V/5V,5V/12V,5V/24V
• Flexible modular system architecture provides various output configuration
• Harmonic attenuator (Complies with IEC61000-3-2)
• Universal input (AC85-264V)
• Remote ON/OFF control, alarm

Free warranty period 3-year

Technical features

Harness,Fan unit

Type Model number Description PDF DXF
Terminal Attachment
B-ACE-7 Terminal attachment to facilitate faston terminal output modules. PDF download -
B-ACE-8 Terminal attachment to facilitate wiring. PDF download -
B-ACE-9 Terminal attachment for series operation as output modules. PDF download -
Fan unit
FAN-AC4 Fan unit for ACE450/650F.
(Standard model)		 PDF download -
FAN-AC4-F Fan unit for ACE450/650F.
(F option : Reversed air flow)		 PDF download -
FAN-AC4-K Fan unit for ACE450/650F.
(K option : Lower speed fan)		 PDF download -
FAN-AC4-T Fan unit for ACE450/650F.
(T option : With dust filter)		 PDF download -
Harness
H-SN-14 Harness for using AUX and PR alarm of CN1. PDF download -
H-SN-16 Harness for using all functions of output modules. (CN2) PDF download -
H-SN-17 Harness for using all functions except remote sensing of output modules. (CN2) PDF download -
H-SN-18 Please refer catalog of applicable model for usage. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

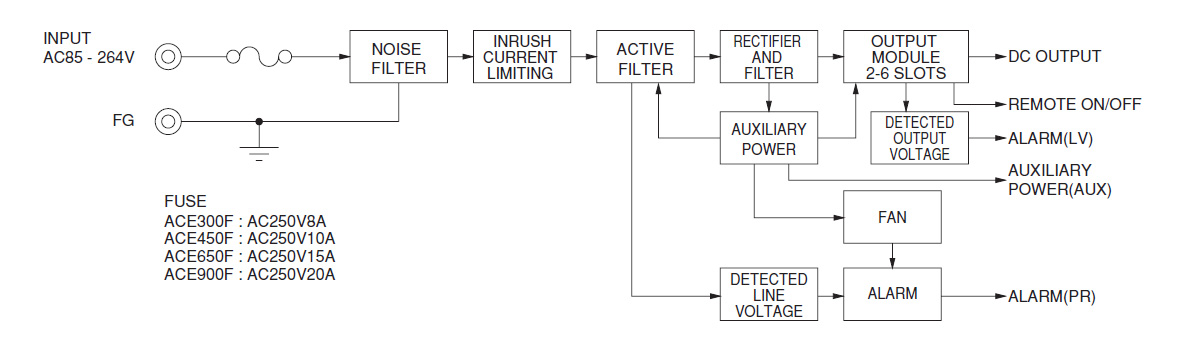

Block diagram

/tool/tag/fig/e_blo_ace650f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-20-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 20A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

  • AME800F

    • New Product
    • Recommended products
    • UL62368-1
    • C-UL （CSA62368-1）
    • EN62368-1
    • ANSI/AAMI ES60601-1
    • EN60601-1 3rd
    • Complies with IEC60601-1-2 4th Ed.
    • RoHS

    Rated Input: 85 - 264VAC 1Φ
    Rated Output Wattage: 800W
    Slots: 6
    Rated Output Voltage:3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V, 65V, 75V, 100V, 24V/24V

AC(1)  □(2)  -  □(3)  □(4)  □(5)  □(6)  □(7)  □(8)  -  □□(9)  -  □□(10)

(1) Abbreviation type name of ACE series
(2) Abbreviation power of ACE series
   6: ACE650F(AC6)
(3) Slot 6 Output module
(4) Slot 5 Output module
(5) Slot 4 Output module
(6) Slot 3 Output module
(7) Slot 2 Output module
(8) Slot 1 Output module
(9) Parallel code
(10) Option (series code)
   Refer to instruction manual 5.1
   Safety: UL60601-1, EN60601-1
   Refer to instruction manual.

*The number of slot is different depending on the model.
*Empty slot is code: 0
Data sheet download

Input module

Item Specification
Input voltage AC 85 to 264 V single-phase or DC 120 to 350 V *
Output Number of slots 4
Total maximum
output power		 AC 90 to 150 V 250 W
AC 170 to 264 V 300 W
Operating temperature / humidity -20 to +70°C, 20 to 90% RH (non-condensing)
Applicable standards Safety standards UL60950-1, C-UL (CSA60950-1), EN62368-1 certified, Electrical Appliance and Material Safety Law compliant * (excluding DC input)
UL60601-1, EN60601-1 certified: H option
Conducted emission (terminal voltage) FCC-B, VCCI-B, CISPR22-B, EN55022-B compliant
Harmonic current IEC61000-3-2 compliant *
Construction Dimensions (W × H × D) 103 × 63.5 × 254 mm
Mass 1.7 kg max
Cooling method Forced air cooling (built-in fan)
Free warranty period 3 years
Technical data Performance data
Reliability data
Estimated lifetime data
Safety certification
EMC data
CAD

*For detailed specifications and usage guidelines, please refer to the catalog and instruction manual.


Catalog (including outline drawings)
Instruction manual

Output modules

Item Specification
Module code L M N P R
Slots used 1 1 1 1 1
Output Power 33 W 50 W 60 W 60 W 60 W
Voltage / current 3.3 V 10 A 5 V 10 A 12 V 5 A 15 V 4 A 24 V 2.5 A
Voltage adjustment range 2.60 to 3.60 V 4.00 to 5.50 V 9.00 to 13.2 V 13.2 to 16.5 V 19.2 to 26.4 V
Built-in functions Overcurrent protection
Activates at 105% min of rated current, automatic recovery.
Overvoltage protection 4.00 to 5.25 V Activates at 115 to 140% of rated voltage.
Remote control
Available
Remote sensing
—
Other
—
Item Specification
Module code A B C D E F G H J K
Slots used 1 1 1 1 1 1 1 1 1 1
Output Power 52 W 85.8 W 130 W 135 W 156 W
(peak 168 W)		 150 W
(peak 180 W)		 153 W
(peak 180 W)		 156 W
(peak 192 W)		 153 W
(peak 187 W)		 153.6 W
(peak 192 W)
Voltage / current 2 V 26 A 3.3 V 26 A 5 V 26 A 7.5 V 18 A 12 V 13 A
(peak 14 A)		 15 V 10 A
(peak 12 A)		 18 V 8.5 A
(peak 10 A)		 24 V 6.5 A
(peak 8 A)		 34 V 4.5 A
(peak 5.5 A)		 48 V 3.2 A
(peak 4 A)
Voltage adjustment range 1.60 to 2.60 V 2.60 to 3.60 V 4.00 to 5.50 V 6.00 to 8.20 V 9.00 to 13.2 V 13.2 to 16.5 V 16.5 to 19.2 V 19.2 to 26.4 V 27.2 to 37.4 V 38.4 to 52.8 V
Built-in functions Overcurrent protection
Activates at 105% min of rated current; models with peak current activate at 101% min of peak current, automatic recovery.
Overvoltage protection 3.00 to 4.80 V 4.00 to 5.25 V Activates at 115 to 140% of rated voltage.
Remote control
Available
Remote sensing
Available
Other
—
Item Specification
Module code 2A 2B 2C 2D 2E 2F 2G 2H 2J 2K
Slots used 2 2 2 2 2 2 2 2 2 2
Output Power 120 W 198 W 300 W 300 W 300 W
(peak 408 W)		 300 W
(peak 405 W)		 306 W
(peak 414 W)		 336 W
(peak 480 W)		 340 W
(peak 476 W)		 336 W
(peak 480 W)
Voltage / current 2 V 60 A 3.3 V 60 A 5 V 60 A 7.5 V 40 A 12 V 25 A
(peak 34 A)		 15 V 20 A
(peak 27 A)		 18 V 17 A
(peak 23 A)		 24 V 14 A
(peak 20 A)		 34 V 10 A
(peak 14 A)		 48 V 7 A
(peak 10 A)
Voltage adjustment range 1.60 to 2.60 V 2.60 to 3.60 V 4.00 to 5.50 V 6.00 to 8.20 V 9.00 to 13.2 V 13.2 to 16.5 V 16.5 to 19.2 V 19.2 to 26.4 V 27.2 to 37.4 V 38.4 to 52.8 V
Built-in functions Overcurrent protection
Activates at 105% min of rated current; models with peak current activate at 101% min of peak current, automatic recovery.
Overvoltage protection 3.00 to 4.80 V 4.00 to 5.25 V Activates at 115 to 140% of rated voltage.
Remote control
Available
Remote sensing
Available
Other
—
Item Specification
Module code Y W Z 9
Slots used 1 1 1 1
Output Power* 50 W 76.8 W 75 W 76.8 W
Voltage ±5 V ±12 V ±15 V ±24 V
Current 1* 3 A 3.2 A 2.5 A 1.6 A
Current 2* 7 A 4.2 A 3.5 A 2.5 A
Peak current* — 5 A 4 A —
Voltage adjustment range 4.99 to 6.00 V 9.60 to 13.2 V 13.2 to 16.5 V 19.2 to 26.4 V
Built-in functions Overcurrent protection
Activates at 105% min of rated current; models with peak current activate at 101% min of peak current, automatic recovery.
Overvoltage protection 6.90 to 8.40 V 13.8 to 16.8 V 17.25 to 21.0 V 27.6 to 33.6 V
Remote control
Available
Remote sensing
—
Other
—
Item Specification
Module code Q V
Slots used 1 1
Output Power* 153.6 W 165 W
Voltage ±12 V ±15 V
Current 1* 6.4 A 5.5 A
Current 2* 8 A 7 A
Peak current* 10 A 8 A
Voltage adjustment range 9.60 to 13.2 V 13.2 to 16.5 V
Built-in functions Overcurrent protection
Activates at 105% min of rated current; models with peak current activate at 101% min of peak current, automatic recovery.
Overvoltage protection Activates at 115 to 140% of rated voltage.
Remote control
Available
Remote sensing
—
Other
—
Item Specification
Module code S T U
Slots used 1 1 1
Output Power 75 W 100.4 W 100.4 W
Voltage / current V1:
5 V 10 A		 V2:
5 V 5 A		 V1:
5 V 10 A		 V2:
12 V 4.2 A		 V1:
5 V 10 A		 V2:
24 V 2.1 A
Voltage adjustment range 4.99 to 5.50 V 3.00 to 5.50 V 4.99 to 5.50 V 7.50 to 13.2 V 4.99 to 5.50 V 15.0 to 26.4 V
Built-in functions Overcurrent protection
Activates at 105% min of rated current, automatic recovery.
Overvoltage protection
Activates at 115 to 140% of rated voltage.
Remote control
Available
Remote sensing
—
Other
—

*For detailed specifications and usage guidelines, please refer to the catalog and instruction manual.
Input terminal orientation can be changed to match the output module side by using the "I module" option. See the catalog / instruction manual for details.
