ADAseries

ADA1000F

  • Production discontinued (October 15, 2024)
  • UL60950-1
  • C-UL (CSA60950-1)
  • EN62368-1 Complies with DEN-AN and IEC60950-1
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA
Rated Input：AC85 - 264V 1Φ
Rated Output Wattage：1000W
Output Voltage：24V,30V,36V,48V

• High power & peak power
• Parallel operation/master-slave operation/N+1 redundant(optional)
• Optional:remote ON/OFF, alarms
• Current monitor
• DIN rail (35mm) optional

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Attachment Plate、Harness、Fan unit

Type Model number Description PDF DXF
Attachment
F-ADA-1 Attachment to facilitate installation for A and B mounting. PDF download DXF download
F-ADA-2 Attachment to facilitate installation for A and B mounting. PDF download DXF download
F-ADA-3 Attachment to facilitate installation for A mounting. PDF download DXF download
F-ADA-4 Attachment to facilitate installation for C mounting. PDF download DXF download
Fan unit
FAN-AD1-24 Fan unit for ADA1000F-24. PDF download -
FAN-AD1-48 Fan unit for ADA1000F-30/36/48. PDF download -
Harness
H-IN-11 Mating harness for input of the connector type power supply. (J option) PDF download -
H-OU-26 Mating harness for output with J option. PDF download -
H-PA-5 Harness for parallel operation when I/O interface is connector type. (option : J) PDF download -
H-RC-2 Harness for using option : -R when I/O interface is connector type (option : J) PDF download -
H-SN-23 Harness for using option : -W and/or -R when I/O interface is terminal block type (standard). PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
N1:DIN rail installation type
T:Vertical terminal block
J:Connector type
3D CAD data STEP Standard model
IGES Standard model

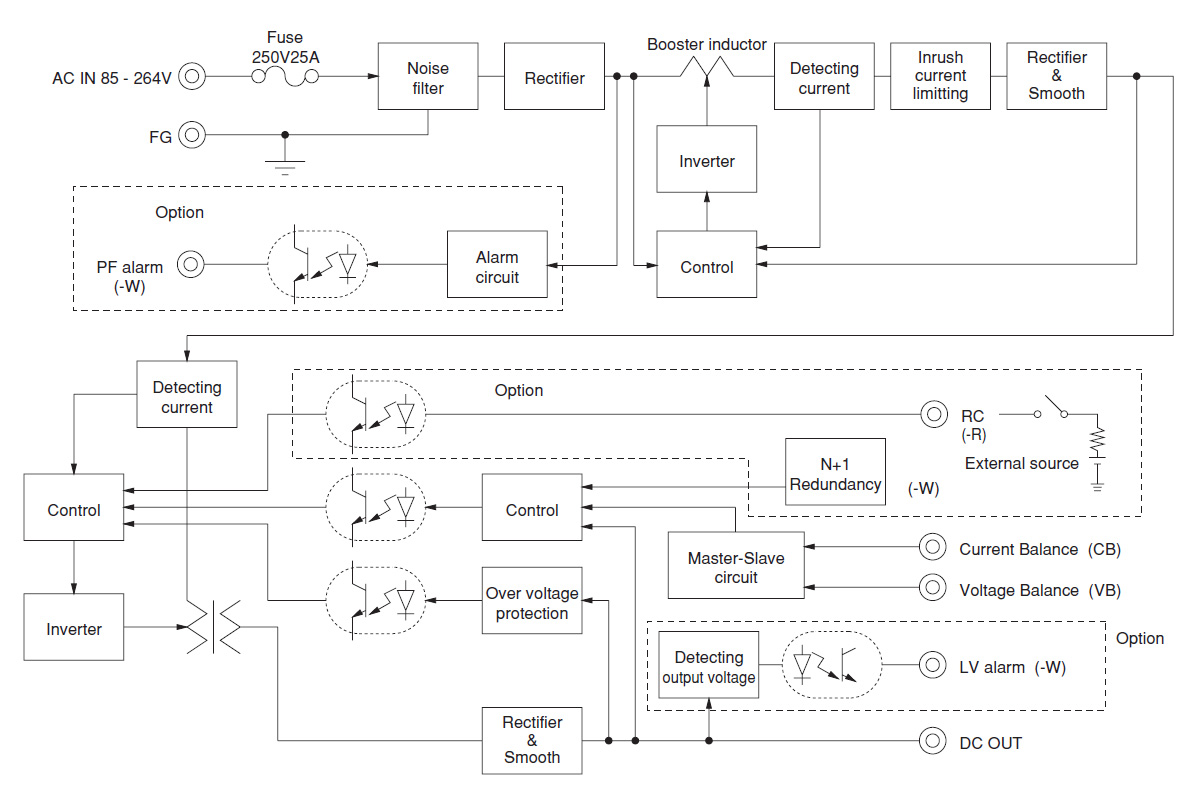

Block diagram

/tool/tag/fig/e_blo_ada1000f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-20-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 20A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

  • AEA1000F

    • New Product
    • Recommended products
    • UL62368-1
    • ANSI/AAMI ES 60601-1
    • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1. CAN/CSA-C22.2 No.60601-1)
    • EN62368-1
    • EN60601-1 3rd
    • EN62477-1 (OVCⅢ)
    • RoHS

    Rated Input: 85 - 264VAC 1Φ
    Rated Output Wattage: 1000W
    Output Voltage: 24V, 36V, 48V

ADA(1)  1000(2)  F(3)  -  24(4)  -  □(5)

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional
  G: Low leakage current
  E: Low leakage current
     and EMI class A
  F: with Fan unit
  T: Vertical terminal block
  J: Connector type
  C: with Coating
  R: Remote ON/OFF
  N1: DIN rail
  W: Alarms and Redundant
     operation
Specification is changed at option, refer to Instruction Manual.
Data sheet download

ADA1000F specifications (overview)

Product ADA1000F-24 ADA1000F-30 ADA1000F-36 ADA1000F-48
Input voltage AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) * AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) * AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) * AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) *
Output Wattage 504W (Peak: 1512W) ACIN 100V Convection Cooling
792W (Peak: 1512W) ACIN 100V Forced Air Cooling
600W (Peak: 1992W) ACIN 200V Convection Cooling
1008W (Peak: 1992W) ACIN 200V Forced Air Cooling		 495W (Peak: 1500W) ACIN 100V Convection Cooling
780W (Peak: 1500W) ACIN 100V Forced Air Cooling
600W (Peak: 1980W) ACIN 200V Convection Cooling
1005W (Peak: 1980W) ACIN 200V Forced Air Cooling		 504W (Peak: 1512W) ACIN 100V Convection Cooling
792W (Peak: 1512W) ACIN 100V Forced Air Cooling
594W (Peak: 1980W) ACIN 200V Convection Cooling
1008W (Peak: 1980W) ACIN 200V Forced Air Cooling		 504W (Peak: 1512W) ACIN 100V Convection Cooling
792W (Peak: 1512W) ACIN 100V Forced Air Cooling
552W (Peak: 1992W) ACIN 200V Convection Cooling
1008W (Peak: 1992W) ACIN 200V Forced Air Cooling
Voltage・Current 24V 21A (Peak :63A) ACIN 100V Convection Cooling
24V 33A (Peak :63A) ACIN 100V Forced Air Cooling
24V 25A (Peak :83A) ACIN 200V Convection Cooling
24V 42A (Peak :83A) ACIN 200V Forced Air Cooling		 30V 16.5A (Peak :50A) ACIN 100V Convection Cooling
30V 26A (Peak :50A) ACIN 100V Forced Air Cooling
30V 20A (Peak :66A) ACIN 200V Convection Cooling
30V 33.5A (Peak :66A) ACIN 200V Forced Air Cooling		 36V 14A (Peak :42A) ACIN 100V Convection Cooling
36V 22A (Peak :42A) ACIN 100V Forced Air Cooling
36V 16.5A (Peak :55A) ACIN 200V Convection Cooling
36V 28A (Peak :55A) ACIN 200V Forced Air Cooling		 48V 10.5A (Peak :31.5A) ACIN 100V Convection Cooling
48V 16.5A (Peak :31.5A) ACIN 100V Forced Air Cooling
48V 11.5A (Peak :41.5A) ACIN 200V Convection Cooling
48V 21A (Peak :41.5A) ACIN 200V Forced Air Cooling
Voltage variable range 21.6 - 27.0V 27.0 - 33.0V 33.0 - 41.0V 41.0 - 52.8V
Applicable standards Safety Certifications UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN and IEC60950-1
Structure External dimensions (W×H×D) 75x127x280mm [2.95x5x11.02 inches] (without terminal block)
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
