ADA600F

ADAseries

ADA600F
ADA750F
ADA1000F

Production discontinued (October 15, 2024)
UL60950-1
C-UL (CSA60950-1)
EN62368-1 Complies with DEN-AN and IEC60950-1

Rated Input：AC85 - 264V 1Φ
Rated Output Wattage：600W
Output Voltage：24V,30V,36V,48V

• High power & peak power
• Parallel operation/master-slave operation/N+1 redundant(optional)
• Optional:remote ON/OFF, alarms
• Current monitor
• DIN rail (35mm) optional

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Attachment Plate、Harness、Fan unit

Type	Model number	Description	PDF	DXF
Attachment
	F-ADA-1	Attachment to facilitate installation for A and B mounting.	PDF download	DXF download
	F-ADA-2	Attachment to facilitate installation for A and B mounting.	PDF download	DXF download
	F-ADA-3	Attachment to facilitate installation for A mounting.	PDF download	DXF download
	F-ADA-4	Attachment to facilitate installation for C mounting.	PDF download	DXF download
	F-ADA-5	Attachment to facilitate installation (For ADA600F only).	PDF download	DXF download
Fan unit
	FAN-AD6-24	Fan unit for ADA600F-24.	PDF download	-
	FAN-AD6-48	Fan unit for ADA600F-30/36/48.	PDF download	-
Harness
	H-IN-11	Mating harness for input of the connector type power supply. (J option)	PDF download	-
	H-OU-26	Mating harness for output with J option.	PDF download	-
	H-PA-5	Harness for parallel operation when I/O interface is connector type. (option : J)	PDF download	-
	H-RC-2	Harness for using option : -R when I/O interface is connector type (option : J)	PDF download	-
	H-SN-23	Harness for using option : -W and/or -R when I/O interface is terminal block type (standard).	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model N1:DIN rail installation type T:Vertical terminal block J:Connector type
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

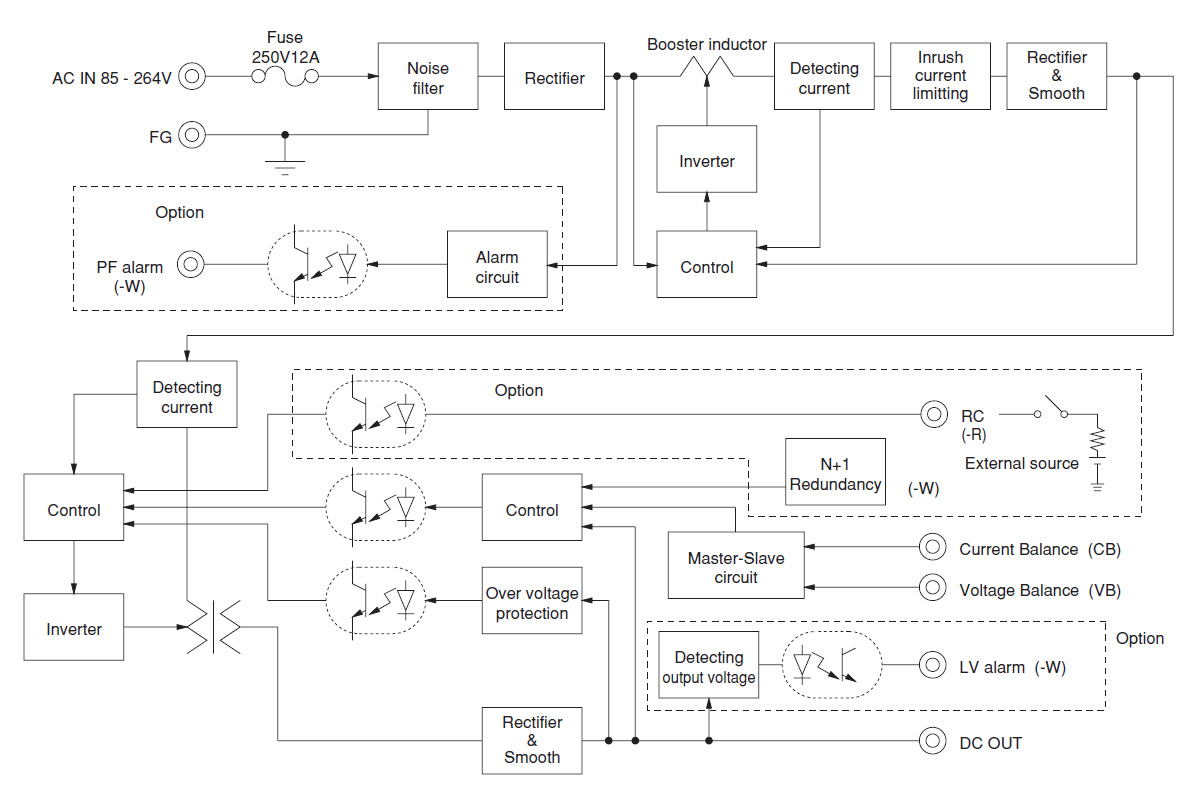

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-20-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 20A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

AEA600F
- New Product
- Recommended products
- UL62368-1
- ANSI/AAMI ES 60601-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1. CAN/CSA-C22.2 No.60601-1)
- EN62368-1
- EN60601-1 3rd
- EN62477-1 (OVCⅢ)
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 600W
Output Voltage: 24V, 32V, 36V, 48V

ADA⁽¹⁾ 600⁽²⁾ F⁽³⁾ - 24⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional
  G: Low leakage current
  E: Low leakage current
     and EMI class A
  F: with Fan unit
  T: Vertical terminal block
  J: Connector type
  C: with Coating
  R: Remote ON/OFF
  N1: DIN rail
  W: Alarms and Redundant
     operation
Specification is changed at option, refer to Instruction Manual.

Data sheet download

ADA600F specifications (overview)

Product		ADA600F-24	ADA600F-30	ADA600F-36	ADA600F-48
Input voltage		AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) *	AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) *	AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) *	AC85 - 264V 1Φ or DC120 - 350V (AC64 or DC90 optionally available) *
Output	Wattage	336W (Peak: 600W) ACIN 100V Convection Cooling 504W (Peak: 600W) ACIN 100V Forced Air Cooling 360W (Peak: 744W) ACIN 200V Convection Cooling 600W (Peak: 744W) ACIN 200V Forced Air Cooling	330W (Peak: 600W) ACIN 100V Convection Cooling 495W (Peak: 600W) ACIN 100V Forced Air Cooling 360W (Peak: 735W) ACIN 200V Convection Cooling 600W (Peak: 735W) ACIN 200V Forced Air Cooling	324W (Peak: 594W) ACIN 100V Convection Cooling 504W (Peak: 594W) ACIN 100V Forced Air Cooling 360W (Peak: 738W) ACIN 200V Convection Cooling 594W (Peak: 738W) ACIN 200V Forced Air Cooling	312W (Peak: 600W) ACIN 100V Convection Cooling 504W (Peak: 600W) ACIN 100V Forced Air Cooling 336W (Peak: 744W) ACIN 200V Convection Cooling 600W (Peak: 744W) ACIN 200V Forced Air Cooling
	Voltage・Current	24V 14A (Peak :25A) ACIN 100V Convection Cooling 24V 21A (Peak :25A) ACIN 100V Forced Air Cooling 24V 15A (Peak :31A) ACIN 200V Convection Cooling 24V 25A (Peak :31A) ACIN 200V Forced Air Cooling	30V 11A (Peak :20A) ACIN 100V Convection Cooling 30V 16.5A (Peak :20A) ACIN 100V Forced Air Cooling 30V 12A (Peak :24.5A) ACIN 200V Convection Cooling 30V 20A (Peak :24.5A) ACIN 200V Forced Air Cooling	36V 9A (Peak :16.5A) ACIN 100V Convection Cooling 36V 14A (Peak :16.5A) ACIN 100V Forced Air Cooling 36V 10A (Peak :20.5A) ACIN 200V Convection Cooling 36V 16.5A (Peak :20.5A) ACIN 200V Forced Air Cooling	48V 6.5A (Peak :12.5A) ACIN 100V Convection Cooling 48V 10.5A (Peak :12.5A) ACIN 100V Forced Air Cooling 48V 7A (Peak :15.5A) ACIN 200V Convection Cooling 48V 12.5A (Peak :15.5A) ACIN 200V Forced Air Cooling
	Voltage variable range	21.6 - 27.0V	27.0 - 33.0V	33.0 - 41.0V	41.0 - 52.8V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN and IEC60950-1
Structure	External dimensions (W×H×D)	65x127x195mm [2.56x5x7.68 inches] (without terminal block)
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF
