AMEseries

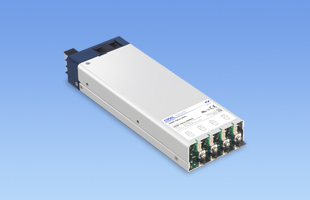

AME600F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL （CSA62368-1）
  • EN62368-1
  • ANSI/AAMI ES60601-1
  • EN60601-1 3rd
  • Complies with IEC60601-1-2 4th Ed.
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA

Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 600W
Slots: 4
Rated Output Voltage: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V, 65V, 75V, 100V, 24V/24V

• Flexible modular system architecture provides various output configuration
• Low profile(41mm, 1.61inch=meet to 1U height)
• Universal input (85-264VAC)
• For medical electronical equipment
　(ANSI/AAMI ES60601-1, EN60601-1 3rd, IEC60601-1-2 4th Ed.)
• Medical Isolation Grade 2MOPP
• With AUX output 5V 1A
• Global Inhibit, Remote ON/OFF control, alarm
• Output connector is available (Option: -J2）
• Monitoring function and some parameter changes by communication are available(Option: -I3, -I).

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the AME series?

Configurable power supply allowing flexible combination of multiple output modules.
Its low-profile design (41 mm height) fits into a 1U rack, enabling space-saving installations.
Compliant with medical standards, making it suitable for medical devices such as imaging systems.
With communication capabilities, it supports automated output voltage monitoring and flexible sequencing adjustments for each module, providing enhanced control and flexibility.

Technical features

  • Auxiliary Power
  • Adjustable Output Voltage
  • Remote Control
  • Alarm
  • Constant current
  • Low leakage current
Part Number Configurator

<p>Harness</p>

Type Model number Description PDF DXF
Terminal Attachment
B-ACE-7 Terminal attachment to facilitate faston terminal output modules. PDF download -
B-AME-8S Terminal attachment to facilitate wiring (+V). PDF download -
B-AME-8L Terminal attachment to facilitate wiring (-V). PDF download -
B-AME-9 Terminal attachment for series operation as output modules. PDF download -
Harness
H-OU-42 Output harness for connector type. (-J2 option)
(for output module A-D and K-M)		 PDF download -
H-OU-43 Output harness for connector type. (-J2 option)
(for output module E4-H4, E-H and J) .		 PDF download -
H-OU-52 Output harness for connector type. (-J2 option)　
(for output module R) .		 PDF download -
H-SN-51 Harness for address setting of Extended UART. PDF download -
H-SN-58 Harness for functions (AUX,GI,PR,etc) in CN1. PDF download -
H-SN-59 Harness for functions in CN3.
(for Output module A-D and J-M) 		PDF download -
H-SN-60 Harness for functions in CN3.
(for Output module E4-H4 and E-H) 		PDF download -
H-SN-61 Molex housing version of H-SN-58.
(for -J3 option of output module A, B, C and D)		 PDF download -
H-SN-62 Molex housing version of H-SN-59.
(for -J3 option of output module A-D and J-M)		 PDF download -
H-SN-63 Molex housing version of H-SN-60.
(for -J3 option of output module E4-H4 and E-H) 		PDF download -
H-SN-65 Molex housing version of H-SN-51. PDF download -
H-SN-66 Harness for using PMBus communication . (-Ｉ option) PDF download -
H-SN-67 Molex housing version of H-SN-66. PDF download -
H-SN-68 Harness for functions in CN3.
(for Output module R) 		PDF download -
H-SN-69 Molex housing version of H-SN-68.
(for -J3 option of output module R) 		PDF download -
Communication converter
CR-PC-1 This is a unit to convert Extended UART signal to RS232 signal mutually. PDF download -
CR-PC-2 This is a unit to convert Extended UART signal to RS485(Modbus-RTU) signal mutually.
PDF download -
Instruction manual
Optional parts (sold separately)
AME Series Extended UART Manual
Application Software (Extended-UART)
AME Series PMBus Communication Manual
Application Software (PMBus)
CR-PC-2 Communication manual (optional parts)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

/tool/tag/fig/e_blo_ame.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-10-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 10A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

The AME series has Order Name which is used for the ordering aside from Model Name.
Please refer to Configuration-Model Name Construction in Instruction manual for Order Name.
Order Name is required to create by the above menu.

■Model Name

AM(1）　□(2）　-　□(3）　□(4）　□(5）　□(6）　-　□□(7）□□(8　-　□(9)　

(1） Abbreviation for series name of AME series
(2） Abbreviation for output power of AME series
  06: AME600F(AM06）
(3） Slot 4 Output module
(4） Slot 3 Output module
(5） Slot 2 Output module
(6） Slot 1 Output module
(7） Parallel code
(8） Series code
(9） Option
  A: 12V/0.1A AUX instead of 5V1A
  R: Reversed logic remote on/off
  J2: Output connector type
  J3: CN1/CN2/CN3 Molex connectors
  C: with Coating
  F3: Revers air exhaust type
  G: Low leakage current
  I3: with Extented-UART interface
  I: with PMBus interface
  Refer to instruction manual 6.1

*The number of slot is different depending on the model.
*The code for empty slot is "O"

3D product images are available.

Read Me First
Standard model   J2J3: Connector type (Molex)

Catalog download

Input module

Item Specification
Input voltage 85 to 264 VAC single-phase *
Output Number of slots 4
Total maximum
output power		 AC 90 to 150 V 250 W
AC 170 to 264 V 400 W
Operating temperature / humidity -20 to +70°C, 20 to 90% RH (non-condensing) *
Applicable standards Safety standards UL62368-1, C-UL (CSA62368-1), EN62368-1 certified
ANSI/AAMI ES60601-1, EN60601-1 3rd certified,
IEC60601-1-2 4th compliant
Conducted emission (terminal voltage) FCC-B, VCCI-B, CISPR11-B, CISPR32-B, EN55011-B, EN55032-B compliant
Harmonic current IEC61000-3-2 compliant *
Construction Dimensions (W × H × D) 89 × 41 × 257 mm
Mass 1.2 kg max
Cooling method Forced air cooling (built-in fan)
Free warranty period 5 years (see instruction manual)
Technical data Performance data
Reliability data
Estimated lifetime data
Safety certification
EMC data
CAD

*For detailed specifications and usage guidelines, please refer to the catalog and instruction manual.


Catalog (including outline drawings)
Instruction manual

Output modules

Item Specification
Module code J A K B L C M D
Slots used 1 1 1 1 1 1 1 1
Power 50.16 W 60 W 90 W 102 W 120 W 120 W 122.4 W 120 W
Voltage / current 3.3 V
15.2 A		 5 V
12 A		 7.5 V
12 A		 12 V
8.5 A		 15 V
8 A		 24 V
5 A		 36 V
3.4 A		 48 V
2.5 A
Voltage adjustment range 2.64 to
3.96 V		 4.0 to
6.0 V		 6.0 to
9.0 V		 9.6 to
14.4 V		 12.0 to
18.0 V		 19.2 to
28.8 V		 28.8 to
43.2 V		 38.4 to
57.6 V
Overcurrent protection
Activates at 105% min of rated current, automatic recovery, intermittent overcurrent.
Overvoltage protection 4.2 to
5.6 V		 6.5 to
7.8 V		 9.4 to
11.6 V		 15.0 to
18.6 V		 18.8 to
23.2 V		 30.0 to
37.2 V		 45.0 to
55.8 V		 60.0 to
74.4 V
Built-in functions
Remote control (RC), output alarm (LV),
Operation indicator: blue LED.
Item Specification
Module code E4 E S F4 F T G4 G U H4 H V4 V V5
Slots used 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Power 105.6 W 160 W 180 W 150 W 240 W 240 W 150 W
(peak
225 W)		 240 W
(peak
360 W)		 241.2 W
(peak
360 W)		 180 W
(peak
270 W)		 240 W
(peak
360 W)		 195 W 225 W 225 W
Voltage / current 3.3 V
32 A		 5 V
32 A		 7.5 V
24 A		 7.5 V
20 A		 12 V
20 A		 15 V
16 A		 15 V
10 A
(peak
15 A)		 24 V
10 A
(peak
15 A)		 36 V
6.7 A
(peak
10 A)		 36 V
5 A
(peak
7.5 A)		 48 V
5 A
(peak
7.5 A)		 65 V
3 A		 75 V
3 A		 100 V
2.25 A
Voltage adjustment range 3.0 to
6.0 V		 3.0 to
6.0 V		 4.5 to
9.0 V		 7.2 to
14.4 V		 7.2 to
14.4 V		 9.0 to
18.0 V		 14.4 to
28.8 V		 14.4 to
28.8 V		 21.6 to
43.2 V		 28.8 to
57.6 V		 28.8 to
57.6 V		 57.6 to
105.0 V		 57.6 to
105.0 V		 57.6 to
105.0 V
Overcurrent protection
Activates at 105% min of rated current (101% min of peak current for peak-rated models), automatic recovery, intermittent overcurrent.
Overvoltage protection Vo 
+ 1.0 
to 1.5 V		 Vo 
+ 1.0 
to 1.5 V		 Vo 
+ 1.0 
to 1.7 V		 Vo 
+ 1.2 
to 2.4 V		 Vo 
+ 1.2 
to 2.4 V		 Vo 
+ 1.5 
to 3.0 V		 Vo 
+ 2.4 
to 4.8 V		 Vo 
+ 2.4 
to 4.8 V		 Vo 
+ 3.6 
to 7.2 V		 Vo 
+ 4.8 
to 7.2 V		 Vo 
+ 4.8 
to 7.2 V		 Vo 
+ 7.5 
to 11.3 V		 Vo 
+ 7.5 
to 11.3 V		 Vo 
+ 7.5 
to 11.3 V
Built-in functions
Remote control (RC), output alarm (LV),
Remote sensing (+S/-S),
External output voltage adjustment (VTRM), external constant-current adjustment (ITRM),
Operation indicator: blue LED.
Item Specification
Module code R
Slots used 1
Power 72 W 72 W
Voltage / current V1 V2
24 V 3 A 24 V 3 A
Voltage adjustment range 5.0 to 25.2 V 5.0 to 25.2 V
Overcurrent protection
Activates at 105% min of rated current, automatic recovery.
Overvoltage protection 30.0 to 37.2 V 30.0 to 37.2 V
Built-in functions
Remote control (RC), output alarm (LV),
Operation indicator: blue LED.
