BRNS12

BRNSseries

BRNS6
BRNS12
BRNS20

Active (NRND)
UL60950-1
C-UL (CSA60950-1)
EN62368-1

Rated Input: DC3.0 - 14.4V
Rated Output Current: 12A

• Small size and high efficiency non-isolated DC-DC converter
• Footprint and external form is DOSA 3rd generation based
• Wide input voltage
• Wide adjustment output voltage range
• Built-in remote ON/OFF, Power good, Start-up sequence, Frequency synchronization

Free warranty period 5-year

Release year: 2013

Technical features

Adjustable Output Voltage
Remote Control
Remote sensing
Alarm

Type	Model number	Description	PDF	DXF

Instruction manual
Applications manual
How to remove BRNS/BRFS series from a PWB

*Some documents may not be listed. Please contact us for more details.

CAD data download

3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

BRN⁽¹⁾ S⁽²⁾ 20⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Single output
(3) Output current
  6: 6A
  12: 12A
  20: 20A
(4) Optional
  R: Positive logic remote on/off
  I: No clock output for frequency synchronization
  Y1: Suitable control for external capacitor over 470 μF

Data sheet download Instruction manual

BRNS12 specifications (overview)

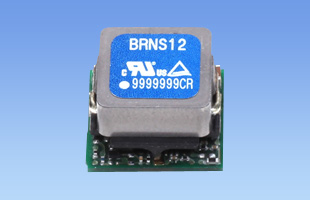

Product		BRNS12
Input voltage		DC3.0 - 14.4V
Output	Wattage
	Voltage・Current	1.2V 12.0A
	Voltage variable range	Adjustable by external resistor0.6 - 5.5V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1) , EN62368-1
Structure	External dimensions (W×H×D)	12.2x7.2x12.2mm [0.48x0.28x0.48 inches]
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data	-
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
