CESseries

CES

  • Production discontinued (May 31, 2023)
  • UL60950-1
  • C-UL (CSA60950-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA
Rated Input: DC18 - 36V, DC36 - 76V *
Rated Output Wattage: 45 - 102W
Rated Output Voltage: 1.5V,1.8V,2.5V,3.3V,5V,6V,12V,15V
*Input voltage range depends on model

• Compact DC-DC Converter in the Standard "BRICK SIZE"
• Built-in remote ON/OFF

Free warranty period 5-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

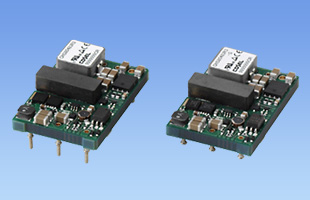

  • CHS80

    • Active
    • UL60950-1
    • C-UL (CSA60950-1)
    • EN62368-1
    • RoHS

    Rated Input：DC36 - 76V
    Rated Output Wattage：80W
    Output Voltage：3.3V,5V,12V

  • CHS120

    • Recommended products
    • UL60950-1
    • C-UL (CSA60950-1)
    • EN62368-1
    • RoHS

    Rated Input：DC18 - 36V,DC36 - 76V
    Rated Output Wattage：120W
    Output Voltage：3.3V,5V,12V,15V,24V

CE(1)  S(2)  48(3)  018(4)  -  30(5)  -  □(6)

(1) Series name
(2) Single output
(3) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(4) Output voltage
  015: 1.5V
  018: 1.8V
  025: 2.5V
  033: 3.3V
  050: 5V
  060: 6V
  120: 12V
  150: 15V
(5) Output current
(6) Optional
  S: SMD
  R: with Remote ON/OFF
    Positive logic control
  V: Ouput voltage setting ±1%
  N: Auto restart from thermal protection
Data sheet download

CES specifications (overview)

Product CES24033-25 CES24050-16 CES24120-6 CES24150-4 CES48015-30 CES48018-30 CES48025-25 CES48033-25 CES48050-16 CES48120-6 CES48150-4 CES48033-30 CES48050-20 CES48060-17
Input voltage DC18 - 36V DC18 - 36V DC18 - 36V DC20 - 33V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V DC40 - 60V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 82.5W 80.0W 72.0W 60.0W 45.0W 54.0W 62.5W 82.5W 80.0W 72.0W 60.0W 99.0W 100.0W 102.0W
Voltage・Current 3.3V 25A 5V 16A 12V 6.0A 15V 4.0A 1.5V 30.0A 1.8V 30.0A 2.5V 25.0A 3.3V 25.0A 5V 16.0A 12V 6.0A 15V 4.0A 3.3V 30.0A 5V 20.0A 6V 17.0A
Voltage variable range Fixed (TRM pin open), adjustable by external resistor-15%/+15% Fixed (TRM pin open), adjustable by external resistor-20%/+20% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-20%/+5% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-15%/+15% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-20%/+5% Fixed (TRM pin open), adjustable by external resistor-15%/+15% Fixed (TRM pin open), adjustable by external resistor-20%/+10% Fixed (TRM pin open), adjustable by external resistor-20%/+10%
Applicable standards Safety Certifications UL60950-1, C-UL (CSA60950-1) , EN62368-1
Structure External dimensions (W×H×D) 57.9x8.5x22.76mm [2.28x0.33x0.9 inches]
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
