DASseries

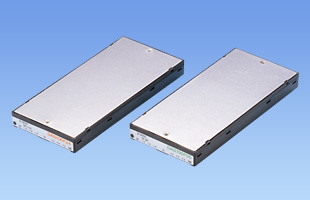

DAS100

  • Production discontinued (May 18, 2018)
  • UL60950-1
  • EN60950-1
  • CSA C22.2 No.60950-1 Complies with DEN-ANComplies with UL60950-1
  • CSA C22.2 No.60950-1 and EN60950-1
  • RoHS
    UL・C-UL
    CSA
    TUV
Rated Input: DC36 - 72V, DC88 - 370V
Rated Output Wattage: 100W
Rated Output Voltage: 5V,12V,24V

• Thin profile for single output custom power supply
• Ideal for distributed power systems
• Wide input voltage (DC88 - 370V)
• Built-in overvoltage and overcurrent protection circuits
• Built-in remote ON/OFF (Isolated from output)

Free warranty period 3-year

Technical features

Heat sink

Type Model number Description PDF DXF
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

DA(1)  S(2)  100(3)  □(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  F: DC88 - 370V
  48: DC36 - 72V
(5) Output voltage
Data sheet download

DAS100 specifications (overview)

Product DAS100F05 DAS100F12 DAS100F24 DAS1004805 DAS1004812
Input voltage DC88 - 370V DC88 - 370V DC88 - 370V DC36 - 72V DC36 - 72V
Output Wattage 100W 102W 100.8W 100W 102W
Voltage・Current 5V 20A 12V 8.5A 24V 4.2A 5V 20A 12V 8.5A
Voltage variable range Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR
Applicable standards Safety Certifications UL60950-1, EN60950-1, CSA C22.2 No.60950-1 Complies with DEN-ANComplies with UL60950-1, CSA C22.2 No.60950-1 and EN60950-1
Structure External dimensions (W×H×D) 58x12.7x130mm
Cooling method Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data Characteristic data -
Estimated life data - - - - -
EMC data - - - - -
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
