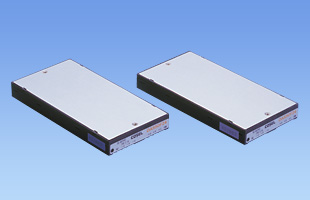

DAS50

  • Production discontinued (May 18, 2018)
  • UL60950-1
  • EN60950-1
  • CSA C22.2 No.60950-1 Complies with DEN-ANComplies with UL60950-1
  • CSA C22.2 No.60950-1 and EN60950-1
  • RoHS
    UL・C-UL
    CSA
    TUV
Rated Input: DC36 - 72V, DC88 - 370V
Rated Output Wattage: 50W
Rated Output Voltage: 5V,12V,24V

• Thin profile for single output custom power supply
• Ideal for distributed power systems
• Wide input voltage (DC88 - 370V)
• Built-in overvoltage and overcurrent protection circuits
• Built-in remote ON/OFF (Isolated from output)

Free warranty period 3-year

Release year: 1993

Technical features

Heat sink
Type Model number Description PDF DXF
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Safety certification

DA(1)  S(2)  50(3)  □(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  F: DC88 - 370V
  48: DC36 - 72V
(5) Output voltage
Data sheet download Instruction manual

DAS50 specifications (overview)

Product DAS50F05 DAS50F12 DAS50F24 DAS504805 DAS504812
Input voltage DC88 - 370V DC88 - 370V DC88 - 370V DC36 - 72V DC36 - 72V
Output Wattage 50W 50.4W 50.4W 50W 50.4W
Voltage・Current 5V 10A 12V 4.2A 24V 2.1A 5V 10A 12V 4.2A
Voltage variable range Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR Fixed (TRM pin open) ±10% adjustable by external VR
Applicable standards Safety Certifications UL60950-1, EN60950-1, CSA C22.2 No.60950-1 Complies with DEN-ANComplies with UL60950-1, CSA C22.2 No.60950-1 and EN60950-1
Structure External dimensions (W×H×D) 58x12.7x115mm
Cooling method Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data Characteristic data -
Estimated life data - - - - -
EMC data - - - - -
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
