DCS1400B

DCSseries

DCS1400B

New Product
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2No.62368-1)
EN62368-1

Rated Input: 200 - 435VDC
Rated Output Wattage: 1400W
Rated Output Voltage: 12V, 24V, 28V, 36V, 48V, 65V

• Ideal for distributed power systems
• Wide output voltage range allows for flexible voltage settings
• Output voltage can be varied to near 0V
• Constant current regulation
• Built-in ORing MOSFET (Option : -P2) * except DCS1400B65

Free warranty period 5-year

Technical features

Adjustable Output Voltage
Remote Control
Remote sensing
Alarm
Parallel Operation
Auxiliary Power

Type	Model number	Description	PDF	DXF

Instruction manual
Applications manual
PCB reference design data

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

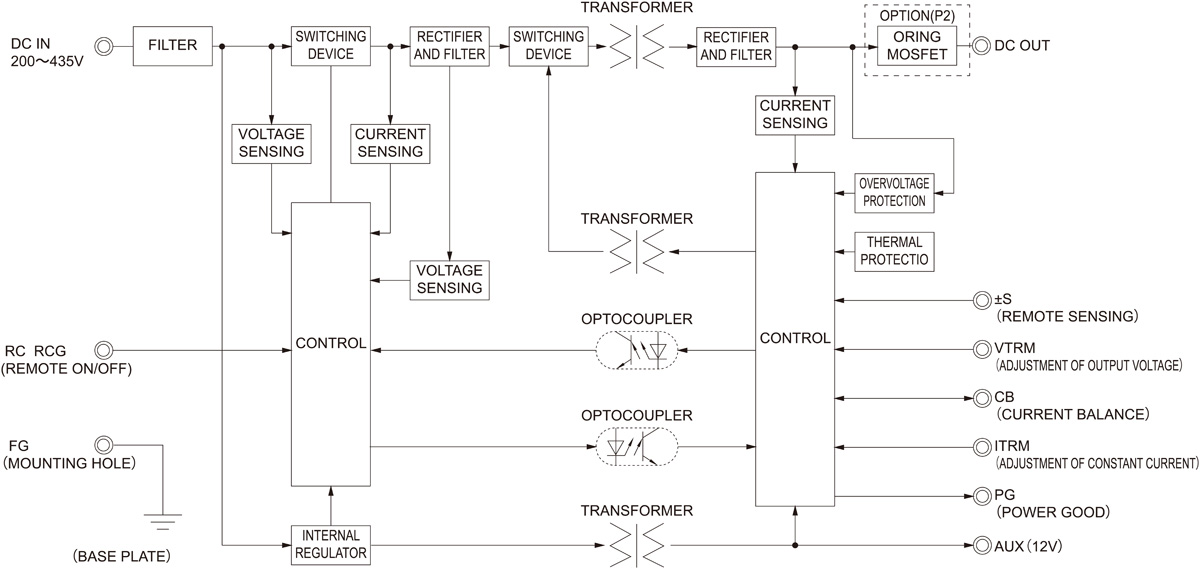

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

DC⁽¹⁾ S⁽²⁾ 1400⁽³⁾ B⁽⁴⁾ 28⁽⁵⁾ -　□⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
B : 200 - 435VDC
(5) Output voltage
(6) Optional
T : with Mounting hole (φ3.4 thru)
R : with Remote ON/OFF (Positive logic control)
N1 : Auto restart from thermal protection
P2 : Built-in ORing MOSFET　※except DCS1400B65

Data sheet download

DCS1400B specifications (overview)

Product		DCS1400B12	DCS1400B24	DCS1400B28	DCS1400B36	DCS1400B48	DCS1400B65
Input voltage		200 - 435VDC	200 - 435VDC	200 - 435VDC	200 - 435VDC	200 - 435VDC	200 - 435VDC
Output	Wattage	1200W	1404W	1400W	1404W	1401.6W	1404W
	Voltage・Current	12V 100A	24V 58.5A	28V 50A	36V 39A	48V 29.2A	65V 21.6A
	Voltage variable range	Fixed (VTRM pin open), 0 - 120% adjustable by external VR or external voltage	Fixed (VTRM pin open), 0 - 120% adjustable by external VR or external voltage	Fixed (VTRM pin open), 0 - 120% adjustable by external VR or external voltage	Fixed (VTRM pin open), 0 - 120% adjustable by external VR or external voltage	Fixed (VTRM pin open), 0 - 120% adjustable by external VR or external voltage	Fixed (VTRM pin open), 0 - 120% adjustable by external VR or external voltage
Applicable standards	Safety Certifications	UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1), EN62368-1
Structure	External dimensions (W×H×D)	116.8×12.7×61.0mm
Structure	Cooling method	Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
