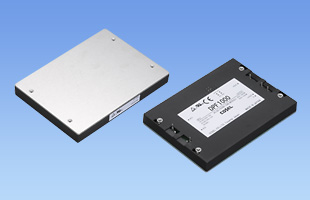

DPF1000

DPFseries

DPF1000

Active
UL60950-1
C-UL
EN62368-1
Complies with DEN-AN and IEC60950-1

Rated Input: AC85 - 264V, AC170 - 264V
Rated Output Wattage: 1000W,1500W
Rated Output Voltage: 360V

• Power factor correction module
• Parallel operation is possible (Built-in current balancing function)
• Built-in overvoltage and thermal protection circuits
• Inverter operation monitoring (IOG)
• Enable signal (ENA)

Free warranty period 5-year

Release year: 2000

Technical features

Alarm
Parallel Operation
Auxiliary Power

Type	Model number	Description	PDF	DXF

Instruction manual
PCB reference design data

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

DPF⁽¹⁾ 1000⁽²⁾

(1) Series name
(2) Output wattage

Data sheet download Instruction manual

DPF1000 specifications (overview)

Product		DPF1000
Input voltage		AC85 - 264V 1Φ AC170 - 264V 1Φ
Output	Wattage	1000W, 1500W
	Voltage・Current	360V
	Voltage variable range
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1, Complies with DEN-AN and IEC60950-1
Structure	External dimensions (W×H×D)	118.6x12.7x85mm [4.67x0.5x3.35 inches]
Structure	Cooling method	Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data	Characteristic data
	Estimated life data	-
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
