FETAseries

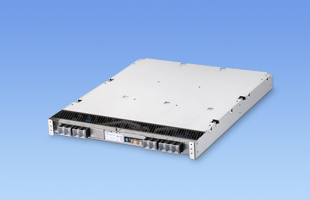

FETA7000T

  • Recommended products
  • UL62368-1
  • C-UL (CSA62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: AC170 - 264V 3Φ-3Wire
Rated Output Wattage: 7000W
Rated Output Voltage: 48V,144V

• High power density
• Low profile (Meets to 1U height )
• High output voltage (FETA7000T-144 )
• Harmonic attenuator (Complies with ＩEC61000-3-12)
• Complies with SEMI F47
• Parallel Operation/Parallel Redundancy Operation
• Alarm signals, Remote ON/OFF and other functions

Free warranty period 3-year (Refer to Instruction Manuals)

What's great about the FETA series?

High-output voltage power supply with a 1U height.
The FETA2500/7000 series offers adjustable output voltage down to approximately 0V, providing stable power tailored to the requirements of high-frequency amplifiers, servo drive applications and etc.
The FETA3000BC further accelerates variable voltage response, contributing to enhanced equipment performance.

Technical features

Harness

Type Model number Description PDF DXF
Harness
H-PA-12 Harness for parallel operation. PDF download -
H-PA-13 Harness for parallel operation and using all other functions of CN1 and CN2. PDF download -
H-SN-47 Harness for using all functions of CN1 and CN2 (Single side housing). PDF download -
H-SN-55 Harness for using all functions of CN1 and CN2 (Both side housing). PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

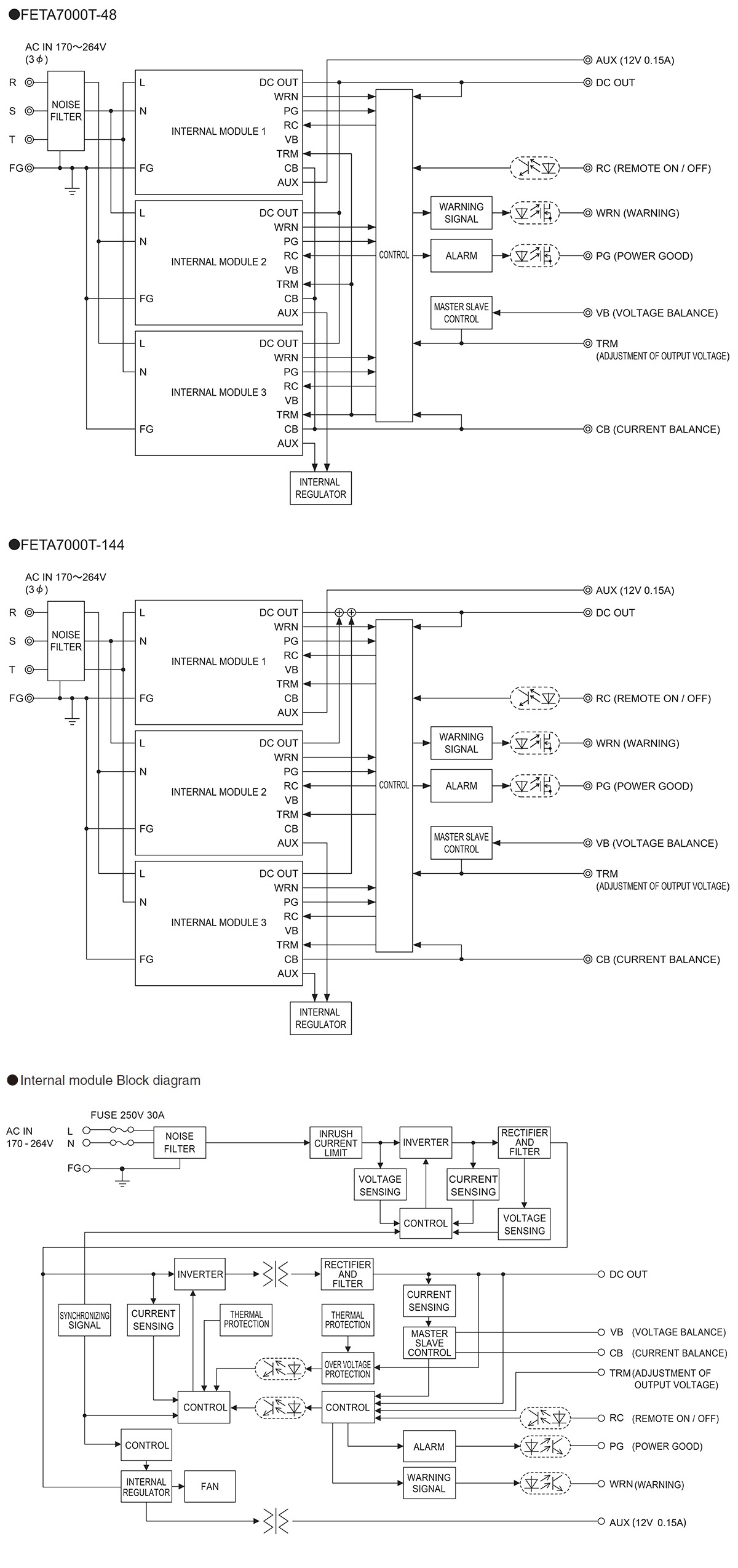

Block diagram

/tool/tag/fig/e_blo_feta7000t.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

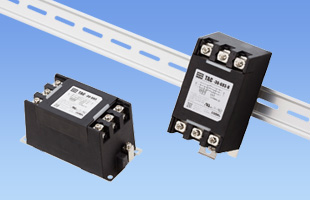

  • TAC-30-683

    • Recommended products
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC
    • RoHS
    Three phase 500VAC　30A
    General purpose
    Low profile
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

FET(1)　A(2)　7000(3)　T(4)　-　□□(5)　

(1)Series name
(2) Single output
(3) Output wattage
(4) Three-phase three-wire input
(5) Output voltage
Catalog download

FETA7000T specifications (overview)

Product FETA7000T-48 FETA7000T-144
Input voltage AC170 - 264V 3Φ-3Wire * AC170 - 264V 3Φ3-Wire *
Output Wattage 7113W 7488W
Voltage・Current 48V 148.2A 144V 52A
Voltage variable range 28.8 - 52.8V 86.4 - 158.4V
Applicable standards Safety Certifications UL62368-1, C-UL (CSA62368-1) , EN62368-1
Structure External dimensions (W×H×D) 388×43×475mm [15.28x1.69x18.70 inches]
Cooling method Forced cooling (internal fan)
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
