GHA-SNFseries

GHA500F-SNF

  • Active (NRND)
  • UL60950-1
  • ANSI/AAMI ES60601-1
  • C-UL (CSA60950-1. CAN/CSA60601-1)
  • EN60601-1 3rd
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA

Rated Input: AC90 - 264V 1Φ
Rated Output Wattage: 500W
Rated Output Voltage: 12V,15V,24V,30V,48V,56V

• Full packaged design united with GHA's features, and additional robustness
• Optical for 1U applications
• Medical and Industrial safety approvals
• Low leakage current
• Conformal coating

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

  • Auxiliary Power
  • Adjustable Output Voltage
  • Remote Control
  • Alarm
Harness
Type Model number Description PDF DXF
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

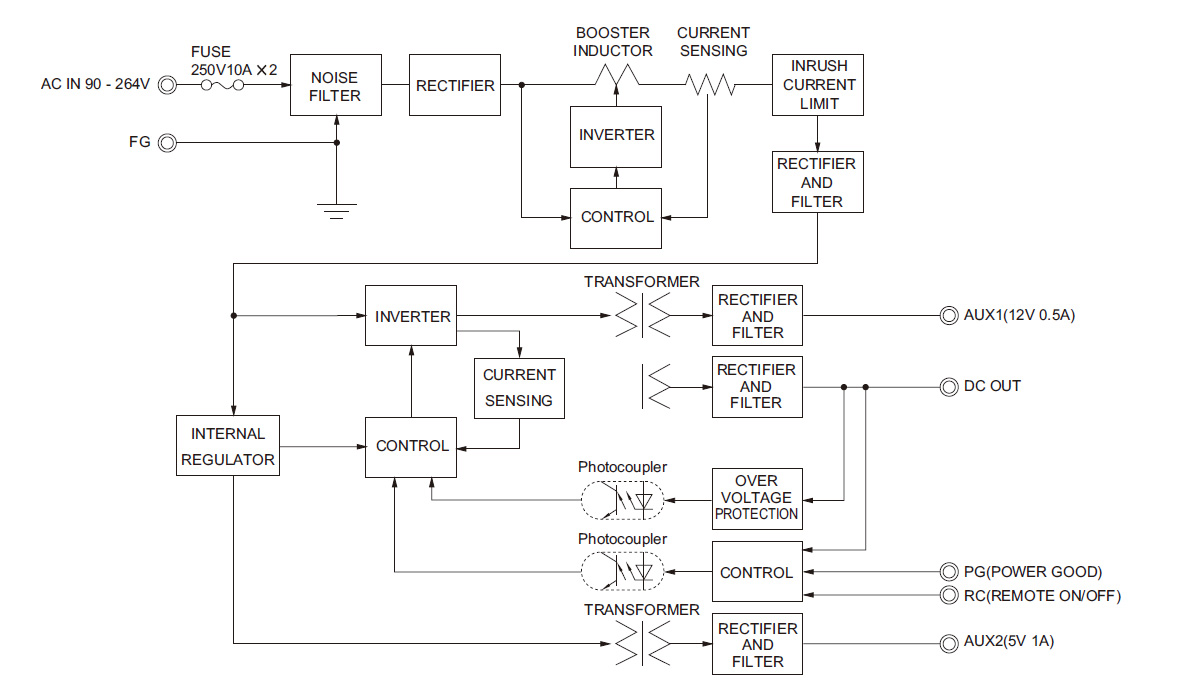

Block diagram

/tool/tag/fig/e_blo_gha500f-snf.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • EAC-10-472

    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 10A
    General purpose
    Compact size
    Attenuation type from 150kHz to 1MHz
    1-stage filter

  • PCA600F

    • Recommended products
    • UL62368-1
    • C-UL（CSA62368-1）
    • EN62368-1
    • ANSI/AAMI ES60601-1
    • EN60601-1 3rd*
    • RoHS
      PMBus

    Rated Input: 85 - 264VAC 1Φ
    Rated Output Wattage: 600W
    Rated Output Voltage:5V,12V,15V,24V,32V,48V

GH(1)  A(2)  500(3)  F(4)  -  □□(5)  -  SNF□(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 J1: CN501
    PH (J.S.T.) connector type
 P: Pallarel Operation

Refer to the instruction manual 5.1.

Data sheet download

GHA500F-SNF specifications (overview)

Product GHA500F-12-SNF GHA500F-15-SNF GHA500F-24-SNF GHA500F-30-SNF GHA500F-48-SNF GHA500F-56-SNF
Input voltage AC90 - 264V 1Φ * AC90 - 264V 1Φ * AC90 - 264V 1Φ * AC90 - 264V 1Φ * AC90 - 264V 1Φ * AC90 - 264V 1Φ *
Output Wattage 450W 501W 504W 501W 504W 504W
Voltage・Current 12V 37.5A Forced Air Cooling +50℃ 15V 33.4A Forced Air Cooling +50℃ 24V 21A Forced Air Cooling +50℃ 30V 16.7A Forced Air Cooling +50℃ 48V 10.5A Forced Air Cooling +50℃ 56V 9A Forced Air Cooling +50℃
Voltage variable range 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 27.00 - 31.50V 43.20 - 52.80V 52.00 - 56.00V
Applicable standards Safety Certifications UL60950-1, ANSI/AAMI ES60601-1, C-UL (CSA60950-1. CAN/CSA60601-1), EN60601-1 3rd, EN62368-1
Structure External dimensions (W×H×D) 85.2x41x165.3mm [3.35x1.61x6.5 inches]
Cooling method Forced air
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
