GHA500F

GHAseries

GHA300F
GHA500F
GHA700F

Active
UL60950-1
ANSI/AAMI ES60601-1
C-UL (CSA60950-1. CAN/CSA60601-1)
EN60601-1 3rd
EN62368-1

Rated Input: AC90 - 264V 1Φ
Rated Output Wattage: 500W
Rated Output Voltage: 12V,15V,24V,30V,48V,56V

• Wattage 500W max
• High Power density: 24.1W/inch³
• High efficiency 92% typ (Input Voltage 230V, Output Voltage 24V)
• Conduction cooling
• 3x 5standard footprint
• Fits 1U applications
• Industrial and Medical safety approvals
• Low leakage current
• With Remote On/Off (Optional)
• With AUX1 (12V) , AUX2 (5V) (Optional)
• No minimum load is required

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the GHA series?

High power density power supply in a world-standard inch size.
Supports two cooling methods: forced-air cooling for high-power applications and conduction cooling.
Ideal for equipment requiring silent operation, such as MRI and dialysis machines, as well as measurement and communication devices that demand high environmental resistance.

Technical features

Auxiliary Power
Adjustable Output Voltage
Remote Control
Alarm

<p>Harness</p>

Type	Model number	Description	PDF	DXF
Harness
	H-IN-17	Mating harness for input of the connector type power supply.	PDF download	-
	H-IN-18	Mating harness for input of the connector type power supply with J option.	PDF download	-
	H-SN-34	Harness for using all function.	PDF download	-
	H-SN-35	Harness for using AUX(5V) remote control and PG terminal.	PDF download	-
	H-SN-38	Harness for using all functions.	PDF download	-
	H-SN-39	Harness for using AUX(5V) remote control and PG terminal.	PDF download	-
	H-SN-79	Harness for using all functions. (AWG24 for 1A)	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model J1:VH (J.S.T.) connector type
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

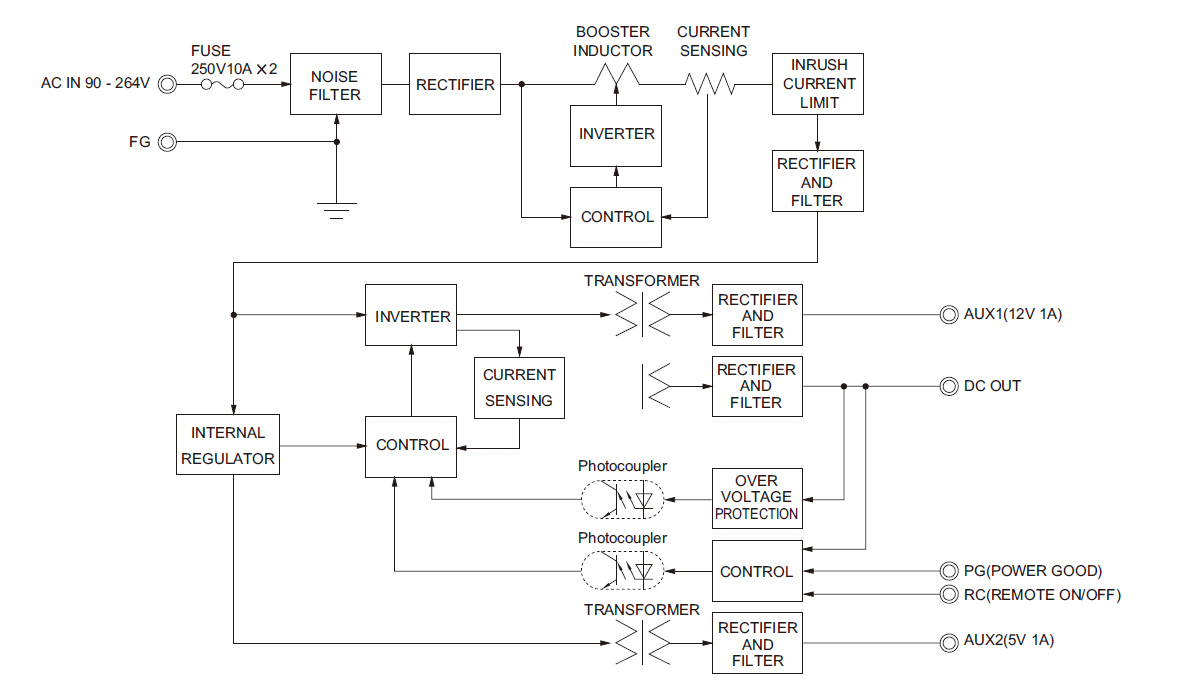

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

EAC-10-472
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 10A
General purpose
Compact size
Attenuation type from 150kHz to 1MHz
1-stage filter

GH⁽¹⁾ A⁽²⁾ 500⁽³⁾ F⁽⁴⁾ - □□⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
T3: mounting hole M3
J1: VH (J.S.T.) connector type
J3:Horizontal input connector
VH (J.S.T.) connector type
R3: with Subfeatures (5VAUX, 12VAUX, Remote, Power good)
P: Pallarel Operation

Specification is changed at option, refer to Instruction manual.

Data sheet download

GHA500F specifications (overview)

Product		GHA500F-12	GHA500F-15	GHA500F-24	GHA500F-30	GHA500F-48	GHA500F-56
Input voltage		AC90 - 264V 1Φ *	AC90 - 264V 1Φ *	AC90 - 264V 1Φ *	AC90 - 264V 1Φ *	AC90 - 264V 1Φ *	AC90 - 264V 1Φ *
Output	Wattage	500.4W	501W	504W	501W	504W	504W
	Voltage・Current	12V 41.7A Forced Air Cooling +50℃ 12V 12.5A Convection Cooling +40℃ 12V 9.2A Convection Cooling +50℃ 12V 30A conduction cooling +0℃ 12V 16.7A conduction cooling +50℃	15V 33.4A Forced Air Cooling +50℃ 15V 10A Convection Cooling +40℃ 15V 7.4A Convection Cooling +50℃ 15V 24A conduction cooling +0℃ 15V 13.4A conduction cooling +50℃	24V 21A Forced Air Cooling +50℃ 24V 6.3A Convection Cooling +40℃ 24V 4.6A Convection Cooling +50℃ 24V 15A conduction cooling +0℃ 24V 8.4A conduction cooling +50℃	30V 16.7A Forced Air Cooling +50℃ 30V 5A Convection Cooling +40℃ 30V 3.7A Convection Cooling +50℃ 30V 12A conduction cooling +0℃ 30V 6.7A conduction cooling +50℃	48V 10.5A Forced Air Cooling +50℃ 48V 3.2A Convection Cooling +40℃ 48V 2.3A Convection Cooling +50℃ 48V 7.5A conduction cooling +0℃ 48V 4.2A conduction cooling +50℃	56V 9A Forced Air Cooling +50℃ 56V 2.7A Convection Cooling +40℃ 56V 1.9A Convection Cooling +50℃ 56V 6.4A conduction cooling +0℃ 56V 3.6A conduction cooling +50℃
	Voltage variable range	10.80 - 13.20V	13.50 - 16.50V	21.60 - 26.40V	27.00 - 31.50V	43.20 - 52.80V	52.00 - 56.00V
Applicable standards	Safety Certifications	UL60950-1, ANSI/AAMI ES60601-1, C-UL (CSA60950-1. CAN/CSA60601-1), EN60601-1 3rd, EN62368-1
Structure	External dimensions (W×H×D)	76.2x35x127mm [3.0x1.4x5.0 inches]
Structure	Cooling method	Convection, Forced air (Require external fan) , Conduction cooling
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
