GHA700F

GHAseries

GHA300F
GHA500F
GHA700F

New Product
Recommended products
UL62368-1
ANSI/AAMI ES60601-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1. CAN/CSA-C22.2 No.60601-1)
EN62368-1
EN60601-1 3rd
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 700W
Rated Output Voltage: 12V, 24V, 30V, 48V, 56V

• Wattage 700W max
• High Power density: 31.1W/inch³
• High efficiency 96% typ (Input Voltage 230V, Output Voltage 24V)
• Conduction cooling
• 3x 5standard footprint
• Fits 1U applications
• Industrial and Medical safety approvals (Suitable for BF application)
• Low leakage current
• With Remote On/Off (Optional)
• Isolated dual AUX (AUX1 12V 1A, AUX2 5V 1A) (Optional)
*AUX1 excluding GHA700F-12
• Conformal coating (Optional)
• Complies with EN61558-2-16 (OVC III)

Free warranty period 5-year (Refer to Instruction Manuals)

Release year: 2023

What's great about the GHA series?

High power density power supply in a world-standard inch size.
Supports two cooling methods: forced-air cooling for high-power applications and conduction cooling.
Ideal for equipment requiring silent operation, such as MRI and dialysis machines, as well as measurement and communication devices that demand high environmental resistance.

Technical features

Auxiliary Power
Adjustable Output Voltage
Remote Control
Alarm

Harness, External Capacitor unit

Type	Model number	Description	PDF	DXF
External Capacitor unit
	CR-HUT241-1	External capacitor unit to extend Hold-up time. (Capacitance : 240uF)	PDF download	-
	CR-HUT721-1	External capacitor unit to extend Hold-up time. (Capacitance : 720uF)	PDF download	-
	CR-HUT282-2	External capacitor unit to extend Hold-up time. (Capacitance : 2,800uF)	PDF download	-
	CR-HUT502-2	External capacitor unit to extend Hold-up time. (Capacitance : 5,040uF)	PDF download	-
Harness
	H-IN-25	Mating harness for connecting the external capacitor unit.	PDF download	-
	H-IN-26	Mating harness for input of the connector type power supply with J1 option.	PDF download	-
	H-SN-38	Harness for using all functions.	PDF download	-
	H-SN-39	Harness for using AUX(5V) remote control and PG terminal.	PDF download	-
	H-SN-79	Harness for using all functions. (AWG24 for 1A)	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (GHA700F-12) Standard model (Excluding GHA700F-12)
3D CAD data	STEP	Standard model (GHA700F-12) Standard model (Excluding GHA700F-12)
3D CAD data	IGES	Standard model (GHA700F-12) Standard model (Excluding GHA700F-12)

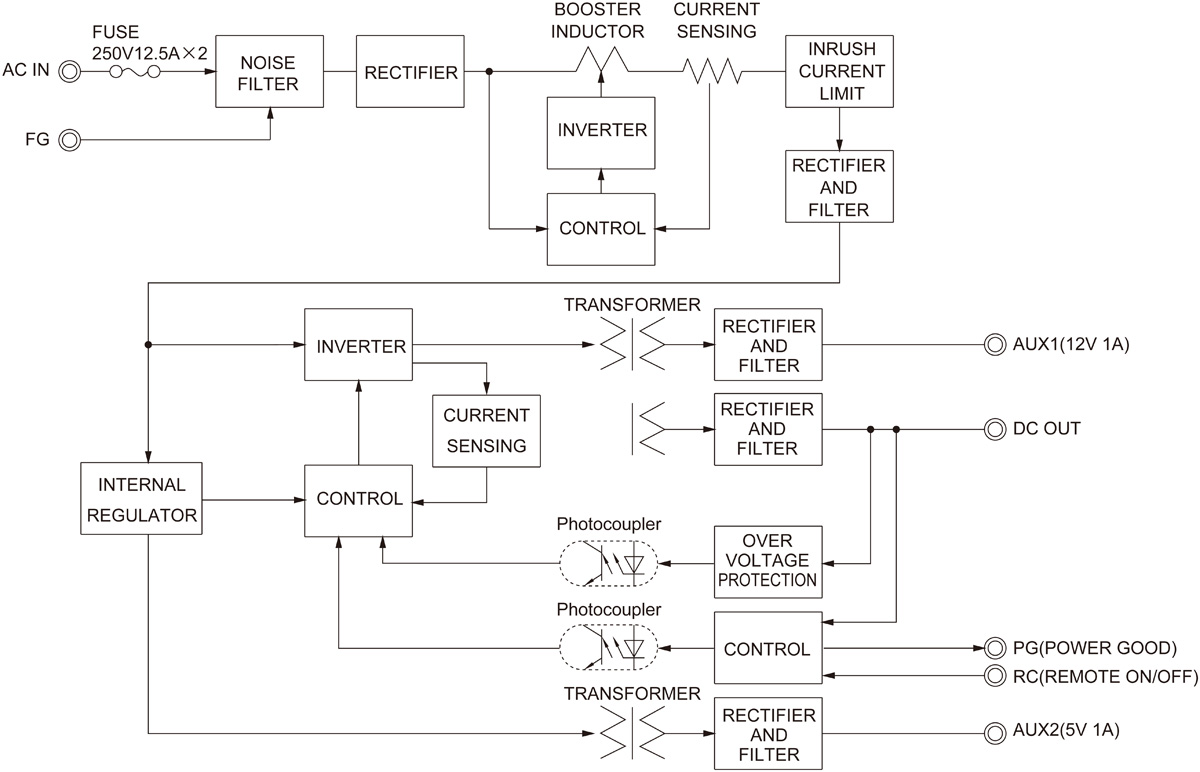

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

EAC-16-472
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 16A
General purpose
Compact size
Attenuation type from 150kHz to 1MHz
1-stage filter

GH⁽¹⁾ A⁽²⁾ 700⁽³⁾ F⁽⁴⁾ - □□⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
E: IEC Class Ⅱ
R3: with Subfeatures (5VAUX, 12VAUX, Remote, Power good)
T3: mounting hole M3
U1: can attach an external capacitor unit

Specification is changed at option, refer to Instruction manual.

Data sheet download Instruction manual

GHA700F specifications (overview)

Product		GHA700F-12-J1	GHA700F-24-J1	GHA700F-30-J1	GHA700F-48-J1	GHA700F-56-J1
Input voltage		AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *
Output	Wattage	650.4W	700.8W	699.0W	700.8W	700.0W
	Voltage・Current	12V 54.2A Forced Air Cooling +50℃ 12V 33.4A Convection Cooling +30℃ 12V 22.2A Convection Cooling +50℃ 12V 33.4A conduction cooling +50℃	24V 29.2A Forced Air Cooling +50℃ 24V 16.7A Convection Cooling +30℃ 24V 11.1A Convection Cooling +50℃ 24V 16.7A conduction cooling +50℃	30V 23.3A Forced Air Cooling +50℃ 30V 13.4A Convection Cooling +30℃ 30V 8.9A Convection Cooling +50℃ 30V 13.4A conduction cooling +50℃	48V 14.6A Forced Air Cooling +50℃ 48V 8.4A Convection Cooling +30℃ 48V 5.6A Convection Cooling +50℃ 48V 8.4A conduction cooling +50℃	56V 12.5A Forced Air Cooling +50℃ 56V 7.2A Convection Cooling +30℃ 56V 4.8A Convection Cooling +50℃ 56V 7.2A conduction cooling +50℃
	Voltage variable range	11.40 - 13.20V	22.80 - 26.40V	28.50 - 33.00V	45.60 - 52.80V	53.20 - 61.60V
Applicable standards	Safety Certifications	UL62368-1, ANSI/AAMI ES60601-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1. CAN/CSA-C22.2 No.60601-1), EN62368-1, EN60601-1 3rd, Complies with DEN-AN
Structure	External dimensions (W×H×D)	76.2x38.1x127mm [3.0x1.5x5.0 inches]
Structure	Cooling method	Convection, Forced air (Require external fan) , Conduction cooling
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
