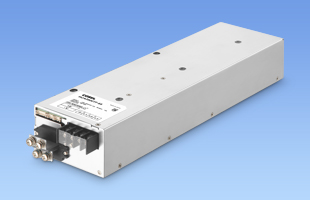

HCAseries
Rated Input: 180 - 528VAC 3Φ-3Wire
Rated Output Wattage: 3500W
Rated Output Voltage: 48V, 65V
• Fanless (Conduction cooling)
• Low profile (65mm, 2.56 inch = Meet 1.5U height)• Parallel Operation / N+1 Parallel Redundancy Operation
• Built-in ORING MOSFET
• Complies with SEMI F47
Free warranty period 5-year (Refer to Instruction Manuals)
Supports a wide input range of 200–480V to accommodate power standards worldwide.
The conduction-cooled (water-cooled) type is ideal for equipment requiring high environmental resistance.
Compatible with cooling plates for laser and high-frequency equipment, enabling smooth and efficient thermal design.
Harness, Heat sink (Water-cooled)
| Type | Model number | Description | DXF | |
|---|---|---|---|---|
| Heat sink | ||||
| F-HCA-F1 | Heatsink (water cooled) for HCA3500TF. | PDF download | - | |
| Harness | ||||
| H-PA-18 | Harness for parallel operation.(Both side housing) | PDF download | - | |
| H-SN-74 | Harness for using functions of CN1 and CN2.(Single side housing) | PDF download | - | |
| H-SN-75 | Harness for using functions of CN3 without digital communication. (Single side housing) | PDF download | - | |
| H-SN-76 | Harness for using functions of CN3. (Single side housing) (For -I4 option) | PDF download | - |
*Some documents may not be listed. Please contact us for more details.

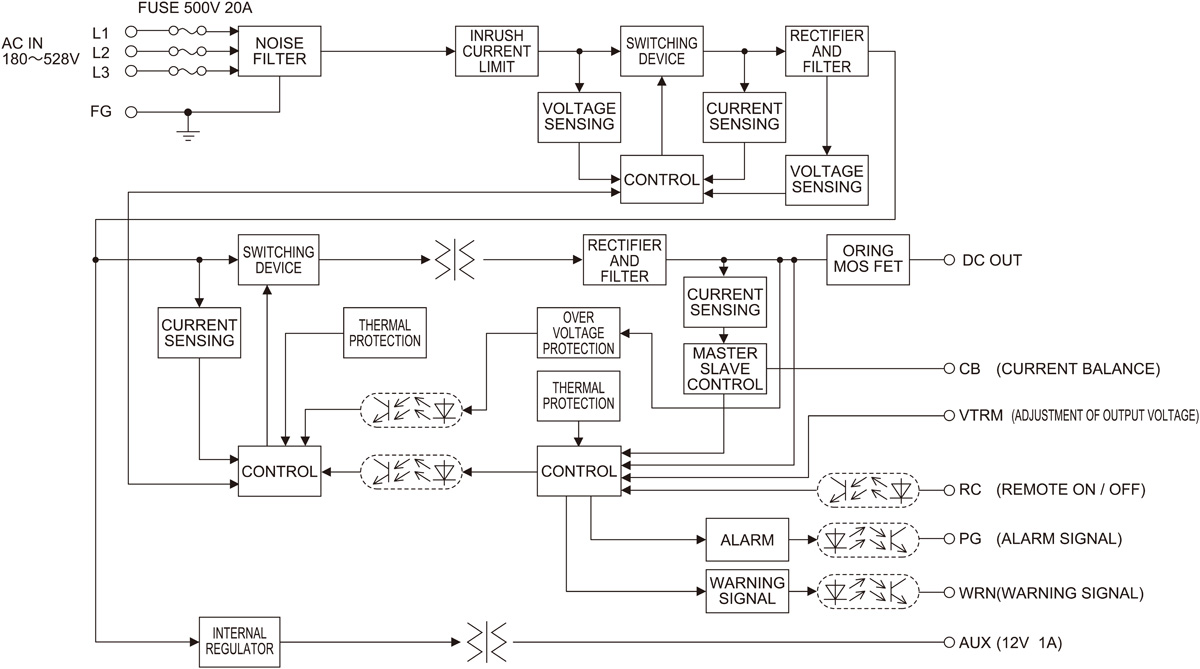

HC(1) A(2) 3500(3) TF(4) - □□(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) 3 phase full range input
(5) Output voltage
(6) Optional
R: with Remote ON/OFF Positive logic control
G: Low leakage current
T1: Different shaped output terminal
I4: with MODBUS interface
Specification is changed at option, refer to Instruction manual.
* For further information and how to use, please see in Cosel product catalog.
