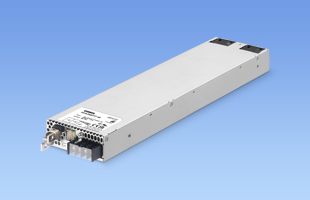

HFA3500TF

HFAseries

HFA3500TF

New Product
Recommended products
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1)
EN62368-1

Rated Input: 180 - 528VAC 3Φ-3Wire
Rated Output Wattage: 3500W
Rated Output Voltage: 48V, 65V, 90V, 130V, 200V, 300V

• Low profile (41mm, 1.61 inch = Meet 1U height)
• Complies with SEMI F47
• Parallel Operation / N+1 Parallel Redundancy Operation
• Built-in ORING DEVICE

Free warranty period 5-year (Refer to Instruction Manuals)

Release year: 2024

What's great about the HFA series?

Supports a wide input range of 200–480V, compatible with power voltages in countries around the world. No need for destination-specific management.
The forced-air cooling type (with built-in fan) features a simple heat dissipation structure, providing convenient and efficient cooling.

Introducing serial communication functions option for the AEA, HCA and HFA series

Technical features

Auxiliary Power
Parallel Operation
Alarm

Harness

Type	Model number	Description	PDF	DXF
Harness
	H-PA-18	Harness for parallel operation.(Both side housing)	PDF download	-
	H-SN-74	Harness for using functions of CN1 and CN2.(Single side housing)	PDF download	-
	H-SN-75	Harness for using functions of CN3 without digital communication. (Single side housing)	PDF download	-
	H-SN-76	Harness for using functions of CN3. (Single side housing) (For -I4 option)	PDF download	-

Instruction manual
Optional parts (sold separately)
HFA Series MODBUS Communication Manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	48V, 65V Standard model (includes R, G, I4 option) 90V, 130V, 200V, 300V Standard model
3D CAD data	STEP	48V, 65V Standard model (includes R, G, I4 option) 90V, 130V, 200V, 300V Standard model
3D CAD data	IGES	48V, 65V Standard model (includes R, G, I4 option) 90V, 130V, 200V, 300V Standard model

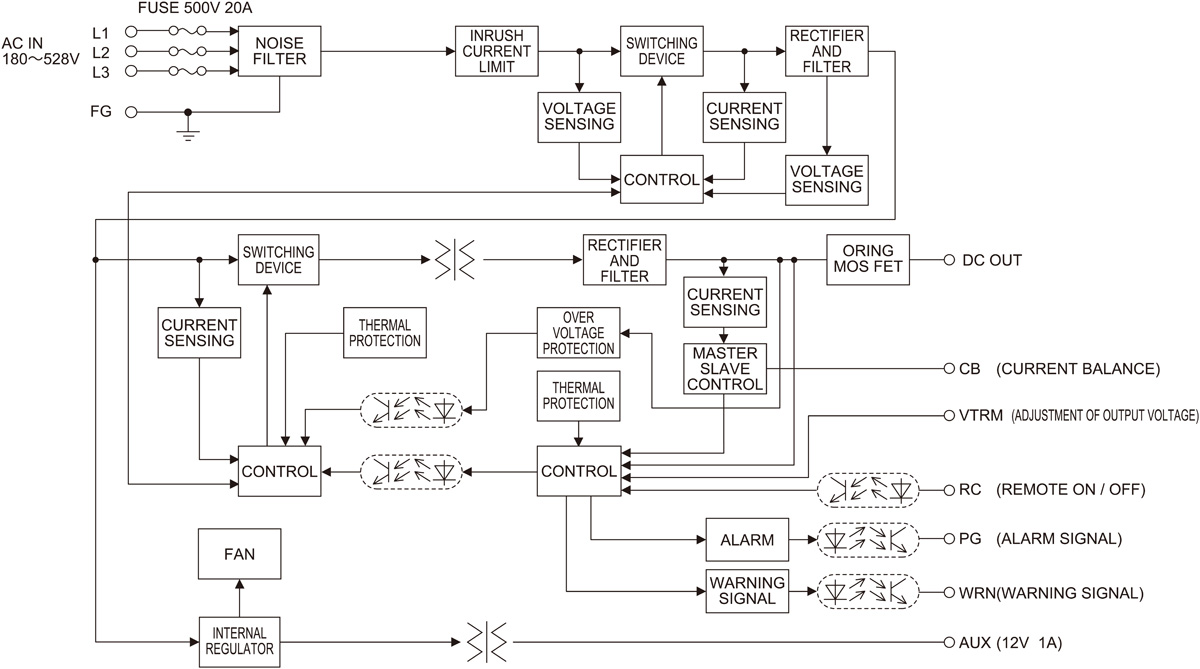

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

TAC-30-683
- Recommended products
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC
Three phase 500VAC　30A
General purpose
Low profile
High-attenuation type from 150kHz to 1MHz
1-stage filter

HF⁽¹⁾ A⁽²⁾ 3500⁽³⁾ TF⁽⁴⁾ - □□⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) 3 phase full range input
(5) Output voltage
(6) Optional
R: with Remote ON/OFF Positive logic control
G: Low leakage current
I4: with MODBUS interface
Specification is changed at option, refer to Instruction manual.

Data sheet download Instruction manual

HFA3500TF specifications (overview)

Product		HFA3500TF-48	HFA3500TF-65	HFA3500TF-90	HFA3500TF-130	HFA3500TF-200	HFA3500TF-300
Input voltage		180 - 528VAC 3Φ *	180 - 528VAC 3Φ *	180 - 528VAC 3Φ *	180 - 528VAC 3Φ *	180 - 528VAC 3Φ *	180 - 528VAC 3Φ *
Output	Wattage	3504W	3510W	3510W	3510W	3500W	3510W
	Voltage・Current	48V 73A	65V 54A	90V 39A	130V 27A	200V 17.5A	300V 11.7A
	Voltage variable range	24.00 to 55.20V	32.50 to 74.75V	45.00 to 105.00V	65.00 to 170.00V	100.00 to 260.00V	200.00 to 400.00V
Applicable standards	Safety Certifications	UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1
Structure	External dimensions (W×H×D)	110x41x468mm [4.33x1.61x18.43 inches] (without terminal block)
Structure	Cooling method	Forced cooling (internal fan)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
