KHseries

KHNA90F

  • Active
  • UL60950-1
  • C-UL (CSA60950-1)
  • EN62368-1
  • UL508 (AC input only)
  • NEC Class2 (24V output only option -E) (AC input only)
  • ANSI/ISA12.12.01 (AC input only)
  • ATEX (AC input only)
  • Complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA

Rated Input: AC85 - 264V 1Φ/DC88 - 250V
Rated Output Wattage: 90W
Rated Output Voltage: 12V,24V

• For DIN（35mm）rail products
• Wide operating ambient temperature range
• I/O terminal has 2 types, Euro Style and Barrier Blocks Style
• Complies with SEMI F-47（Derating is required）

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

  • Adjustable Output Voltage
  • Operating LED
  • Remote Control
  • Alarm
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

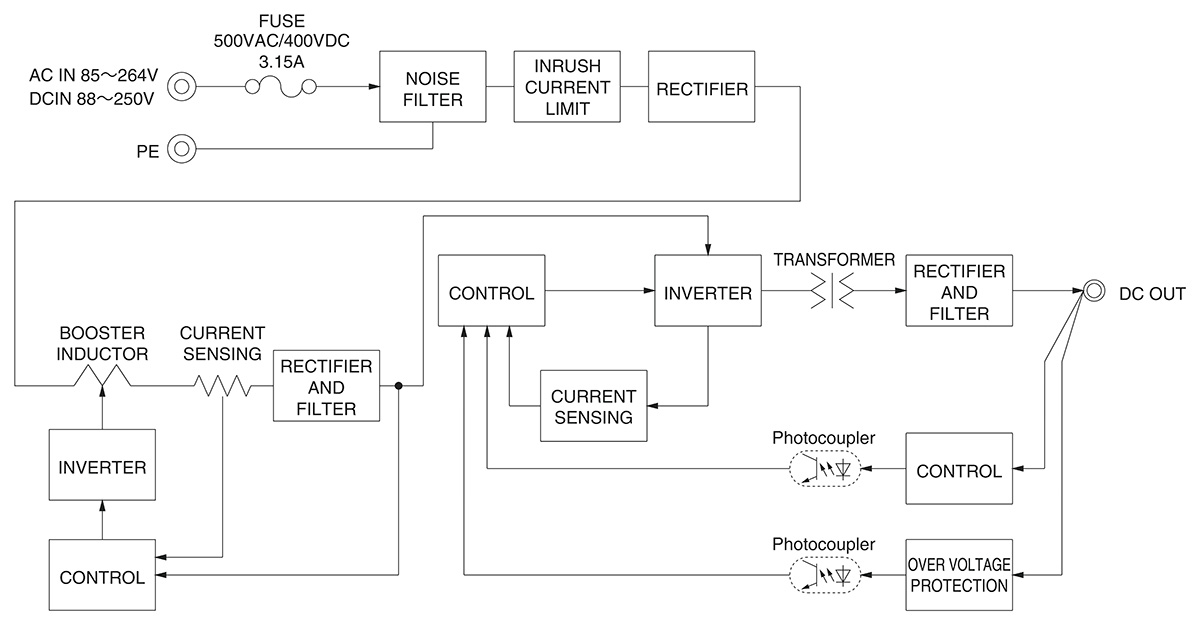

Block diagram

/tool/tag/fig/e_blo_kh90f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-04-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 4A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

KH□(1)  A(2)  90(3)  F(4)  -  □□(5)  -  □(6)

(1) Series name
KHE: Euro style I/O terminals
KHN: Barrier blocks style I/O terminals
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
  C: with Coating
  E: NEC Class2 (24V)

3D product images are available.

Read Me First
Standard model

Data sheet download

KHNA90F specifications (overview)

Product KHNA90F-12 KHNA90F-24
Input voltage AC85 - 264V 1Φ or DC88 - 250V AC85 - 264V 1Φ or DC88 - 250V
Output Wattage 81.6W 91.2W
Voltage・Current 12V 6.8A 24V 3.8A
Voltage variable range 10.80 - 13.20V 22.50 - 28.50V (Fixed for option -E)
Applicable standards Safety Certifications UL60950-1, C-UL (CSA60950-1), EN62368-1,UL508 (AC input only), NEC Class2 (24V output only option -E) (AC input only), ANSI/ISA12.12.01 (AC input only), ATEX (AC input only), Complies with DEN-AN
Structure External dimensions (W×H×D) 50x90x90mm [1.97x3.54x3.54 inches]
Cooling method Convection
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
