KLNA240F

KLseries

Active
UL60950-1
C-UL (CSA60950-1)
EN62368-1
UL508
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 240W
Rated Output Voltage: 24V,48V

• For DIN（35mm）rail products
• Wide operating ambient temperature range
• I/O terminal has 2 types, Euro Style and Barrier Blocks Style
• Complies with SEMI F-47（Derating is required）

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

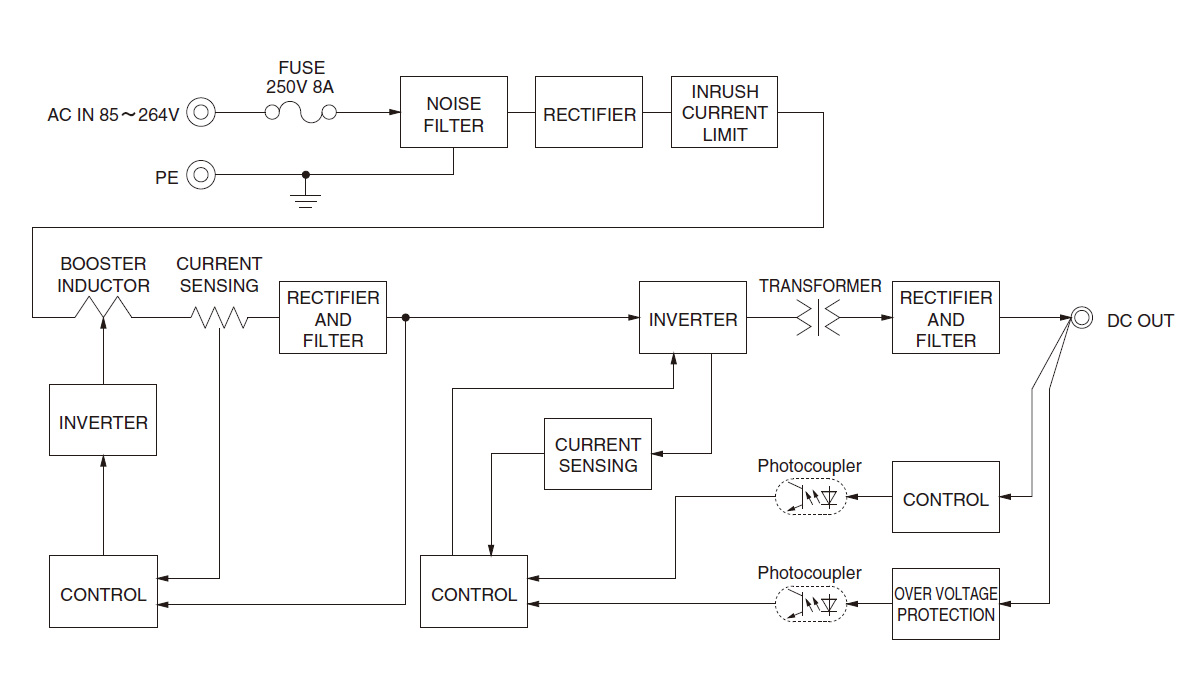

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

KL□⁽¹⁾ A⁽²⁾ 240⁽³⁾ F⁽⁴⁾ - □□⁽⁵⁾ - □⁽⁶⁾

(1) Series name
KHE: Euro style I/O terminals
KHN: Barrier blocks style I/O terminals
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
C: with Coating
N2: Screw mounting

Data sheet download

KLNA240F specifications (overview)

Product		KLNA240F-24	KLNA240F-48
Input voltage		AC85 - 264V 1Φ *	AC85 - 264V 1Φ *
Output	Wattage	240W	240W
	Voltage・Current	24V 10A	48V 5A
	Voltage variable range	21.60 - 26.40V	43.20 - 52.80V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1) , EN62368-1, UL508, Complies with DEN-AN
Structure	External dimensions (W×H×D)	50x124x117mm [1.97x4.88x4.61 inches]
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
