LCAseries

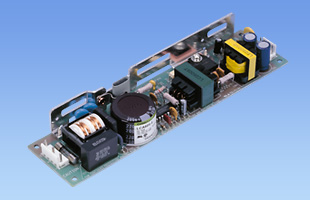

LCA50S

  • Production discontinued (April 20, 2020)
  • UL60950-1
  • CSA C22.2 No.60950-1 Complies with DEN-AN
  • RoHS
    UL・C-UL
    CSA
Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 50W
Rated Output Voltage: 3V,5V,12V,15V,24V,36V,48V

• Compact Open Frame construction
• Built-in inrush current, overcurrent and overvoltage protection circuits

Free warranty period 2-year

Technical features

Harness

Type Model number Description PDF DXF
Harness
H-IN-5 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-10 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-OU-9 Mating harness for output of the connector type power supply. (Mfr : J.S.T.) PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

  • NAC-06-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 6A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

LC(1)  A(2)  50(3)  S(4)  -  5(5)  -  □(6)

(1) Series name
(2) 100/120V input
(3) Output wattage
(4) Single output
(5) Output voltage
(6) Optional *
  C: with Coating
  G: Low leakage current
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
Data sheet download

LCA50S specifications (overview)

Product LCA50S-3 LCA50S-5 LCA50S-12 LCA50S-15 LCA50S-24 LCA50S-24-H LCA50S-36 LCA50S-48
Input voltage AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V AC85 - 132V 1Φ or DC110 - 170V
Output Wattage 30W 50W 51.6W 52.5W 60W 60W 61.2W 62.4W
Voltage・Current 3V 10A 5V 10A 12V 4.3A 15V 3.5A 24V 2.5A 24V 2.5A (Peak: 3A) 36V 1.7A 48V 1.3A
Voltage variable range 2.85 - 3.6V Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%) Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%) Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%) Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%) Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%) Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%) Fixed ("Y" which can be adjusted the output is available as optional: 5, 12, 15, 24, 36, 48V ±10%)
Applicable standards Safety Certifications UL60950-1, CSA C22.2 No.60950-1 Complies with DEN-AN
Structure External dimensions (W×H×D) 50x25x195mm
Cooling method Convection
Technical data Characteristic data
Estimated life data -
EMC data - - - - - - - -
Reliability
MTBF -

* For further information and how to use, please see in Cosel product catalog.
