LEA150F

LEAseries

LEA50F
LEA75F
LEA100F
LEA150F

Production discontinued (November 18, 2022)
UL60950-1
C-UL
EN62368-1 Complies with DEN-AN and IEC60950-1

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 3.3V,5V,9V,12V,15V,18V,24V,30V,48V

• Compact Open Frame construction
• Harmonic attenuator (Complies with IEC61000-3-2)
• Remote ON/OFF (Option)

Free warranty period 2-year

Technical features

Harness

Type	Model number	Description	PDF	DXF
Harness
	H-IN-5	Mating harness for input of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-IN-10	Mating harness for input of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-OU-11	Mating harness for output of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-OU-12	Mating harness for output of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-RC-1	Harness for using option : -R.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

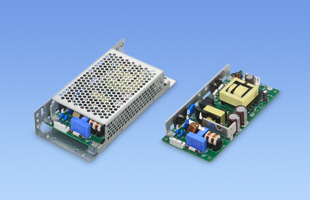

LHA150F
- New Product
- Recommended products
- UL62368-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
- EN62368-1
- EN62477-1 (Overvoltage category Ⅲ)
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 12V,24V,36V,48V
LHP150F
- New Product
- Recommended products
- UL62368-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
- EN62368-1
- EN62477-1 (Overvoltage category Ⅲ)
- Complies with DEN-AN*
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 24V,30V,36V,42V,48V

LEA⁽¹⁾ 150⁽²⁾ F⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  J2: Mini terminal block
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.

Data sheet download

LEA150F specifications (overview)

Product		LEA150F-3R3-Y	LEA150F-5	LEA150F-9	LEA150F-12	LEA150F-15	LEA150F-18	LEA150F-24	LEA150F-24-H	LEA150F-30	LEA150F-48
Input voltage		AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V	AC85 - 264V 1Φ or DC120 - 370V
Output	Wattage	99W	150W	153W	150W	150W	153W	151.2W	151.2W	150W	153.6W
	Voltage・Current	3.3V 30A	5V 30A	9V 17A	12V 12.5A	15V 10A	18V 8.5A	24V 6.3A	24V 6.3A (Peak: 7.5A)	30V 5A	48V 3.2A
	Voltage variable range	2.85 - 3.6V	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1
Structure	External dimensions (W×H×D)	75x40x222mm
Structure	Cooling method	Convection
Technical data	Characteristic data			-					-
	Estimated life data								-
	EMC data								-
	Reliability
	MTBF								-

* For further information and how to use, please see in Cosel product catalog.
