LGA75A

LGAseries

Active (NRND)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 75W
Rated Output Voltage: 3.3V,5V,12V,15V,24V,48V

• Compact Open Frame construction
• Built-in inrush current, overcurrent and overvoltage protection circuits

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Open Frame
SN：with Chassis & cover

Harness

Type	Model number	Description	PDF	DXF
Harness
	H-IN-5	Mating harness for input of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-IN-10	Mating harness for input of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-IN-12	Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics)	PDF download	-
	H-OU-18	Mating harness for output of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-OU-29	Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics)	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (includes SN option)
3D CAD data	STEP	Standard model (includes SN option)
3D CAD data	IGES	Standard model (includes SN option)

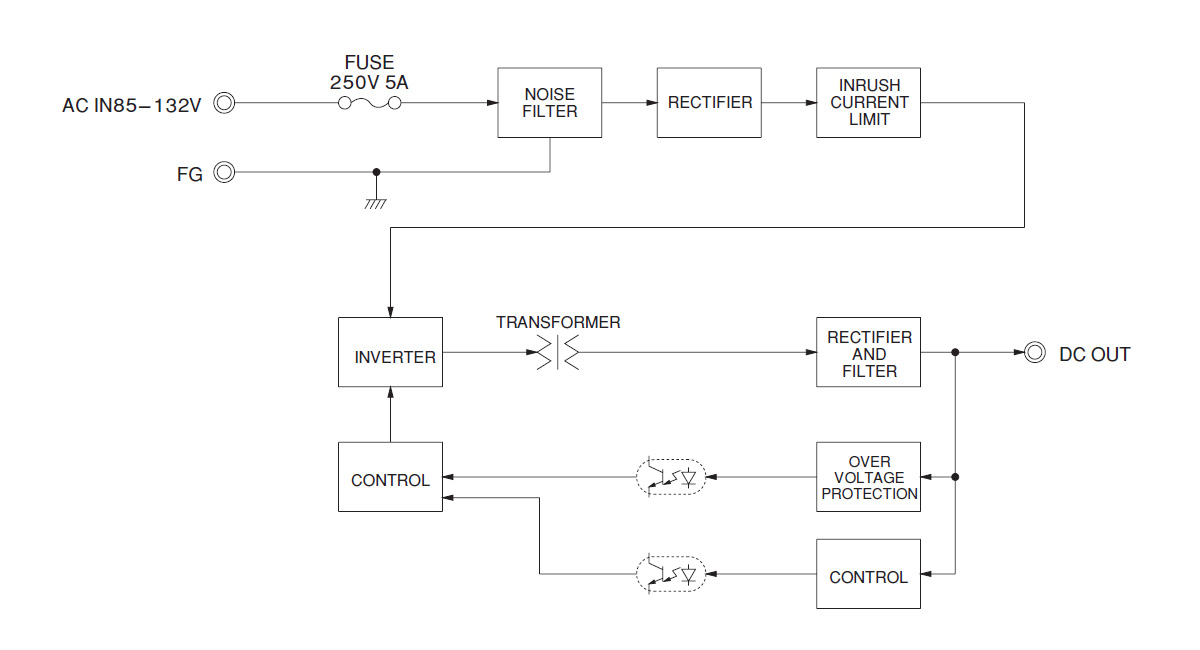

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

LHA75F
- New Product
- Recommended products
- UL62368-1
- C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
- EN62368-1
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 75W
Rated Output Voltage: 3.3V,5V,12V,15V,24V,36V,48V

LG⁽¹⁾ A⁽²⁾ 75⁽³⁾ A⁽⁴⁾ - 5⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) 100/120V input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Data sheet download

LGA75A specifications (overview)

Product		LGA75A-3R3-Y	LGA75A-5	LGA75A-12	LGA75A-15	LGA75A-24	LGA75A-24-H	LGA75A-48
Input voltage		AC85 - 132V 1Φ *	AC85 - 132V 1Φ *	AC85 - 132V 1Φ *	AC85 - 132V 1Φ *	AC85 - 132V 1Φ *	AC85 - 132V 1Φ *	AC85 - 132V 1Φ *
Output	Wattage	49.5W	75W	75.6W	75W	76.8W	76.8W	76.8W
	Voltage・Current	3.3V 15A	5V 15A	12V 6.3A	15V 5A	24V 3.2A	24V 3.2(Peak 4.2)A	48V 1.6A
	Voltage variable range	2.85 - 3.63V	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)	Fixed ("Y" which can be adjusted the output is available as optional ±10%)
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	50x34.5x150mm [1.97x1.36x5.91 inches]
Structure	Cooling method	Convection (Refer to Instruction Manual 3.2)
Technical data	Characteristic data						-
	Estimated life data						-
	EMC data						-
	Reliability
	MTBF						-

* For further information and how to use, please see in Cosel product catalog.
