LHAseries

LHA10F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 10W
Rated Output Voltage: 3.3V,5V,12V,15V,24V

• Compact Open Frame construction
• Harmonic attenuator (Complies with IEC61000-3-2)
• Extensive optional parts such as dedicated harness are available
• Low leakage current (0.15mAmax at AC240V,60Hz)
• Low power consumption at no load (0.4Wtyp at AC230V)
• Complies with SEMI F47 (Refer to section 1.1 of the instruction manuals)

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the LHA series?

Standard open-frame power supply
Featuring an exclusive zero-voltage switching design for low noise and superior efficiency.
Up to 50% smaller than previous models, offering greater design flexibility and a reduced environmental footprint.
LHA150F/300F complies with EN62477-1 OVCⅢ, enabling compact and lightweight designs.

Technical features

  • Open Frame
  • SN：with Chassis & cover

Harness

Type Model number Description PDF DXF
Harness
H-IN-5 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-10 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-OU-34 Mating harness for output of the connector type power supply. (Mfr : J.S.T.) PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
SN:with Chassis and cover
3D CAD data STEP Standard model
SN:with Chassis and cover
IGES Standard model
SN:with Chassis and cover

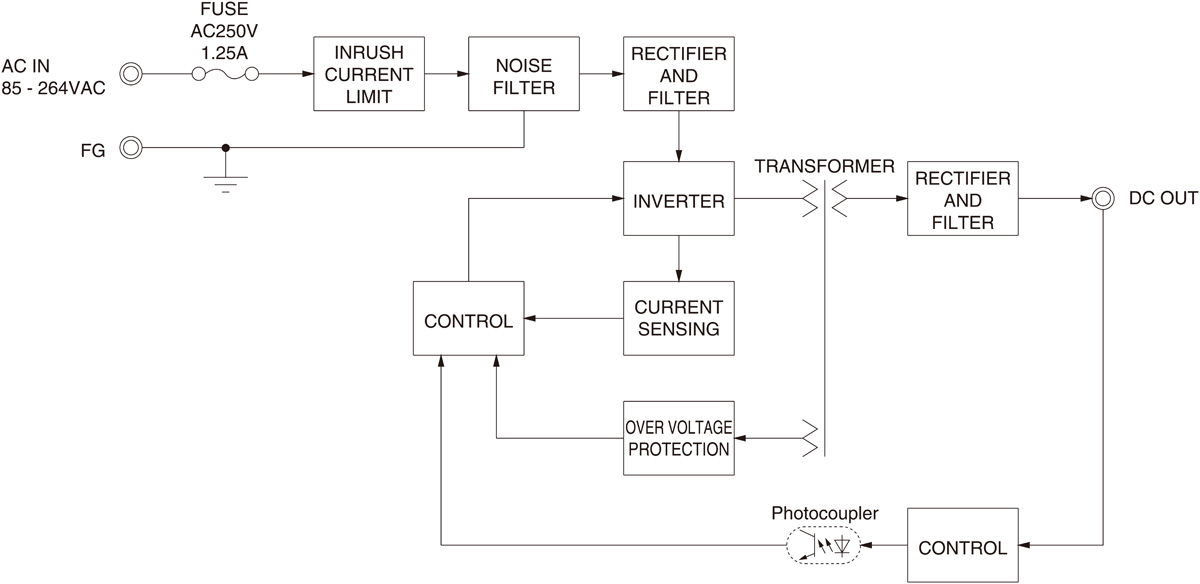

Block diagram

/tool/tag/fig/e_blo_lha10f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • EAC-03-472

    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 3A
    General purpose
    Compact size
    Attenuation type from 150kHz to 1MHz
    1-stage filter

LH(1)  A(2)  10(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  J4: EP (TE Connectivity) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model   SN：with chassis & cover

Data sheet download

LHA10F specifications (overview)

Product LHA10F-3R3-Y LHA10F-5 LHA10F-12 LHA10F-15 LHA10F-24
Input voltage AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ *
Output Wattage 6.6W 10.0W 10.8W 10.5W 12.0W
Voltage・Current 3.3V 2A 5V 2A 12V 0.9A 15V 0.7A 24V 0.5A
Voltage variable range 2.85 - 3.63V Fixed（"Y" option is available for adjusting output volatge between ±10%） Fixed（"Y" option is available for adjusting output volatge between ±10%） Fixed（"Y" option is available for adjusting output volatge between ±10%） Fixed（"Y" option is available for adjusting output volatge between ±10%）
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 50×21.5×62.5mm [1.97x0.85x2.46 inches]
Cooling method Convection/Forced air *
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
