Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 12V,24V,36V,48V
• Low profile
• Compact Open Frame construction
• Harmonic attenuator (Complies with IEC61000-3-2)
• Extensive optional parts such as dedicated harness are available
• Complies with SEMI F47
• An option "-R2" with reduced standby power is available when the remote control is off
• EN62477-1(OVC Ⅲ)
Free warranty period 5-year (Refer to Instruction Manuals)

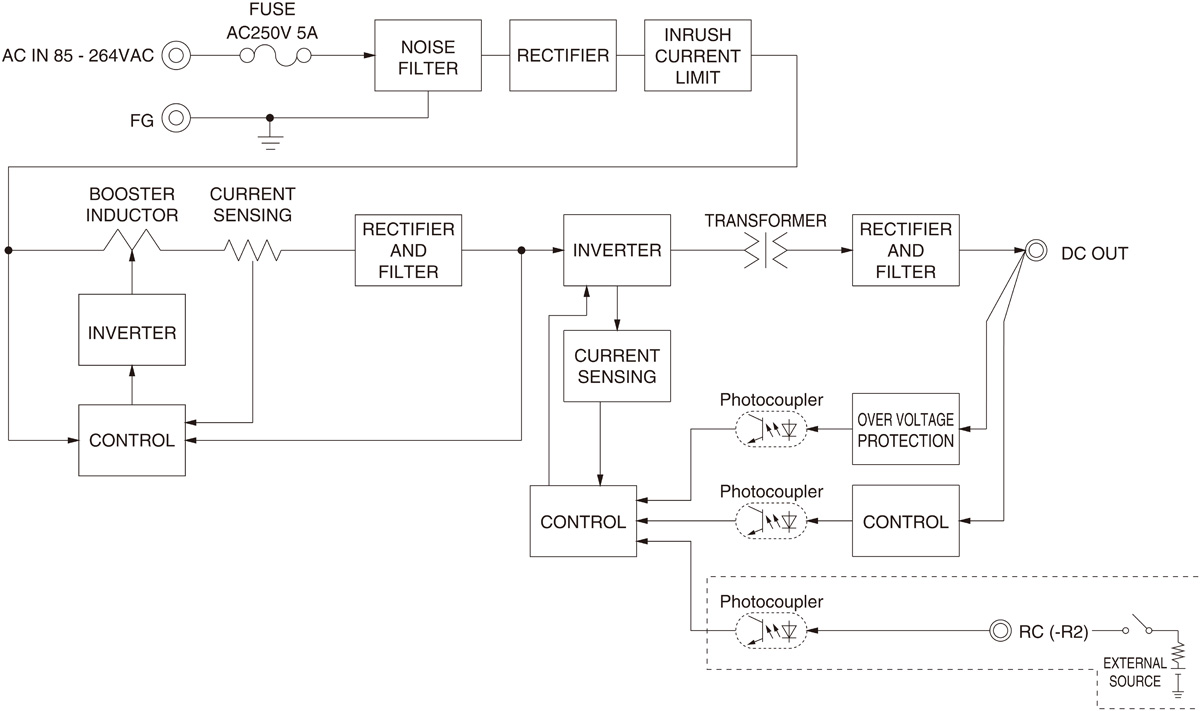

Standard open-frame power supply
Featuring an exclusive zero-voltage switching design for low noise and superior efficiency.
Up to 50% smaller than previous models, offering greater design flexibility and a reduced environmental footprint.
LHA150F/300F complies with EN62477-1 OVCⅢ, enabling compact and lightweight designs.
Harness
| Type | Model number | Description | DXF | |
|---|---|---|---|---|
| External Capacitor unit | ||||
| CR-HUT241-1 | External capacitor unit to extend Hold-up time. (Capacitance : 240uF) |
PDF download | - | |
| CR-HUT721-1 | External capacitor unit to extend Hold-up time. (Capacitance : 720uF) |
PDF download | - | |
| CR-HUT282-2 | External capacitor unit to extend Hold-up time. (Capacitance : 2,800uF) |
PDF download | - | |
| CR-HUT502-2 | External capacitor unit to extend Hold-up time. (Capacitance : 5,040uF) |
PDF download | - | |
| Harness | ||||
| H-IN-5 | Mating harness for input of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-IN-10 | Mating harness for input of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-IN-12 | Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics) | PDF download | - | |
| H-IN-25 | Mating harness for connecting the external capacitor unit. | PDF download | - | |
| H-OU-18 | Mating harness for output of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-OU-29 | Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics) | PDF download | - | |
| H-RC-1 | Harness for using option : -R. | PDF download | - |
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model
SN:with Chassis and cover |
|---|---|---|
| 3D CAD data | STEP |
Standard model
SN:with Chassis and cover |
| IGES |
Standard model
SN:with Chassis and cover |
Single phase 250VAC 3A
General purpose
Compact size
Attenuation type from 150kHz to 1MHz
1-stage filter
LH(1) A(2) 150(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
J4: EP (TE Connectivity) connector type
R2: with Remote ON/OFF
S: with Chassis
SN: with Chassis & cover
U1: Can be attached the external capacitor unit
Y: with Potentiometer
Please refer to Instruction manual 6.
3D product images are available.
Read Me First
Standard model SN：with chassis & cover
* For further information and how to use, please see in Cosel product catalog.
