LHPseries

LHP150F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • EN62477-1 (Overvoltage category Ⅲ)
  • Complies with DEN-AN*
  • RoHS
    UL・C-UL
    TUV
    DEMKO
    CE
    UKCA

Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 24V,30V,36V,42V,48V

• High power & high peak power
• Compact Open Frame construction
• EN62477-1(OVC Ⅲ)
• Complies with SEMI F47
• An option "-R2" and "-R5" with reduced standby power is available when the remote control is off

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the LHP series?

Open-frame power supply with peak output capability.
Perfect for applications with high inrush currents such as motors and amplifiers.
Complies with EN62477-1 OVCⅢ for direct wiring to distribution panels, making it ideal for compact and lightweight designs.

Technical features

  • Peak Power
  • Low profile
  • T: Terminal Block type

Harness

Type Model number Description PDF DXF
External Capacitor unit
CR-HUT241-1 External capacitor unit to extend Hold-up time.
(Capacitance : 240uF)		 PDF download -
CR-HUT721-1 External capacitor unit to extend Hold-up time.
(Capacitance : 720uF)		 PDF download -
CR-HUT282-2 External capacitor unit to extend Hold-up time.
(Capacitance : 2,800uF)		 PDF download -
CR-HUT502-2 External capacitor unit to extend Hold-up time.
(Capacitance : 5,040uF)		 PDF download -
Harness
H-IN-5 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-10 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-12 Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics) PDF download -
H-IN-25 Mating harness for connecting the external capacitor unit. PDF download -
H-OU-18 Mating harness for output of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-OU-29 Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics) PDF download -
H-RC-1 Harness for using option : -R. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
SN:with Chassis and cover
3D CAD data STEP Standard Model
SN:with Chassis and cover
IGES Standard model
SN:with Chassis and cover

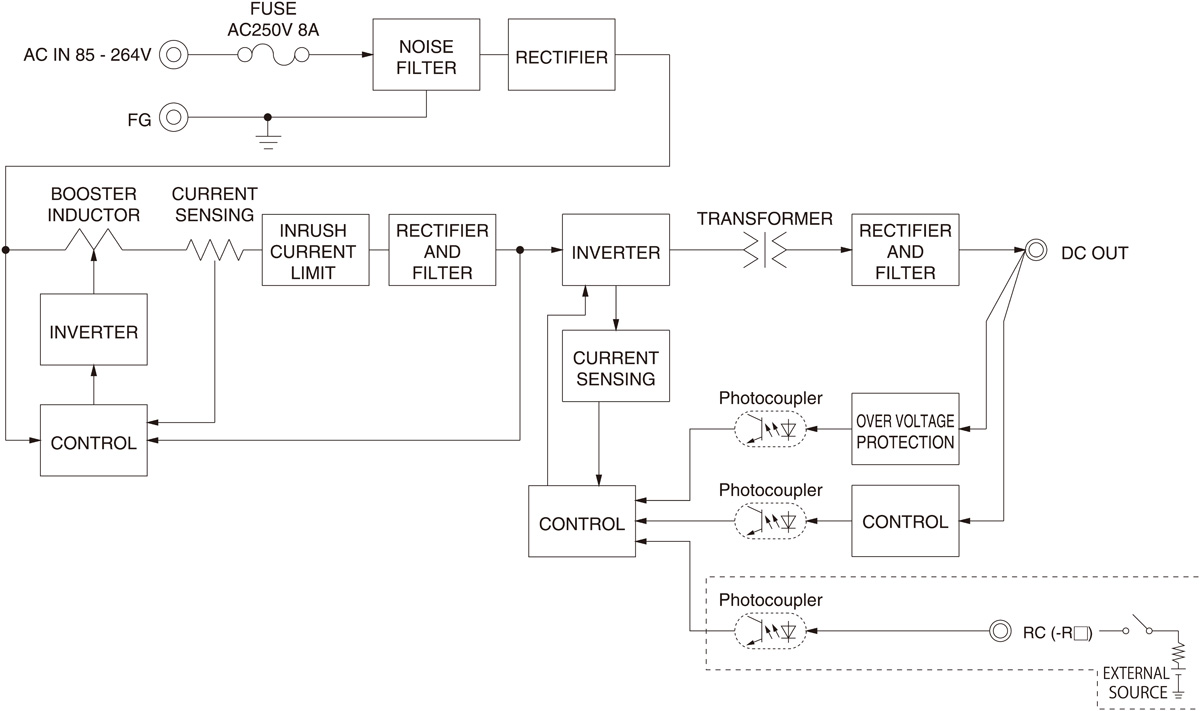

Block diagram

/tool/tag/fig/e_blo_lhp150f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • EAC-03-472

    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 3A
    General purpose
    Compact size
    Attenuation type from 150kHz to 1MHz
    1-stage filter

LH(1)  P(2)  150(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE Connectivity) connector type
  R☐: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Terminal block style
  T4: Push-in Terminal block type
  T5: UL508
  U1: Can be attached the external capacitor unit
  DC: DC input

Please refer to Instruction manual 7.
3D product images are available.

Read Me First
Standard model   SN：with chassis & cover   T4：Push-inTerminal block type

Data sheet download

LHP150F specifications (overview)

Product LHP150F-24-Y LHP150F-30-Y LHP150F-36-Y LHP150F-42-Y LHP150F-48-Y
Input voltage 85 - 264VAC 1Φ * 85 - 264VAC 1Φ * 85 - 264VAC 1Φ * 85 - 264VAC 1Φ * 85 - 264VAC 1Φ *
Output Wattage 151.2W(302.4W) 150.0W(300.0W) 151.2W(302.4W) 151.2W(302.4W) 153.6W(307.2W)
Voltage・Current 24V 6.3A(Peak:12.6A) 30V 5.0A(Peak：10.0A） 36V 4.2A（Peak：8.4A） 42V 3.6A（Peak：7.2A） 48V 3.2A（Peak：6.4A）
Voltage variable range 22.80 - 26.40V 28.50 - 33.00V 34.20 - 39.60V 39.90 - 46.20V 45.60 - 52.80V
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1, EN62477-1 (Overvoltage category Ⅲ), Complies with DEN-AN*
Structure External dimensions (W×H×D) 75x27x160mm [2.95x1.07x6.30 inches]
Cooling method Convection/Forced air *
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
