LHPseries
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 24V,30V,36V,42V,48V
• High power & high peak power
• Compact Open Frame construction
• EN62477-1(OVC Ⅲ)
• Complies with SEMI F47
• An option "-R2" and "-R5" with reduced standby power is available when the remote control is off
Free warranty period 5-year (Refer to Instruction Manuals)

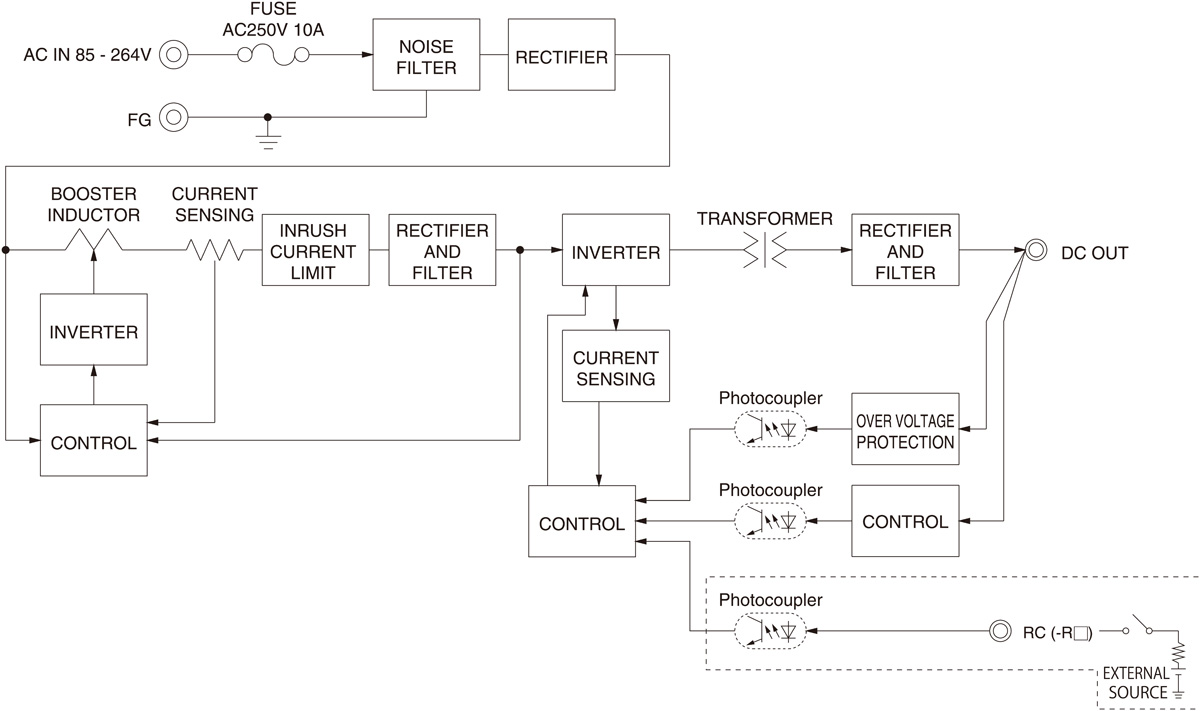

Open-frame power supply with peak output capability.
Perfect for applications with high inrush currents such as motors and amplifiers.
Complies with EN62477-1 OVCⅢ for direct wiring to distribution panels, making it ideal for compact and lightweight designs.
Harness
| Type | Model number | Description | DXF | |
|---|---|---|---|---|
| External Capacitor unit | ||||
| CR-HUT241-1 | External capacitor unit to extend Hold-up time. (Capacitance : 240uF) |
PDF download | - | |
| CR-HUT721-1 | External capacitor unit to extend Hold-up time. (Capacitance : 720uF) |
PDF download | - | |
| CR-HUT282-2 | External capacitor unit to extend Hold-up time. (Capacitance : 2,800uF) |
PDF download | - | |
| CR-HUT502-2 | External capacitor unit to extend Hold-up time. (Capacitance : 5,040uF) |
PDF download | - | |
| Harness | ||||
| H-IN-5 | Mating harness for input of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-IN-10 | Mating harness for input of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-IN-12 | Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics) | PDF download | - | |
| H-IN-25 | Mating harness for connecting the external capacitor unit. | PDF download | - | |
| H-OU-10 | Mating harness for output with J option. (Mfr : J.S.T.) | PDF download | - | |
| H-OU-46 | Mating harness for output of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-OU-47 | Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics) | PDF download | - | |
| H-OU-54 | Mating harness for output with J option. (Mfr : J.S.T.) | PDF download | - | |
| H-RC-1 | Harness for using option : -R. | PDF download | - |
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model
SN:with Chassis and cover |
|---|---|---|
| 3D CAD data | STEP |
Standard Model
SN:with Chassis and cover |
| IGES |
Standard model
SN:with Chassis and cover |
Single phase 250VAC 6A
General purpose
Compact size
Attenuation type from 150kHz to 1MHz
1-stage filter
LH(1) P(2) 300(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
J4: EP (TE Connectivity) connector type
J5: 8 pin type(Output connector)
R☐: with Remote ON/OFF
S: with Chassis
SN: with Chassis & cover
T: Terminal block style
T4: Push-in Terminal block type
T5: UL508
U1: Can be attached the external capacitor unit
DC: DC input
Please refer to Instruction manual 7.
3D product images are available.
Read Me First
Standard model SN：with chassis & cover T4：Push-inTerminal block type
* For further information and how to use, please see in Cosel product catalog.
