LMAseries

LMA240F

  • Active
  • ANSI/AAMI ES60601-1
  • EN60601-1 3rd
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 240W
Rated Output Voltage: 24V

• Compact Open Frame construction
• Harmonic attenuator (Complies with IEC61000-3-2 ClassA)
• Peak Current Function (Option -H)
• Remote ON/OFF control (Optional -R2) reducing standby power

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

  • Adjustable Output Voltage
  • Remote Control

Harness

Type Model number Description PDF DXF
Harness
H-IN-5 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-10 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-12 Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics) PDF download -
H-OU-11 Mating harness for output of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-OU-12 Mating harness for output of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-OU-31 Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics) PDF download -
H-OU-32 Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics) PDF download -
H-RC-1 Harness for using option : -R. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model (includes SN option)
3D CAD data STEP Standard model
IGES Standard model

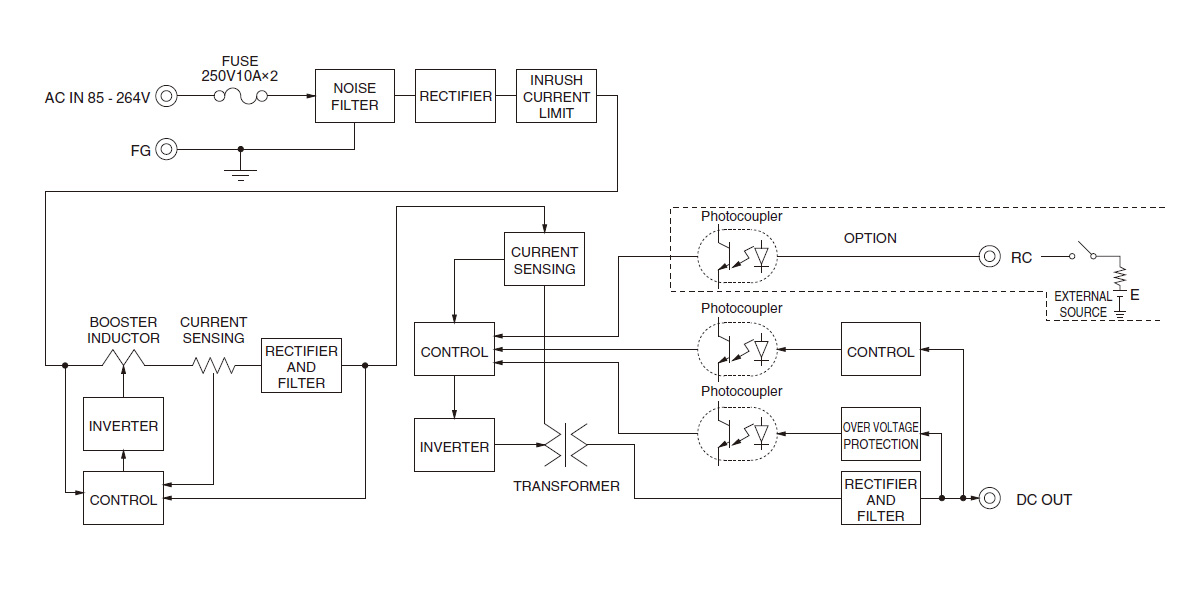

Block diagram

/tool/tag/fig/e_blo_lma240f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAM-06-101

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC　6A
    Low leakage current type
    1-stage filter

LM(1)  A(2)  240(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 C: with Coating
 G: Low leakage current
 H: with the function to be acceptable to output peak current
 J1: VH (J.S.T.) connector type
 R: with Remote ON/OFF
 R2: with Remote ON/OFF
 S: with Chassis
 SN: with Chassis & cover
 P: Setting in the overcurrent protection rating

Data sheet download

LMA240F specifications (overview)

Product LMA240F-24-Y LMA240F-24-HY
Input voltage AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Wattage 300W 300W (480W) *
Voltage・Current 24V 10A Convection Cooling
24V 12.5A Forced Air Cooling		 24V 10A (Peak: 20A) Convection Cooling
24V 12.5A (Peak: 20A) Forced Air Cooling
Voltage variable range 19.20 - 27.50V 19.20 - 27.50V
Applicable standards Safety Certifications ANSI/AAMI ES60601-1, EN60601-1 3rd
Structure External dimensions (W×H×D) 84x46x180mm [3.31x1.81x7.09 inches]
Cooling method Convection/Forced air *
Technical data Characteristic data -
Estimated life data -
EMC data -
Reliability
MTBF -

* For further information and how to use, please see in Cosel product catalog.
